4.5 Inch Lift Kit | 2007-2013 Chevy Silverado & GMC Sierra 1500 4WD | Strut Spacer / FOX Adventure Series Shocks | Zone Offroad

This configuration uses a crossmember and strut spacer up front (4.5" front lift) paired with FOX 2.0 Adventure Series rear shocks. The FOX Adventure Series features an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

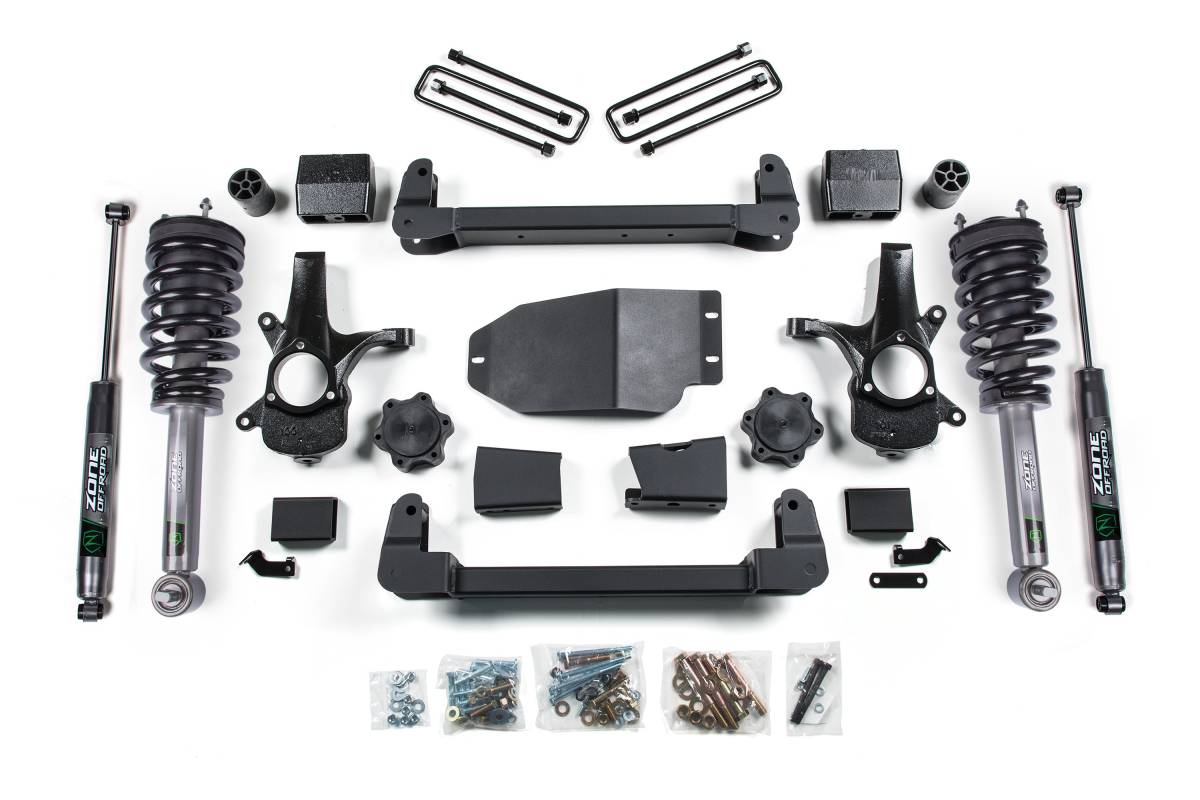

The Zone Offroad 4.5-inch lift kit for the 2007–2013 Chevy Silverado and GMC Sierra 1500 4WD is engineered to improve stance, performance, and capability while providing clearance for up to 33-inch tires. The kit utilizes Zone's high-clearance design to increase ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling at the new ride height.

Up front, the kit incorporates high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. CNC-machined ductile iron steering knuckles correct steering geometry at the taller ride height and are designed to work with factory tie rod ends to maintain steering angles and ESC compatibility. Additional front components include sway bar drops, bump stop extensions, brake line brackets, and CV spacers. In the rear, a replacement lift block installs in place of the stock block to lift and level the stance while retaining ride quality and load capacity, along with new u-bolts and brake line brackets.

Features

• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX Adventure Series IFP gas rear shocks available for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4–5.5 inches
• Rear Lift Method: Block replacement
• Rear Lift Height: 3 inches
• Shocks Included: Yes
• Crossmember material: Heavy duty laser cut steel, 1/4-inch thick high-arch design
• Steering knuckles: CNC-machined ductile cast iron
• Tire clearance: Up to 33 inches

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Cut-off wheel or equivalent, reciprocating saw, strut compressor, welding equipment

Important Notes

• This system will not fit 2007 classic models.
• Requires frame bracket modification.
• 20-inch wheels with 5-inch to 5-3/4-inch backspacing recommended to reduce trimming.
• Will not fit two-mode hybrid models with electronic power steering.
• Stock 20-inch wheels can be re-installed only with factory tire size.
• Factory 17-inch and 18-inch wheels cannot be re-installed.
