6.5 Inch Lift Kit | 2007-2013 Chevy Silverado & GMC Sierra 1500 2WD | w/ FOX Adventure Series Shocks | Zone Offroad

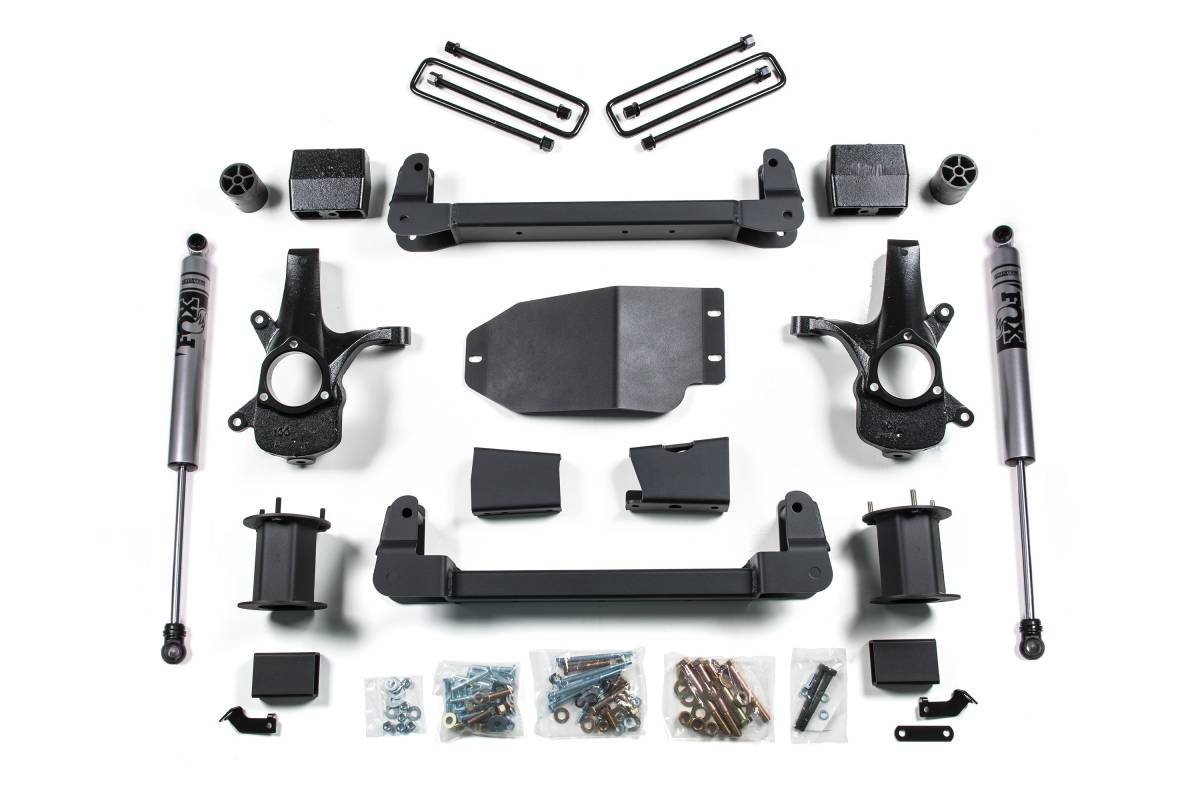

Configured with FOX Adventure Series IFP shocks for the rear. These monotube shocks feature a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish for improved ride quality and off-road performance.

Overview

The Zone Offroad 6.5-inch lift kit is engineered for 2007–2013 Chevy Silverado and GMC Sierra 1500 2WD trucks, providing improved stance, ground clearance, and off-road capability with clearance for up to 33-inch tires. The kit takes advantage of Zone's high-clearance design to improve strength and off-road protection while correcting suspension and steering geometry for proper on-road handling.

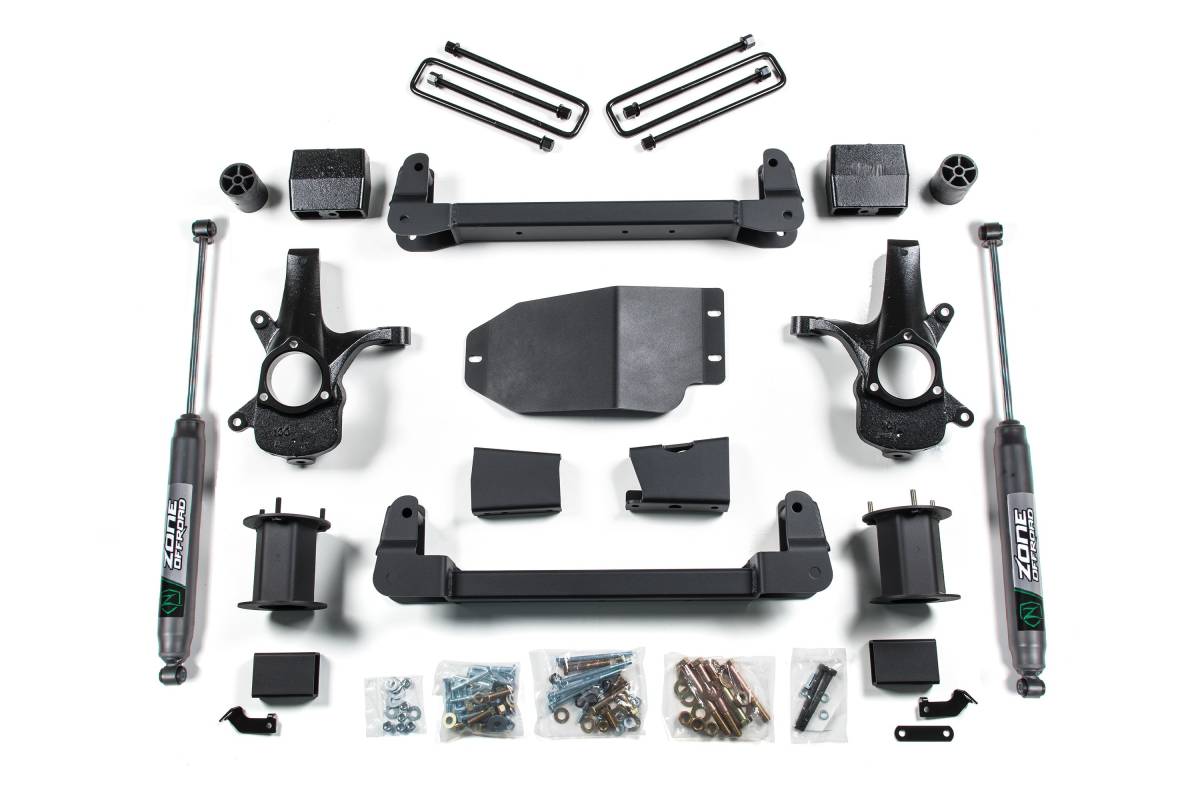

Up front, the kit uses full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, and heavy duty skid plates. CNC-machined ductile iron steering knuckles correct steering geometry at the new ride height and maintain ESC compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware are also included. In the rear, a replacement lift block installs in place of the stock block to lift and level the stance while retaining ride quality and load capacity, complemented by new U-bolts, brake line brackets, and rear shocks.

Features

• High-clearance crossmember design maximizes ground clearance
• Heavy duty laser-cut steel crossmembers for precise fit and strength
• HD skid plate system bolts together to form a rigid subframe with added off-road protection
• CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compliance
• Works with factory tie rod ends to maintain proper steering angles
• Rear replacement lift block retains ride quality and load capacity
• Factory Protection Plus drivetrain warranty included

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 6.5"
• Rear Lift Method: Block
• Rear Lift Height: 4"
• Total Lift Height Range: 6–7.5"
• Shocks Included: Yes
• Tire Clearance: Up to 33"
• Crossmember material: 1/4-inch thick steel (high-arched, laser-cut)

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Cut-Off Wheel or Equivalent, Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• This system will not fit 2007 classic models.
• Requires frame bracket modification.
• 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• Traction bars will not fit regular cab short box models.
• Will not fit two-mode hybrid models with electronic power steering.
• Stock 20" wheels can be re-installed only with factory tire size.
• Factory 17" and 18" wheels cannot be re-installed.
