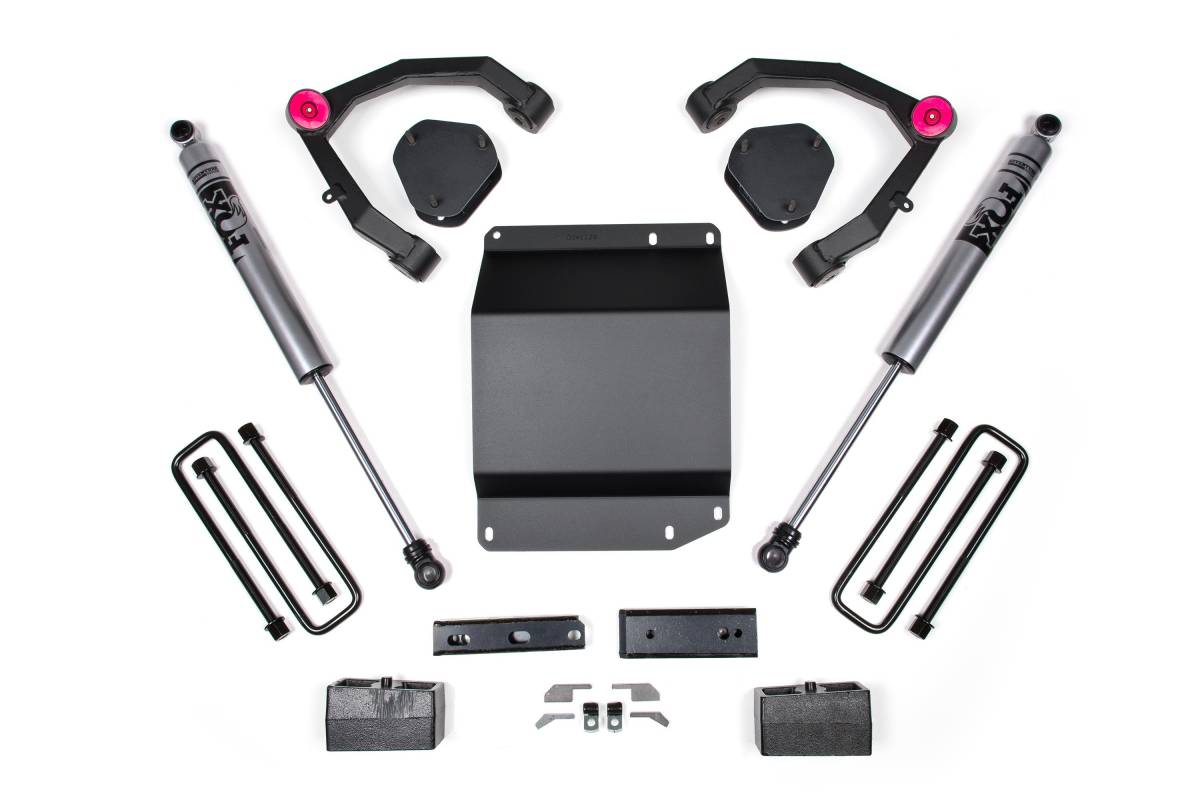

3.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (2007-2013) 4WD | w/ FOX Adventure Series Rear Shocks | Zone Offroad

Configured with FOX Adventure Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish with a 2-inch diameter steel body.

Overview

This lift kit is built around replacement upper control arms that dwarf factory components, constructed from fully-welded 1/8" steel plate with CNC-machined ball joint and bushing mounts to deliver significant gains in suspension travel. The arms use high-quality ball joints rated for heavy-duty use and work with stock-style rubber mount bushings for a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.

The included strut spacers provide a full 3.5" of front lift and install on the factory struts without requiring a strut compressor. A block and U-bolt system delivers 2" of rear lift for a level vehicle stance.

Features

• Fully welded, heavy-duty upper control arms (UCAs) that exceed factory arm dimensions
• CNC-machined UCA bushing and ball joint cups
• OE rubber bushings and greasable factory-style ball joints for quiet, reliable, low-maintenance operation
• Improved UCA range of motion compared to stock arms
• UCAs utilize replaceable ball joints and bushings
• Fully integrated front differential drop and skid plate for optimal driveline angles
• Strut spacers install on factory struts — no strut compressor required
• Block and U-bolt rear lift system

Specifications

• Front Lift Method: Strut Spacer
• Front Lift Height: 3.5"
• Rear Lift Method: Block
• Rear Lift Height: 2"
• Shocks Included: Yes
• UCA Material: Fully-welded 1/8" steel plate with CNC-machined mounts

Installation

• Estimated Time: 4–5 hours
• Difficulty: Moderate
• Special Tools Required: Cut-off Tool

Important Notes

Certain tire/wheel packages can fit with the addition of the provided weld-on steering stops. These are necessary for deeper backspaced wheels to maintain proper tire clearance to the new upper control arms. Minor frame and front differential trimming required — see installation instructions for details. Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999–06 models. WILL NOT FIT HYBRID MODELS.
