BDS 5.5 Inch Lift Kit | 2017-2023 Toyota Tacoma TRD Pro 4WD

Overview

The BDS 5.5-inch lift kit builds on the performance and capability of the 2017–2023 Toyota Tacoma TRD Pro by adding extra altitude to clear larger tires while correcting suspension, steering, and driveline geometry. Designed to retain the factory FOX internal bypass coilovers up front and FOX internal bypass shocks in the rear, this kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection.

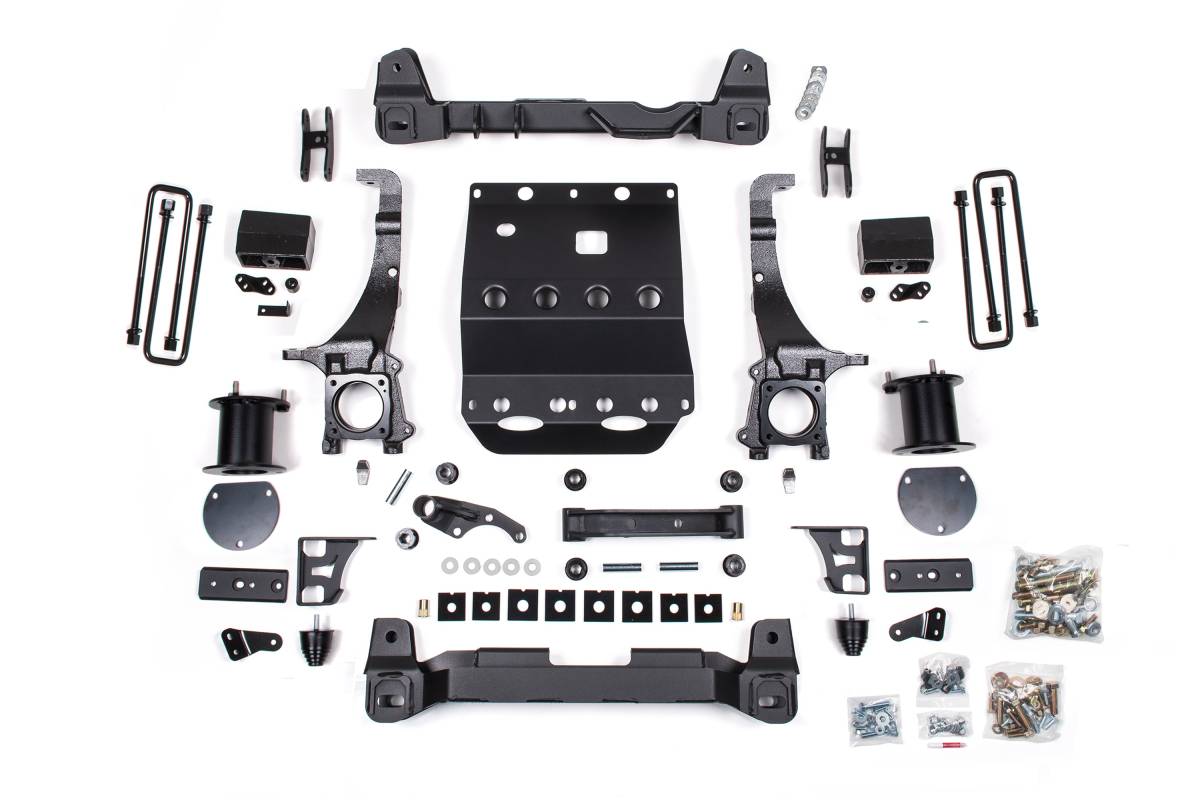

Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles that use factory tie rod ends for ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all necessary hardware are included for a comprehensive front suspension lift. In the rear, the kit uses heavy-duty cast steel lift blocks, a brake line bracket, longer U-bolts, and rear shock extensions designed to retain the factory FOX shocks.

Features

• Maintains factory FOX internal bypass shocks (front and rear)
• High-clearance crossmember design maximizes ground clearance
• Heavy-duty 1/4-inch thick laser-cut steel crossmembers paired with a front skid plate system that bolts together to create a rigid subframe
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance using factory tie rod ends
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Front Lift Method: Cross-Member
• Front Lift Height: 5.5"
• Rear Lift Method: Block
• Rear Lift Height: 4"
• Overall Lift Height Range: 4"–5.5"
• Shocks Included: No

Installation

• Estimated Installation Time: 6–8 hours
• Installation Difficulty: Moderate
• Special Tools Required: Grinder/Sanding Disc, Reciprocating Saw

Important Notes

• Minor welding required
• Requires frame bracket modification
• Stock wheels cannot be reinstalled
• Cannot use 17" wheels
