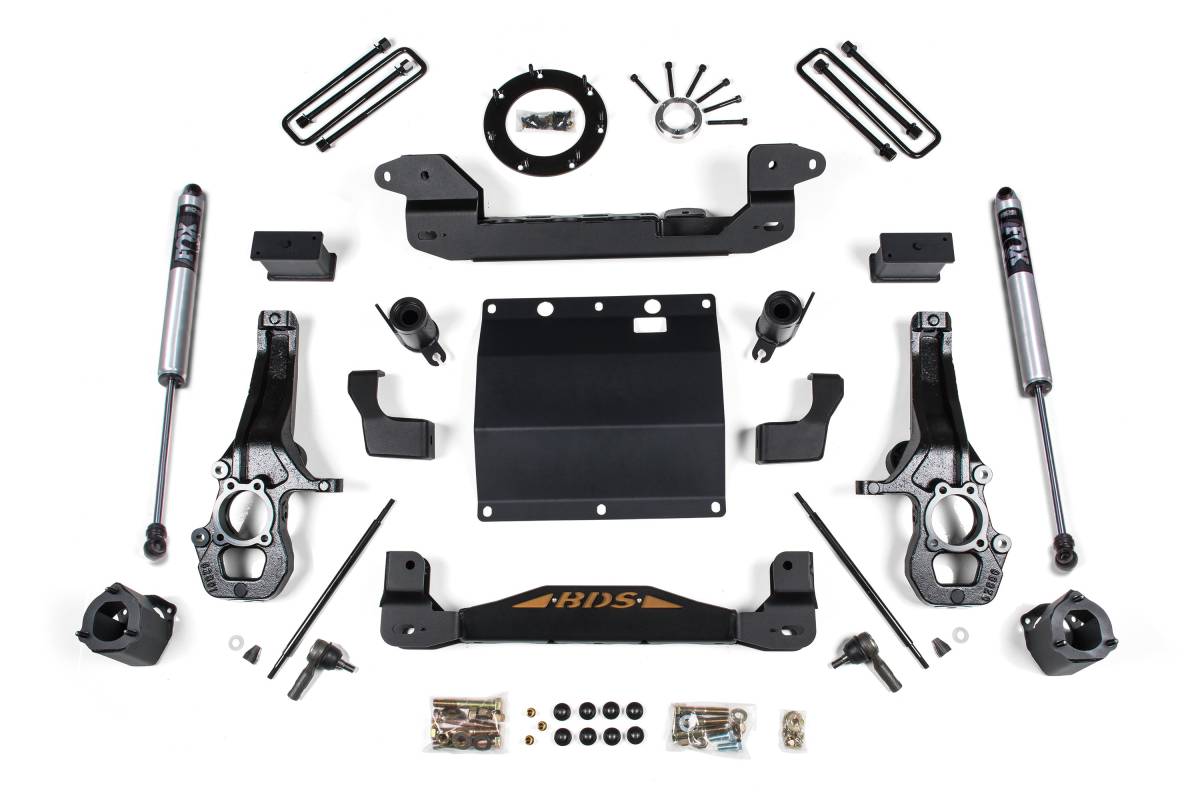

BDS 5.5 Inch Lift Kit | Chevy Colorado & GMC Canyon (2015-2022) 4WD | w/ FOX 2.0 Performance Series Shocks

Configured with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 5.5-inch suspension lift kit by BDS is designed for 2015–2022 Chevy Colorado and GMC Canyon 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. It utilizes a high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling.

Up front, the kit includes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, and heavy duty skid plates. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Additional front components include sway bar links, bump stop extensions, CV spacers, and all necessary hardware.

In the rear, a heavy duty fabricated lift block replaces the stock block to lift and level the stance while retaining ride quality and load capacity. New U-bolts and precision-tuned rear shocks complete the rear suspension upgrade.

Features

• High-clearance crossmember design maximizes ground clearance using 1/4-inch thick laser-cut steel
• Front skid plate system bolts together to create a rigid subframe with added off-road protection
• CNC-machined ductile cast iron steering knuckles correct geometry at the new ride height
• Replacement tie rod ends maintain steering angles for proper function and ESC system compatibility
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Heavy duty fabricated rear lift block retains ride quality and load capacity
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 5.5 inches (C/O kit actual ride height is closer to 6 inches)
• Front: Top-mounted strut spacers with high-arched 1/4-inch thick steel crossmembers
• Rear: Heavy duty fabricated lift block with new U-bolts
• Tire Clearance: Up to 33 inches
• Recommended Wheels: Aftermarket 20-inch wheels with a maximum of 5.25-inch backspacing
• Steering Knuckles: CNC-machined ductile cast iron

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Cut-off wheel or equivalent, reciprocating saw, welding equipment

Important Notes

• Inner fender trimming is required.
• Minor welding is required.
• The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires. High-speed steering wheel feedback can occur.
• The actual ride height on C/O kits is closer to 6 inches of lift.
• Stock 17-inch and 18-inch wheels cannot be reinstalled with the lift kit.
• Aftermarket 20-inch wheels with a maximum of 5.25-inch backspacing are recommended. Certain wheel and tire combinations will require weld-on steering stops, which are included in the kit. See the end of the instruction sheet for details.
• Will not fit ZR2 models.
• Will fit diesel models.
