BDS 1 Inch Leveling Kit | FOX 2.0 Snap Ring Strut & HD Upper Control Arms | 2016-2023 Toyota Tacoma 4WD

Overview

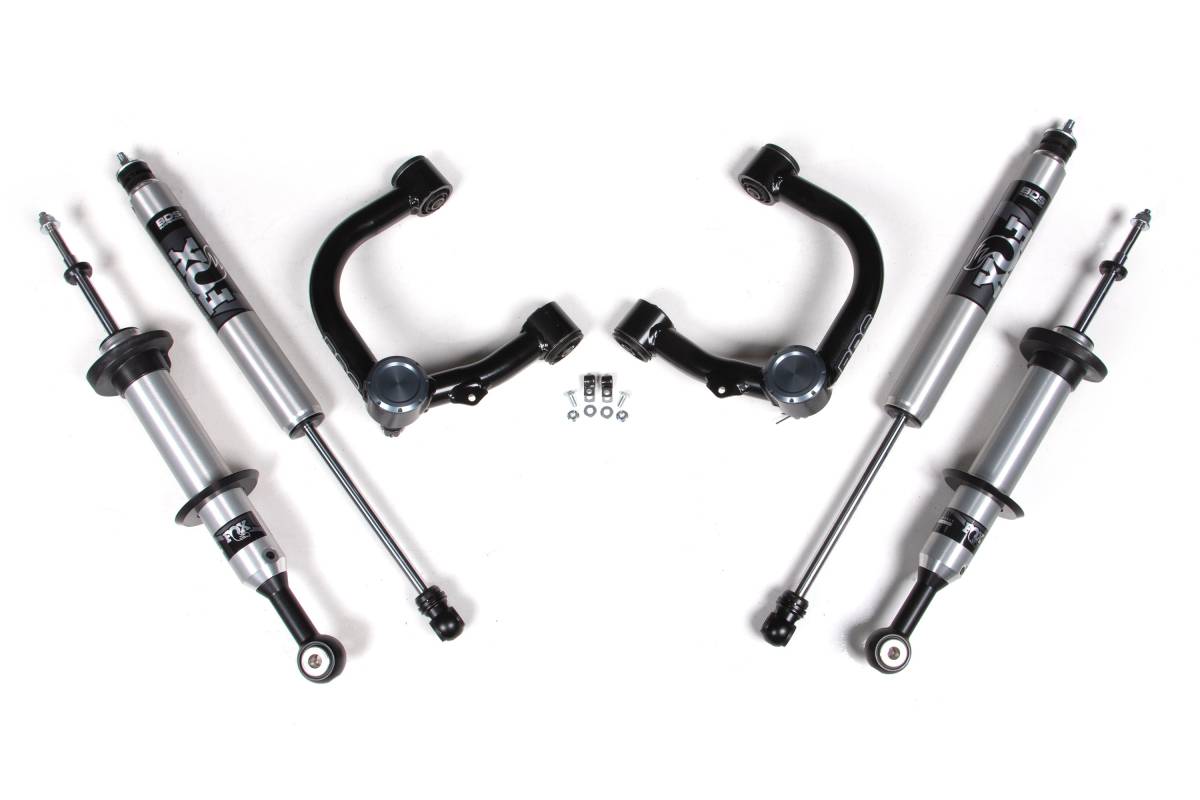

Upgrade your 2016–2023 Toyota Tacoma 4WD with this 1-inch leveling kit from BDS Suspension, featuring FOX 2.0 Snap Ring Struts and heavy-duty tubular upper control arms. Designed to improve stance, performance, and capability, the kit includes everything needed to level your truck while providing clearance for up to 32-inch tires. Up front, FOX 2.0 Performance Series strut shocks and HD tubular upper control arms deliver increased strength and travel. In the rear, a matching set of FOX 2.0 Performance shocks rounds out the setup for a smooth, balanced ride.

Features

• FOX 2.0 Performance Series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance upper control arms increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% bolt-on installation

FOX 2.0 Snap Ring Strut

• Mono-tube design with internal reservoir separates shock oil from the high-pressure, nitrogen-charged gas chamber
• Internal Floating Piston (IFP) eliminates oil aeration for maximum performance from factory-tuned, precision valving
• Custom-molded spring seat allows use of stock spring and mounting hardware
• Precision, impact-extruded 2-inch aluminum body — lightweight and rust resistant
• Three predetermined preload settings: 0, 1, or 2 inches of lift

HD Upper Control Arms

• 1.5-inch OD x .120-wall tubular construction for strength and durability
• Indexed ball joint cup corrects ball joint positioning for additional down travel and camber adjustment
• Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
• Greaseable ball joint at the outer end for smooth, quiet operation and superior durability
• Finished in durable black powder coat with billet aluminum dust cap

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 1 inch
• Rear Lift Method: Stock
• Rear Lift Height: 0 inches
• Lift Height Range: 0–1.5 inches
• Shocks Included: Yes

Installation

• Estimated Install Time: 3–4 hours
• Difficulty: Moderate
