BDS 1-2 Inch Leveling Kit | Performance Spring | Ford F250/F350 Super Duty (2017-2026) 4WD | w/ FOX 2.0 Performance Series Shocks

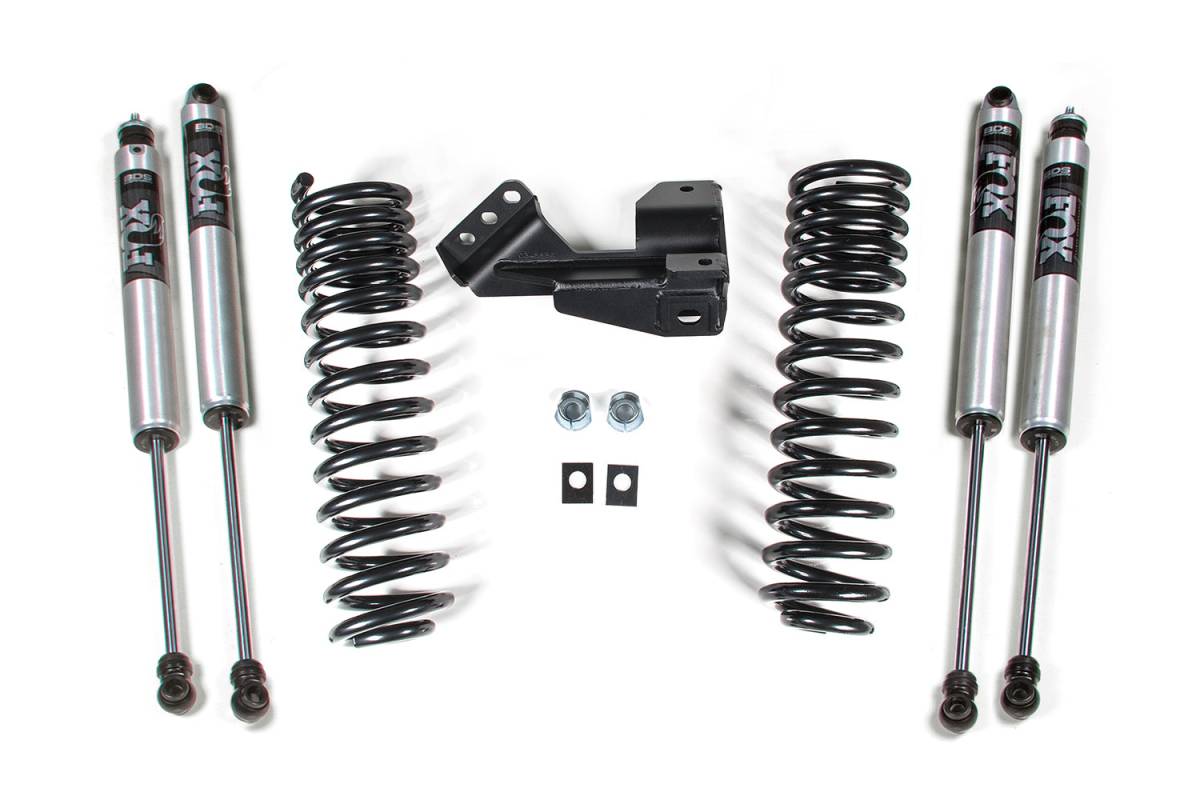

Configured with FOX 2.0 Performance Series monotube IFP shocks for maximum performance on and off-road. FOX 2.0 shocks feature:

• 2-inch impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Overview

This performance spring leveling kit from BDS Suspension is designed to level the stance of Ford F250 and F350 Super Duty trucks while improving performance and capability. The kit provides clearance for up to 35-inch tires and includes dual rate Pro-Ride coil springs, a heavy duty track bar relocation bracket for steering correction, and alignment cams. A choice of NX2 Nitro Series twin-tube gas shocks or FOX 2.0 Performance Series monotube IFP shocks allows further tuning of ride comfort and control.

Pro-Ride Coil Springs: A pair of full-length Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains. These dual rate springs use a softer initial spring rate than factory for improved on-road comfort, along with a higher secondary spring rate for stability and performance in harsh conditions.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for smooth ride on any terrain
• Heavy duty track bar relocation bracket designed to recenter the front axle
• Alignment cams included for proper steering geometry correction

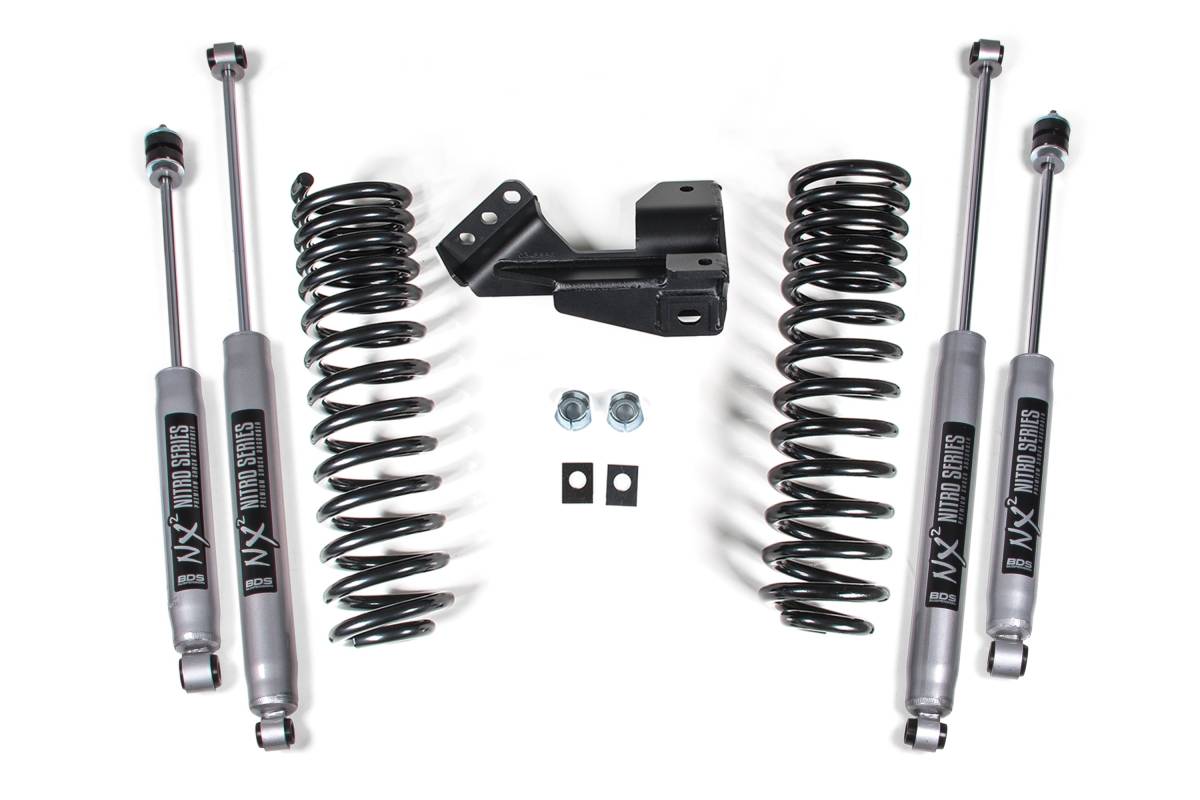

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
• Clearance for up to 35-inch tires

Specifications

• Lift Height: 1 inch (2017–2019 models); 2 inches (2020–2026 models)
• Includes: Pro-Ride dual rate coil springs, track bar relocation bracket, alignment cams, shocks (per selected option)
• Application: Ford F250/F350 Super Duty 4WD
• Compatible with diesel and gas engine models (gas models will achieve approximately 1/2 inch more ride height)

Installation

• Estimated Time: 4 hours
• Difficulty: Moderately Easy
• Tools Required: 30mm Socket

Important Notes

2017–2019 models net 1 inch of lift height; requires an additional 1-inch coil spring spacer to sit level. 2020–2025 models net 2 inches. Kit designed for diesel models; gas models will achieve approximately 1/2 inch more ride height.

2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with a non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional information.

Vehicles with radius arm mounted ride height sensors will require BDS123303.

2023+ Models: Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
