Configured with FOX 2.5 Coil-Overs — 2.5-inch smooth bore zinc-plated seamless steel body, black-anodized CNC-machined 6061-T6 billet aluminum, application-specific adjustable 3.0 Eibach® racing springs, 7/8-inch hard chrome-plated steel shafts, and application-specific valving to maximize performance.
Overview

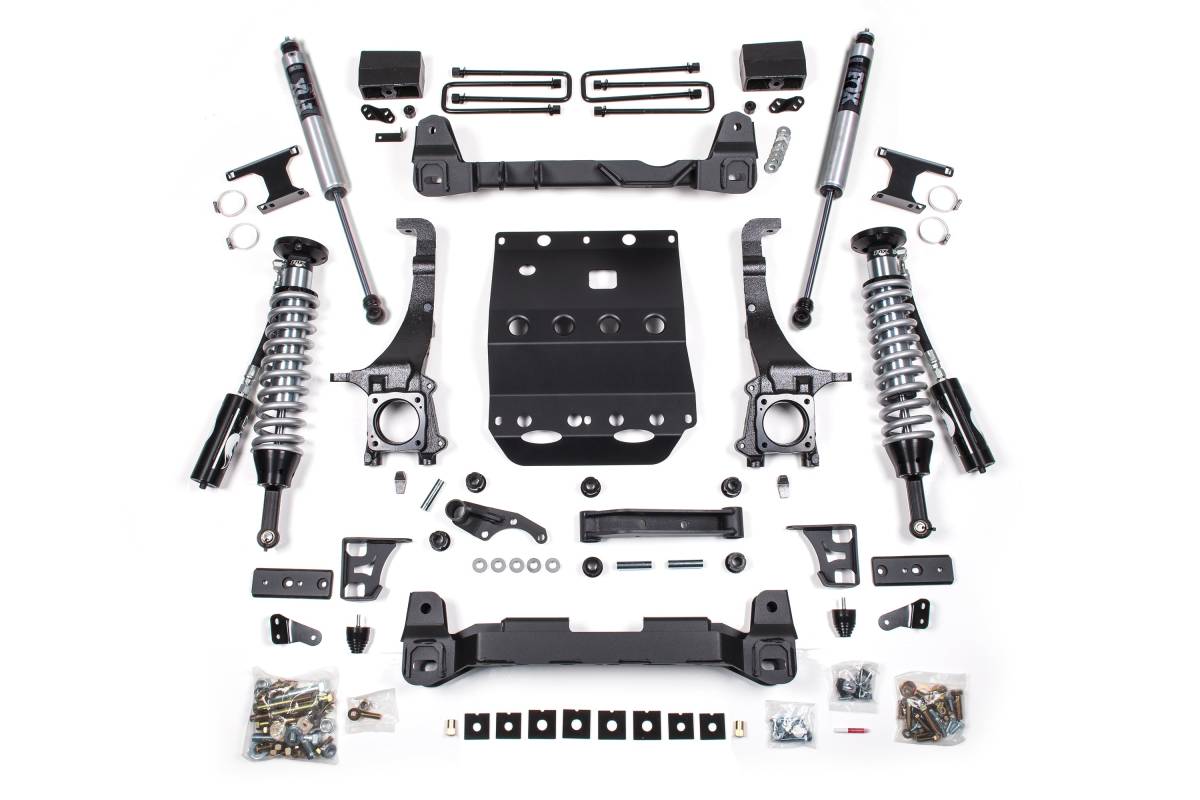

This 6-inch suspension lift kit for the 2016–2023 Toyota Tacoma 4WD is built by BDS Suspension around proprietary FOX 2.5 coil-over shocks designed to bolt on increased travel and the ability to soak up rough terrain while maintaining smooth on-road comfort. The kit improves stance, performance, and capability and includes everything necessary to achieve clearance for up to 35-inch tires.
Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, and heavy-duty skid plates for off-road protection. CNC-machined ductile iron steering knuckles using factory tie rod ends correct steering geometry at the new ride height while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all required hardware are also included. In the rear, heavy-duty cast steel lift blocks, brake line brackets, and longer U-bolts are paired with FOX 2.0 IFP performance series gas shocks for improved damper performance.
FOX 2.5 coil-overs include a remote reservoir for additional fluid capacity to keep shocks running cool under demanding conditions. An optional DSC (Dual Speed Compression) adjuster variant is available to tune both high-speed and low-speed compression damping for on-road and off-road use.
Features
- FOX 2.5 Factory Race Series coil-overs for improved ride quality, performance, and capability
- High-clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Heavy-duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX 2.0 Performance Series IFP gas rear shocks for improved ride and off-road performance
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift height: 6 inches
- Front: Top-mounted strut spacers, 1/4-inch thick laser-cut high-clearance steel crossmembers, CNC-machined ductile iron steering knuckles, HD front skid plate system
- Rear: Cast steel lift blocks, longer U-bolts, brake line brackets, FOX 2.0 IFP performance series gas shocks
- FOX 2.5 coil-over body: 2.5-inch smooth bore zinc-plated seamless steel
- Finish: Zinc-plated and double-clear coated for long-lasting durability
- Coil-over upper: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Springs: Application-specific adjustable 3.0 Eibach® racing springs
- Shaft: 7/8-inch hard chrome-plated steel
- Remote reservoir included for additional fluid capacity
- Tire clearance: Up to 35 inches (front wheel well modification required)
Installation
- Estimated Time: 6–8 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating saw, welding equipment, strut compressor
Important Notes
- Will not work on TRD Pro models
- Minor welding required
- Requires frame bracket modification
- Strut compressor required for installation
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Cannot use 17-inch wheels
- FOX Shocks required for 2013–2020 models
- Front wheel well modification is required to clear a 35-inch tire — see end of instruction sheet
