Configured with FOX 2.5 Performance Elite (PE) remote reservoir rear shocks to match the front coil-overs. Features a 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design separating shock oil from high-pressure nitrogen, DSC (Dual Speed Compression) adjuster for high-speed/low-speed compression tuning, and is fully serviceable for a lifetime of use.
Overview
The BDS 4-inch suspension lift kit for the 2016–2023 Toyota Tacoma 4WD pairs FOX 2.5 Performance Elite (PE) coil-overs up front with a choice of FOX 2.0 Performance Series or FOX 2.5 PE rear shocks. The kit is engineered to improve stance, performance, and capability while providing clearance for up to 33-inch tires. It features a high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for sound on-road handling.

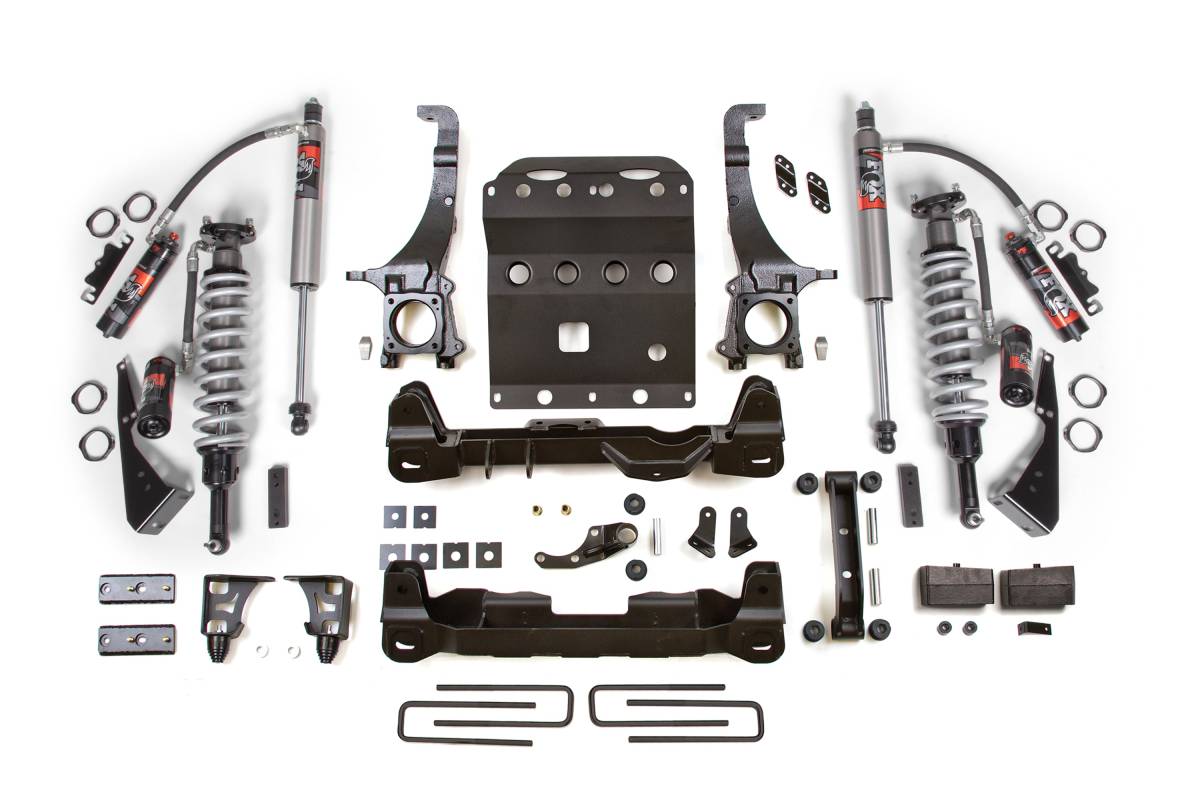

Up front, the FOX 2.5 PE coil-overs are paired with high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. CNC-machined ductile iron steering knuckles utilize factory tie rod ends to maintain ESC system compatibility. The kit also includes sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts, and all required hardware. In the rear, heavy-duty cast steel lift blocks, a brake line bracket, and longer U-bolts lift and level the stance without affecting load capacity.
Features
- FOX 2.5 Performance Elite series coil-overs up front with choice of FOX 2.0 Performance Series or FOX 2.5 PE rear shocks for improved ride quality, performance, and capability
- High-clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
- HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- No Fine Print Warranty included
- High-strength American steel construction with fully welded crossmembers
- Provides clearance for up to 33-inch tires
Specifications
- Lift Height: 4 inches
- Front Shocks: FOX 2.5 Performance Elite coil-overs with DSC (Dual Speed Compression) adjuster and external reservoir
- FOX 2.5 PE coil-over body diameter: 2.5 inches, impact extruded aluminum
- FOX 2.5 PE shaft: 7/8-inch hard chrome plated heat-treated alloy steel
- FOX 2.5 PE reservoir: External, separates shock oil from high-pressure nitrogen; fully serviceable
- FOX 2.0 IFP body diameter: 2-inch impact extruded aluminum, internal floating piston monotube design
- FOX 2.0 IFP shaft: 5/8-inch hard chrome plated heat-treated alloy steel
- FOX 2.0 IFP mounting ends: CNC machined 6061-T6 aluminum
- Crossmembers: High-arched, 1/4-inch thick steel, fully welded
- Rear lift method: Heavy-duty cast steel lift blocks with longer U-bolts
- FOX 2.5 PE Manufacturer's Warranty: 1 year
Installation
- Estimated Installation Time: 8–10 hours
- Installation Difficulty: Difficult
- Note: Minor welding required; frame bracket modification required
Important Notes
- Will not work on TRD Pro models
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Kit requires 18-inch or larger wheels; 17-inch wheels cannot be used
