BDS 4.5 Inch Lift Kit | 1987-1995 Jeep Wrangler YJ | Light Duty Leaf Springs

Light Duty Leaf Springs: Recommended for Jeep Wrangler YJ models running a soft top with either the stock spare tire or no spare. Not intended for additional weight beyond these configurations.

Overview

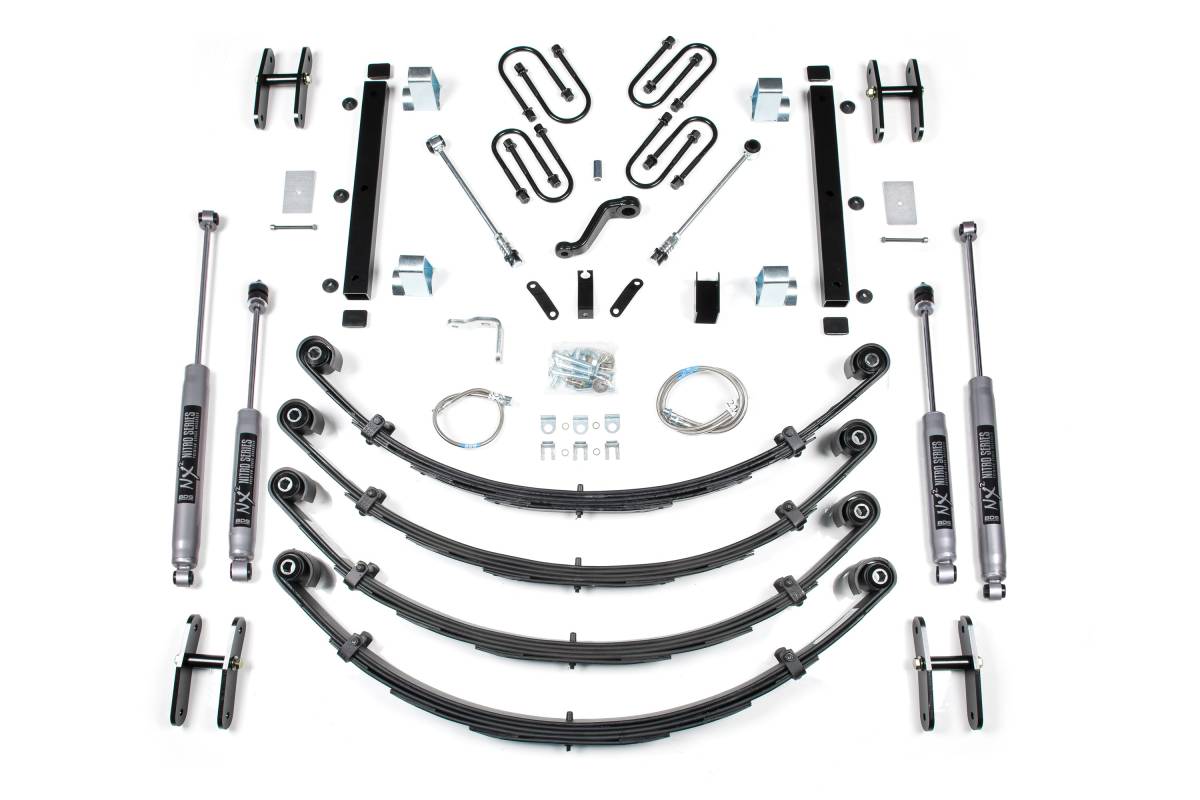

BDS Suspension has designed this 4.5-inch lift kit specifically for the 1987–1995 Jeep Wrangler YJ to improve stance, performance, and off-road capability. The kit provides clearance for up to 33-inch tires and includes all necessary components for a complete installation. Front and rear Glide-Ride leaf springs are paired with a transfer case drop kit, track bar relocation brackets, sway bar disconnects, stainless steel braided brake lines, bump stop extensions, extended shackles, a power steering pitman arm, and NX2 Nitro Series gas shocks tuned specifically for this vehicle.

Glide-Ride Leaf Springs

BDS Glide-Ride leaf springs use a multi-leaf progressive spring rate design with an exclusive triple-stage construction. Features include tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. This design delivers a smooth ride under varying loads while providing flexibility throughout the suspension cycle.

Features

• Glide-Ride leaf springs providing full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease driveline angles
• NX2 Nitro Series gas shocks with vehicle-specific valving for improved damper performance
• Stainless steel braided brake lines
• Sway bar disconnects
• Power steering pitman arm
• Bump stop extensions
• 1-inch extended shackles for increased spring flex
• New u-bolts included
• 100% bolt-on installation

Specifications

• Lift Height: 4.5 inches
• Tire Clearance: Up to 33 inches
• Vehicle Fitment: 1987–1995 Jeep Wrangler YJ
• Shock Type: NX2 Nitro Series gas shocks
• Brake Lines: Stainless steel braided
• Shackle Extension: 1 inch

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Torque wrench, brake fluid, floor jack and jack stands, pitman arm puller

Important Notes

• May require driveshaft lengthening if equipped with a 13-inch (u-joint to u-joint) driveshaft.
• May require a larger diameter driveshaft if equipped with a 41.5-inch front driveshaft.
• A slip yoke eliminator and dual cardan style rear driveshaft may be required to eliminate driveline vibration.
• If running a heavy configuration (e.g., hard top with full-size spare), front springs should be used on both the front and rear axle. This selection can be made in the customize section before checking out.
• Pitman arm will NOT fit YJ models equipped with manual steering.
