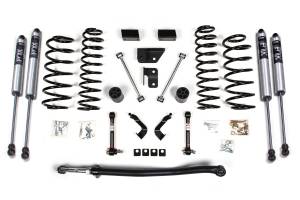

Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

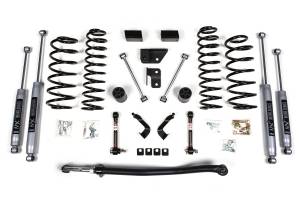

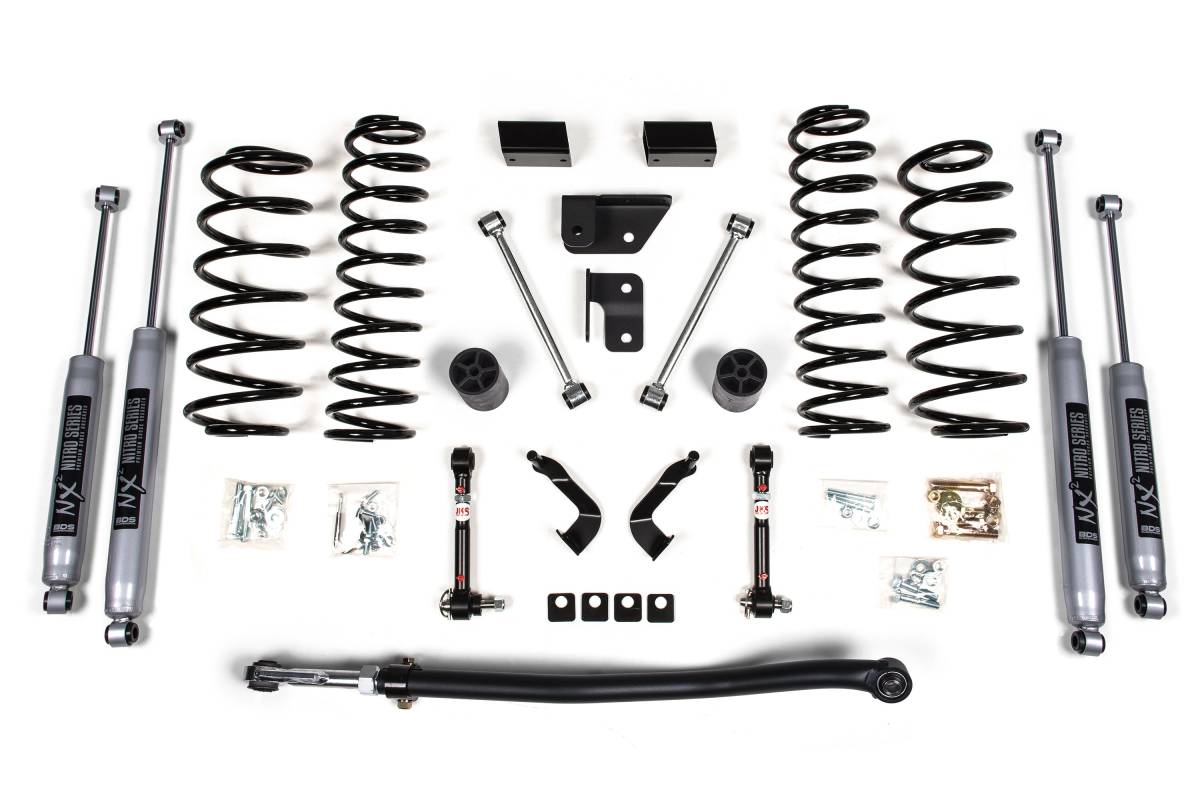

This 3-inch lift kit from BDS Suspension is designed to improve the stance and ride of the Jeep Wrangler JL 4-Door, providing clearance for up to 37-inch tires. The kit includes front and rear BDS Pro-Ride Coil Springs, a heavy-duty adjustable front track bar to re-center the front axle, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to maximize front suspension flex while maintaining quiet on-road operation, rear sway bar links, and a choice of specially tuned shocks for improved damper performance.
The Pro-Ride Coil Springs are full-length, gas-specific, progressive-rate units manufactured from high-tensile steel with properly sized wire diameters for maximum reliability without premature coil bind. The HD Adjustable Track Bar is built from 1-3/8-inch solid steel stock, comes pre-assembled with bushings, and bolts directly into the factory mounting points.
Features
- Pro-Ride coil springs for improved ride quality and increased articulation
- JKS sway bar quicker disconnects and extended rear links for improved off-road flex
- Front HD adjustable track bar to correctly position the front axle and control lateral movement
- Rear track bar bracket to reposition the rear axle under the vehicle
- Front lower cam locks to correct caster for proper alignment
- Choice of NX2 Nitro Series gas shocks or FOX 2.0 / 2.5 Performance Series shocks for improved damping
- Provides clearance for up to 37-inch tires
- Bump stop extensions included
Specifications
- Lift Height: 3 inches
- Tire Clearance: Up to 37 inches
- Track Bar Material: 1-3/8-inch solid steel stock
- Spring Type: Progressive-rate Pro-Ride coil springs, high-tensile steel
- Shock Options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Series
Installation
- Estimated Time: 5.5 hours
- Difficulty: Moderate
- Tools Required: Cut Off Wheel or Equivalent, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands
Important Notes
- Full bump clearance. Rubbing can occur under full articulation.
- Non-Rubicon models come from the factory at a lower ride height, which will net slightly more lift; final stance is the same for all models.
- Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
- Will not fit 4xe models.
- Will not fit Rubicon 392 models.
- Does not fit Diesel models.
