BDS 3 Inch Lift Kit | Jeep Wrangler JL (2018-2026) 4-Door | w/ FOX 2.5 Performance Series Shocks

Configured with FOX 2.5 Performance Series shocks featuring a 2.5-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, increased oil capacity for greater heat dissipation, reduced damping fade and improved bottom-out control at higher speeds, fully serviceable construction resistant to corrosion and harsh environments, and a 1-year Manufacturer's Warranty.

Overview

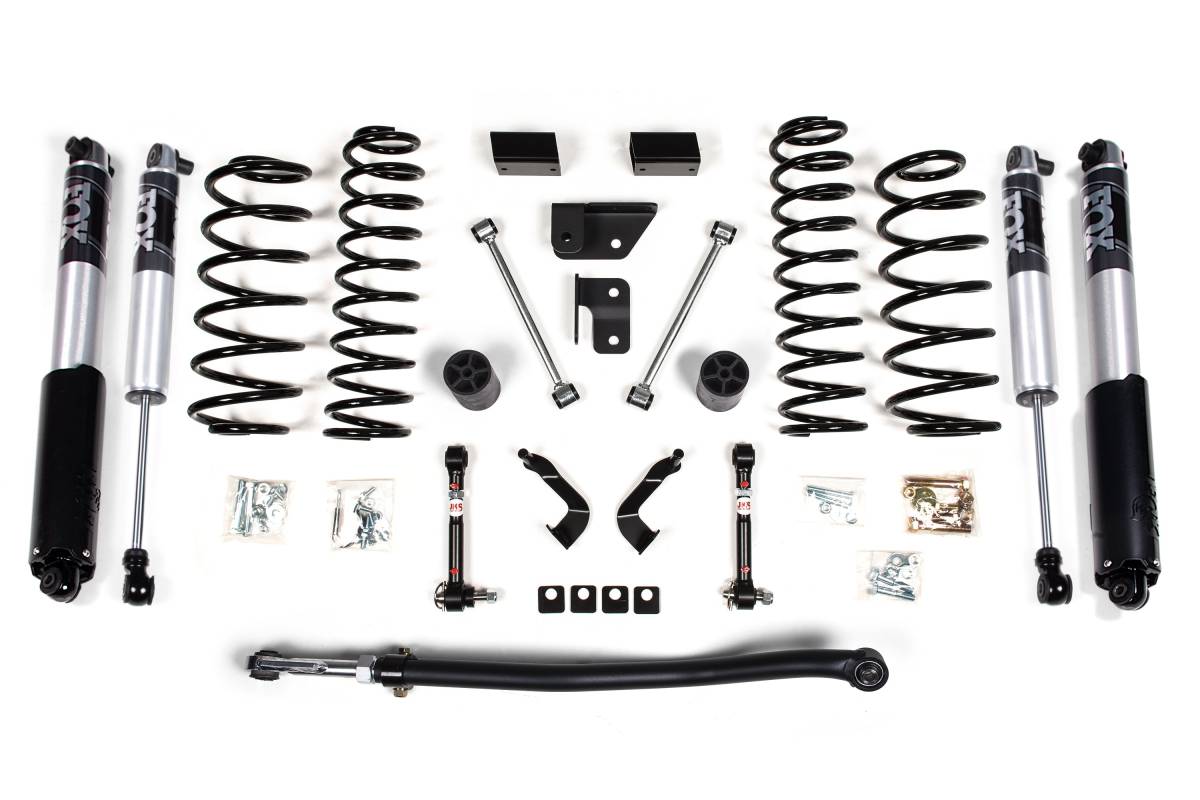

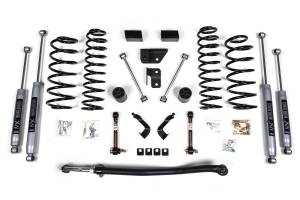

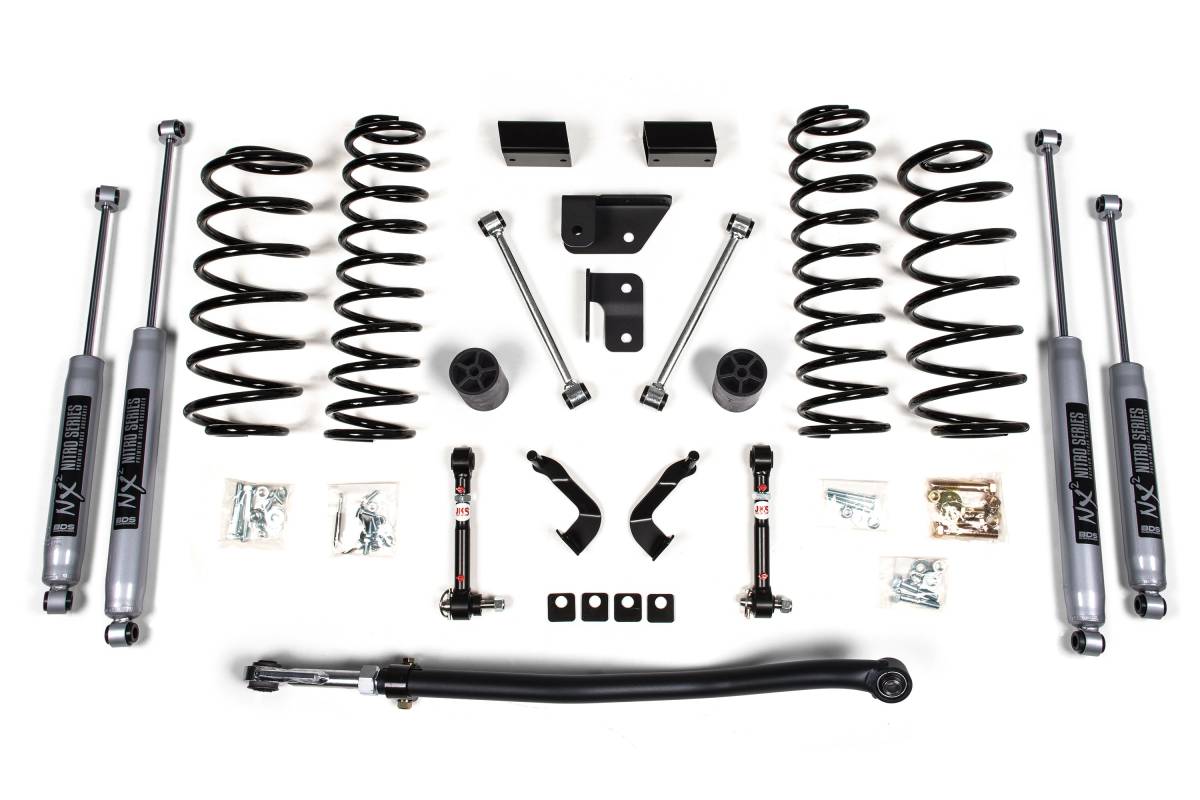

This 3-inch lift kit from BDS Suspension is designed to improve the stance and ride of the Jeep Wrangler JL 4-Door, providing clearance for up to 37-inch tires. The kit includes front and rear BDS Pro-Ride Coil Springs, a heavy-duty adjustable front track bar to re-center the front axle, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to maximize front suspension flex while maintaining quiet on-road operation, rear sway bar links, and a choice of specially tuned shocks for improved damper performance.

The Pro-Ride Coil Springs are full-length, gas-specific, progressive-rate units manufactured from high-tensile steel with properly sized wire diameters for maximum reliability without premature coil bind. The HD Adjustable Track Bar is built from 1-3/8-inch solid steel stock, comes pre-assembled with bushings, and bolts directly into the factory mounting points.

Features

• Pro-Ride coil springs for improved ride quality and increased articulation
• JKS sway bar quicker disconnects and extended rear links for improved off-road flex
• Front HD adjustable track bar to correctly position the front axle and control lateral movement
• Rear track bar bracket to reposition the rear axle under the vehicle
• Front lower cam locks to correct caster for proper alignment
• Choice of NX2 Nitro Series gas shocks or FOX 2.0 / 2.5 Performance Series shocks for improved damping
• Provides clearance for up to 37-inch tires
• Bump stop extensions included

Specifications

• Lift Height: 3 inches
• Tire Clearance: Up to 37 inches
• Track Bar Material: 1-3/8-inch solid steel stock
• Spring Type: Progressive-rate Pro-Ride coil springs, high-tensile steel
• Shock Options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Series

Installation

• Estimated Time: 5.5 hours
• Difficulty: Moderate
• Tools Required: Cut Off Wheel or Equivalent, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Full bump clearance. Rubbing can occur under full articulation.
• Non-Rubicon models come from the factory at a lower ride height, which will net slightly more lift; final stance is the same for all models.
• Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
• Will not fit 4xe models.
• Will not fit Rubicon 392 models.
• Does not fit Diesel models.
