BDS 5 Inch Lift Kit | 1987-1995 Jeep Wrangler YJ | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish — tuned specifically for this vehicle application.

Overview

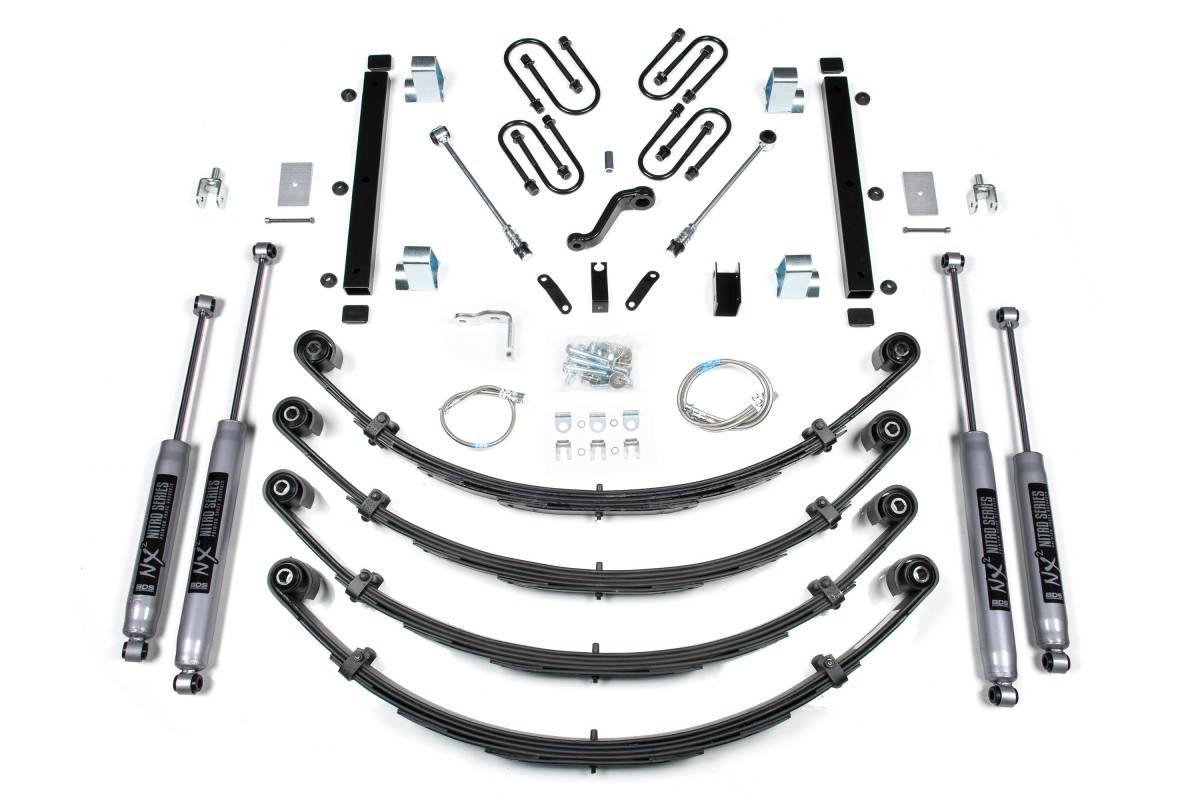

BDS Suspension improves the performance and capability of the 1987–1995 Jeep Wrangler YJ with this 5-inch suspension lift kit. Designed to improve stance and provide clearance for up to 33-inch tires, the kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, a power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease driveline angles.

BDS Glide-Ride leaf springs use a multi-leaf progressive spring rate design with an exclusive triple-stage construction. Features include tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. This design provides a smooth ride under varying loads and flexibility throughout the full suspension cycle.

Features

• Glide-Ride leaf springs for full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease driveline angles
• Stainless steel braided brake lines
• Sway bar disconnects
• Power steering pitman arm
• Bump stop extensions
• New u-bolts included
• NX2 Nitro Series shocks with vehicle-specific valving (base configuration)
• 100% bolt-on installation

Specifications

• Lift Height: 5 inches
• Tire Clearance: Up to 33 inches
• Spring Type: Glide-Ride multi-leaf progressive rate, triple-stage design
• Spring Features: Tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, full military wrap spring eyes
• Brake Lines: Stainless steel braided
• Compatible Vehicles: 1987–1995 Jeep Wrangler YJ

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Torque wrench, brake fluid, jack and jack stands

Important Notes

• May require a larger diameter driveshaft if equipped with a 41-1/2-inch front driveshaft.
• A slip yoke eliminator and dual cardan style rear driveshaft is required.
• Extended shackles are recommended to clear the military wraps on the springs.
• Pitman arm will NOT fit YJ models equipped with manual steering.
