4 Inch Lift Kit | 2009-2013 Ford F-150 4WD | Zone Offroad

Overview

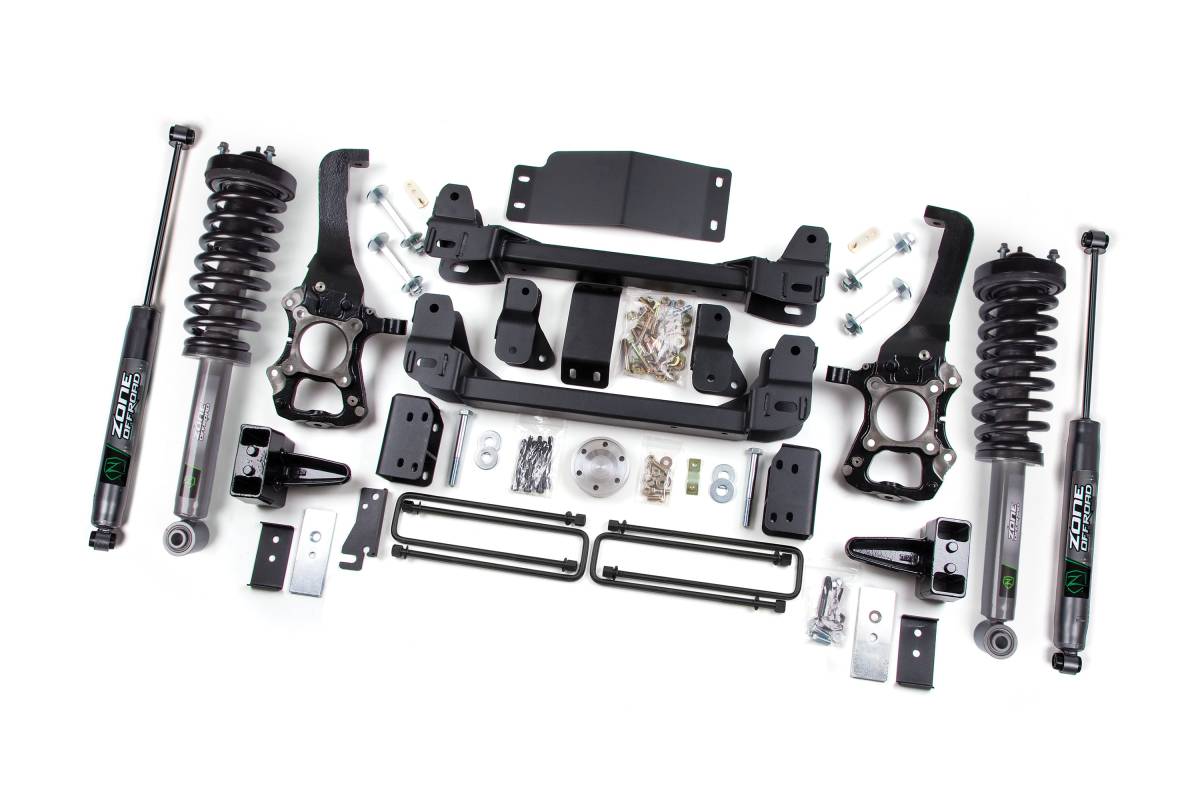

The Zone Offroad 4-inch Lift Kit for the 2009–2013 Ford F-150 4WD delivers added ground clearance and the ability to run up to 35-inch tires while maintaining solid on-road handling. The lift is built around precision-engineered, USA-made steering knuckles that properly correct suspension geometry at the taller ride height. The kit includes heavy-duty crossmembers, a differential drop, sway bar drop brackets, a skid plate, rear lift blocks, and new U-bolts for a complete, properly engineered suspension upgrade. In the rear, 4-inch lift blocks provide a clean, aggressive stance while retaining some of the factory rake.

Features

• Heavy-duty differential skid plate improves off-road protection
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• High-pressure, extended length replacement front struts improve performance on and off road
• High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
• Lift system does not change the front track width of the vehicle

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate

Important Notes

• Although rare, some models with a 1-piece rear driveshaft may require a rear driveshaft spacer kit to ensure sufficient spline engagement.
• Will not fit Raptor models.
• If your vehicle is equipped with factory power steps, it will require an E-Brake Relocation Bracket — add in configuration/checkout.
• Two-piece rear driveshaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• Will not fit 7-lug applications.
