Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter black powder-coated steel body, and a large 5/8-inch hard chrome plated heat-treated alloy steel shaft.
Overview

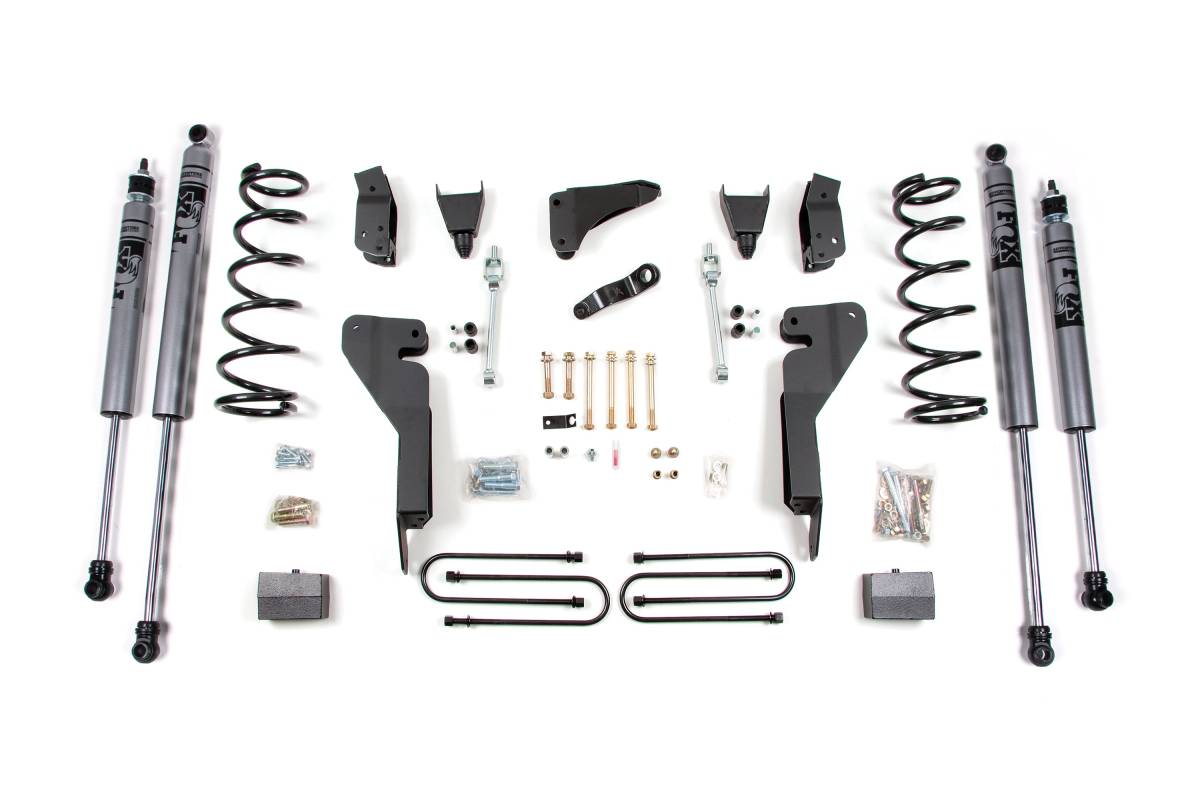

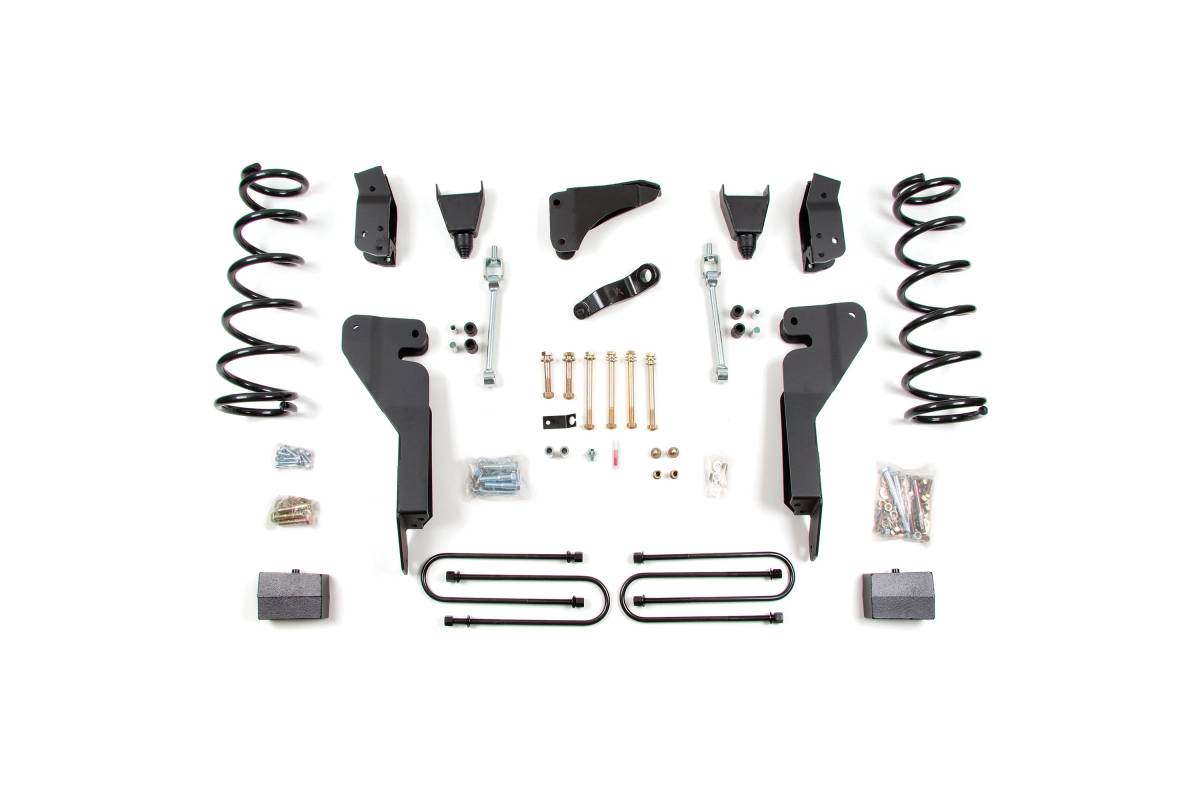

This 4-inch lift kit is designed for the 2012–2013 Dodge/Ram 2500 Power Wagon 4WD. It provides 4 inches of front and rear lift, allowing clearance for up to 37-inch tires. High-strength control arm relocation brackets correct suspension geometry and add rigidity, while the 100% bolt-on design simplifies installation.
Features
- 100% bolt-on design for easy installation
- High-strength control arm relocation brackets correct suspension geometry and add rigidity
- Shocks included
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4"
- Rear Lift Method: Block
- Rear Lift Height: 4"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7 hours
- Installation Difficulty: Moderate
Important Notes
- This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
- Although rare, if you experience front driveline vibration, install the optional transfer case indexing ring.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Adding larger-than-stock wheels? Add front bumper spacers to your kit for additional clearance as some wheel/tire combos may not fully clear the bumper's stock location.
