Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

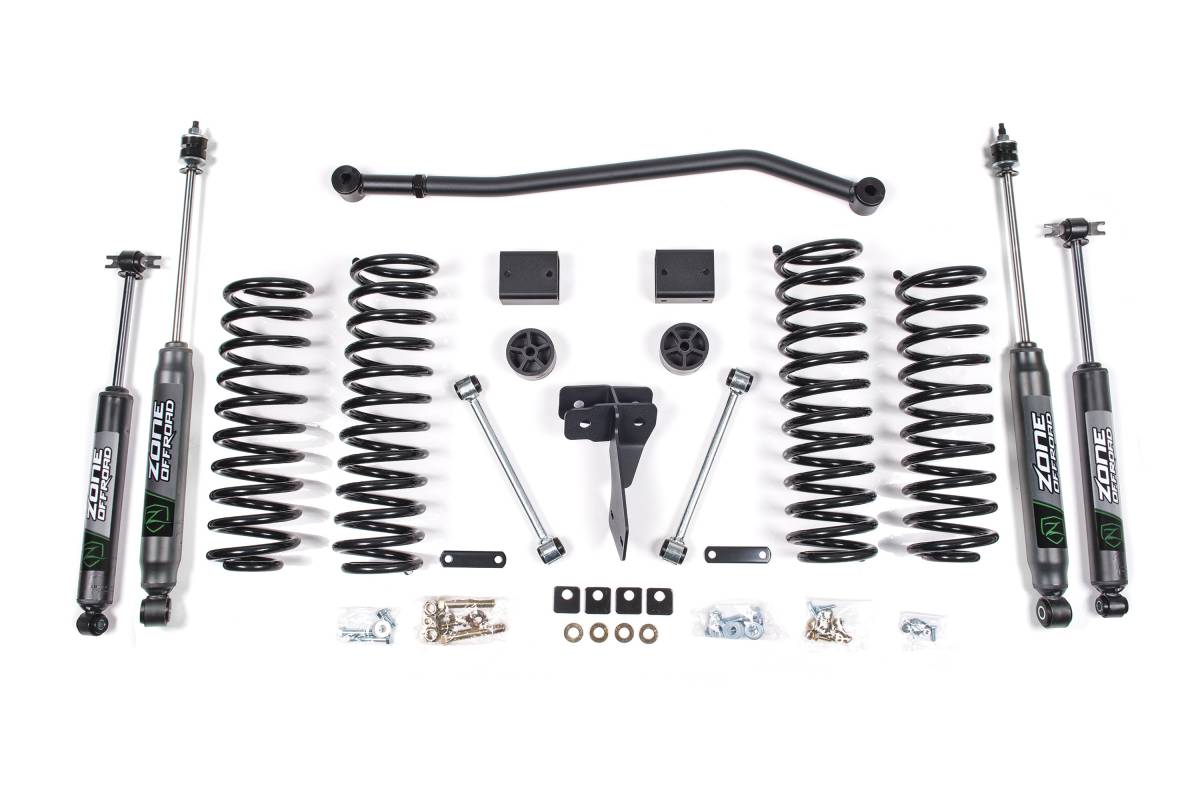

This 4-inch suspension lift kit is designed for 2012–2018 Jeep Wrangler JK 2-Door 4WD vehicles. It provides the ground clearance and wheel travel needed to run 35-inch tires with confidence on and off road.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Full length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty, adjustable front track bar re-centers the front axle and adds strength
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
- Lower cam washers correct axle caster for front end alignment
- Rear track bar bracket correctly positions the rear axle under the vehicle
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
