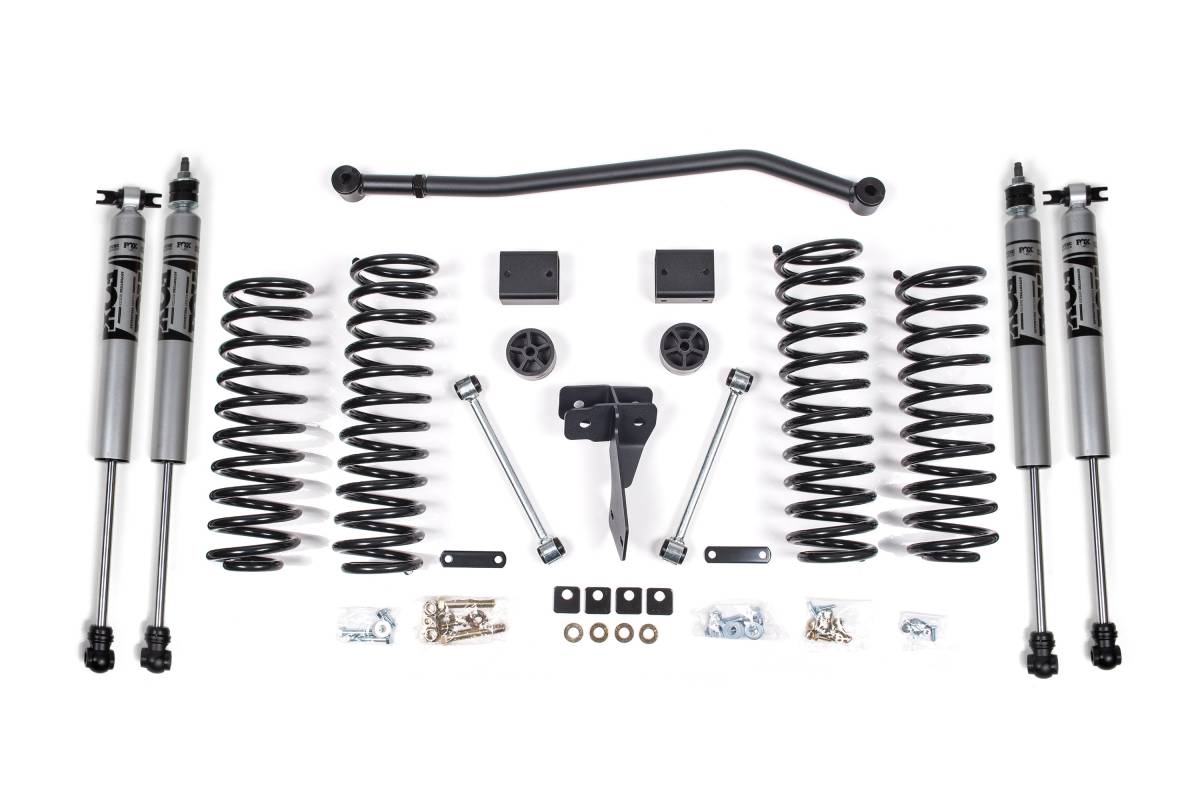

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter steel body, and a black powder coat finish for increased strength and durability.
Overview

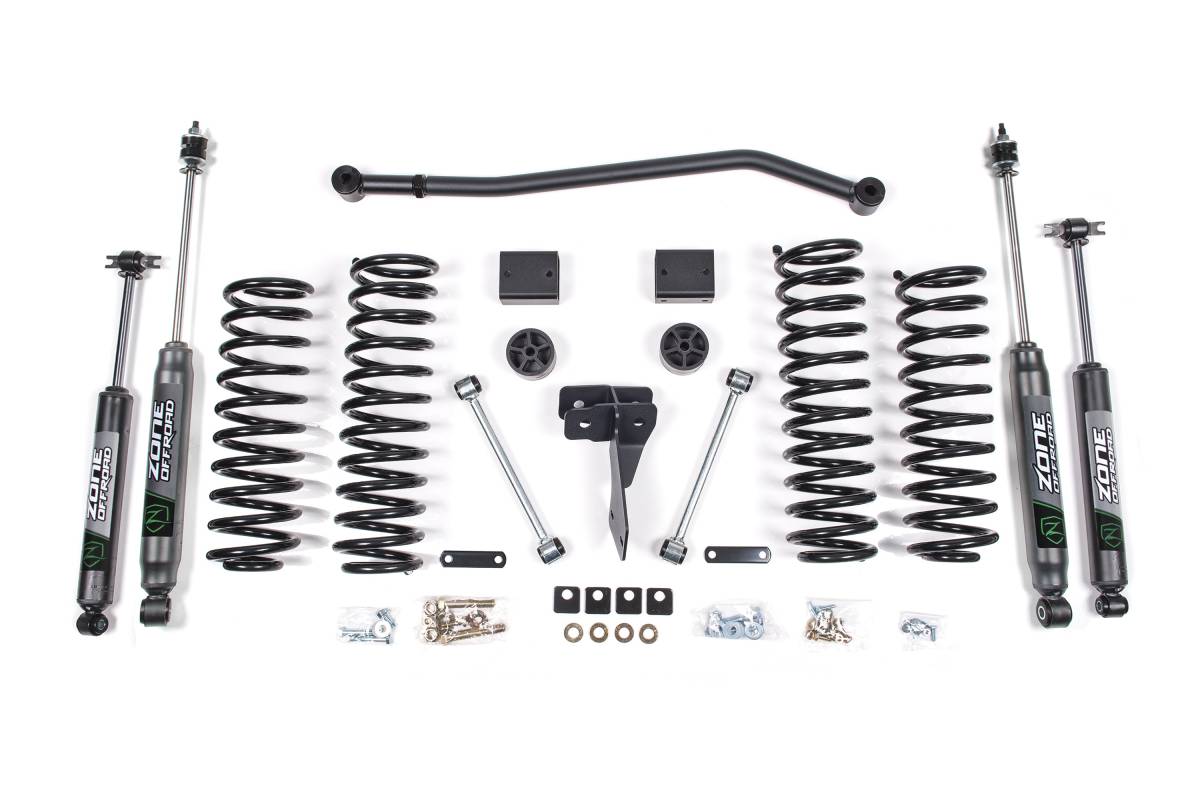

This 4-inch suspension lift kit is designed for the 2012–2018 Jeep Wrangler JK 4-Door 4WD. It provides the ground clearance and wheel travel needed to run 35-inch tires while maintaining ride quality on and off road.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Full-length replacement coil springs add additional ride height while maintaining ride quality
- Heavy-duty, adjustable front track bar re-centers the front axle and adds strength
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
- Lower cam washers correct axle caster for front end alignment
- Rear track bar bracket correctly positions the rear axle under the vehicle
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
Wheels / Tires: Factory wheels cannot be reinstalled with this lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
