6 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW 4WD Gas (2020-2021) | Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

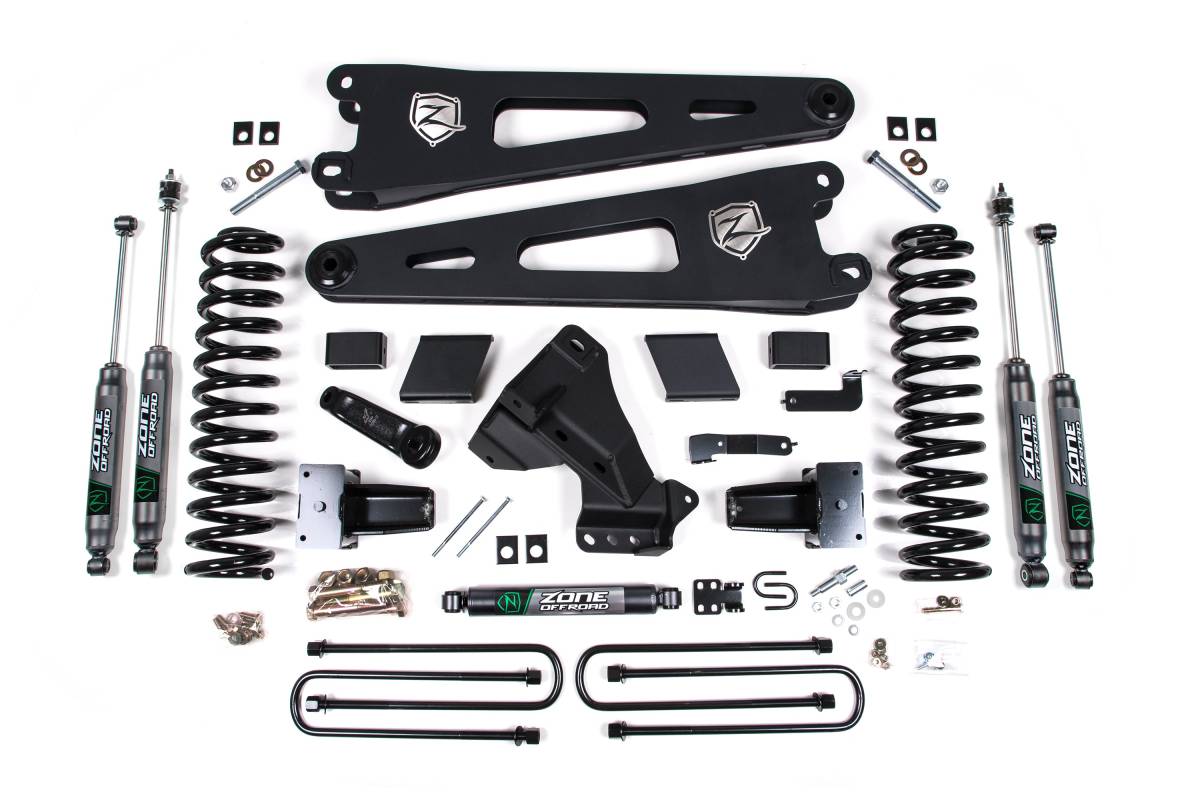

Zone Offroad offers suspension lift kits for the 2020–2021 Ford F350 Super Duty 4WD DRW trucks. Based on the proven platform developed for 2005–2021 Ford Super Duty applications, these kits have been updated specifically for use on dually (DRW) models. The 6-inch lift kit is available for gas applications and includes a replacement HD radius arm to allow clearance for up to 37-inch tires. All Zone lift kits are backed by Factory Protection Plus — a comprehensive extended warranty that includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features

• High-strength radius arms correct suspension geometry
• Forged pitman arm corrects steering angles
• Heavy-duty fabricated track bar relocation bracket re-centers the front axle
• Full-length gas-specific coil springs for a smooth ride

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 6 inches
• Rear Lift Method: Block
• Rear Lift Height: 5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 4–6 hours
• Difficulty: Moderate
• Tools Required: Standard wrenches

Important Notes

• Dually (DRW) models only.
• Gas models only.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• Due to taller factory ride height, Tremor models will not net the full advertised lift height. Final ride height will be the same as standard models.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory/original equipment tire size.
