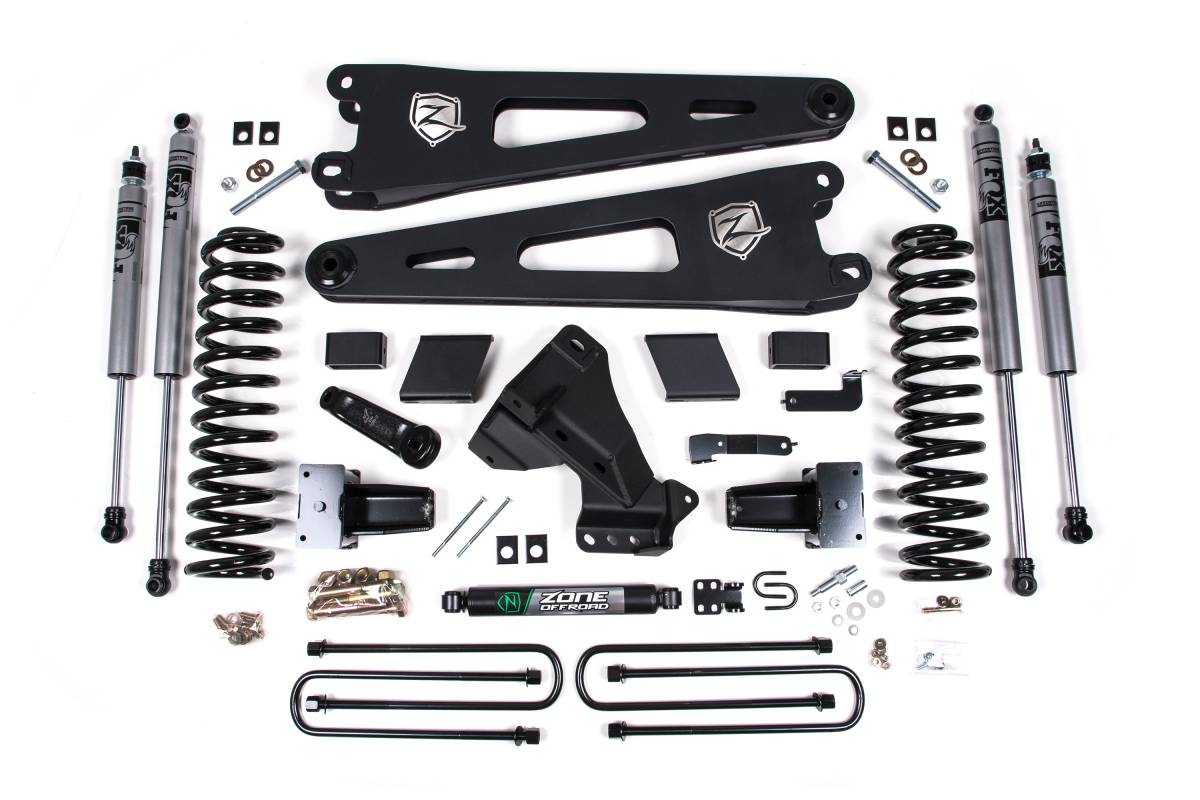

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter steel body, and a black powder coat finish.
Overview

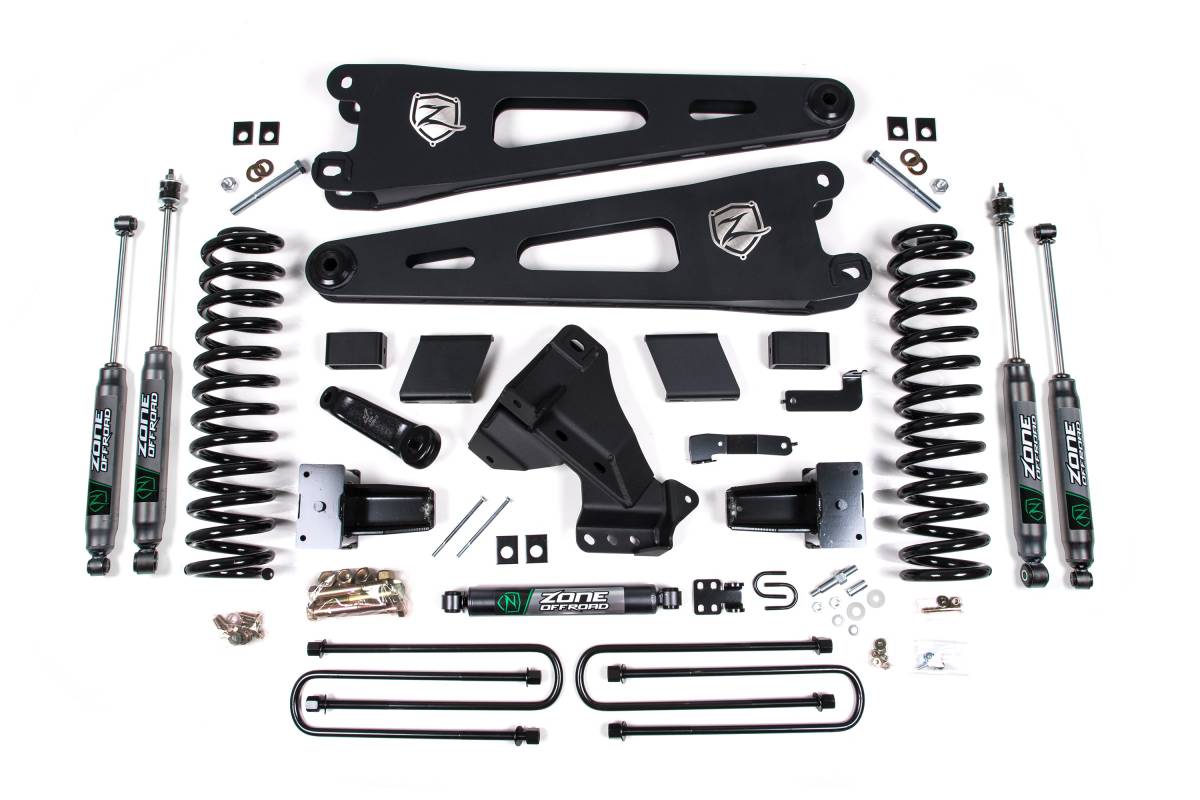

Zone Offroad offers suspension lift kits for the 2020–2021 Ford F350 Super Duty 4WD DRW. Based on the proven platform developed for 2005–2021 Ford Super Duty trucks, these kits have been updated specifically for dual rear wheel (DRW) models. The 6-inch lift kits are available for diesel applications and include replacement heavy-duty radius arms to provide clearance for up to 37-inch tires. All Zone lift kits are backed by Factory Protection Plus, which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
- High-strength radius arms correct suspension geometry
- Forged pitman arm corrects steering angles
- Heavy-duty fabricated track bar relocation bracket re-centers the front axle
- Full-length diesel-specific coil springs for a smooth ride
Specifications
- Front Lift Method: Coil Spring & Radius Arm
- Front Lift Height: 6 inches
- Rear Lift Method: Block
- Rear Lift Height: 5 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4–6 hours
- Installation Difficulty: Moderate
- Tools Required: Standard wrenches
Important Notes
- Dually models only.
- Diesel models only.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid/eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net the full advertised lift height. Final ride height will be the same as standard models.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
