Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

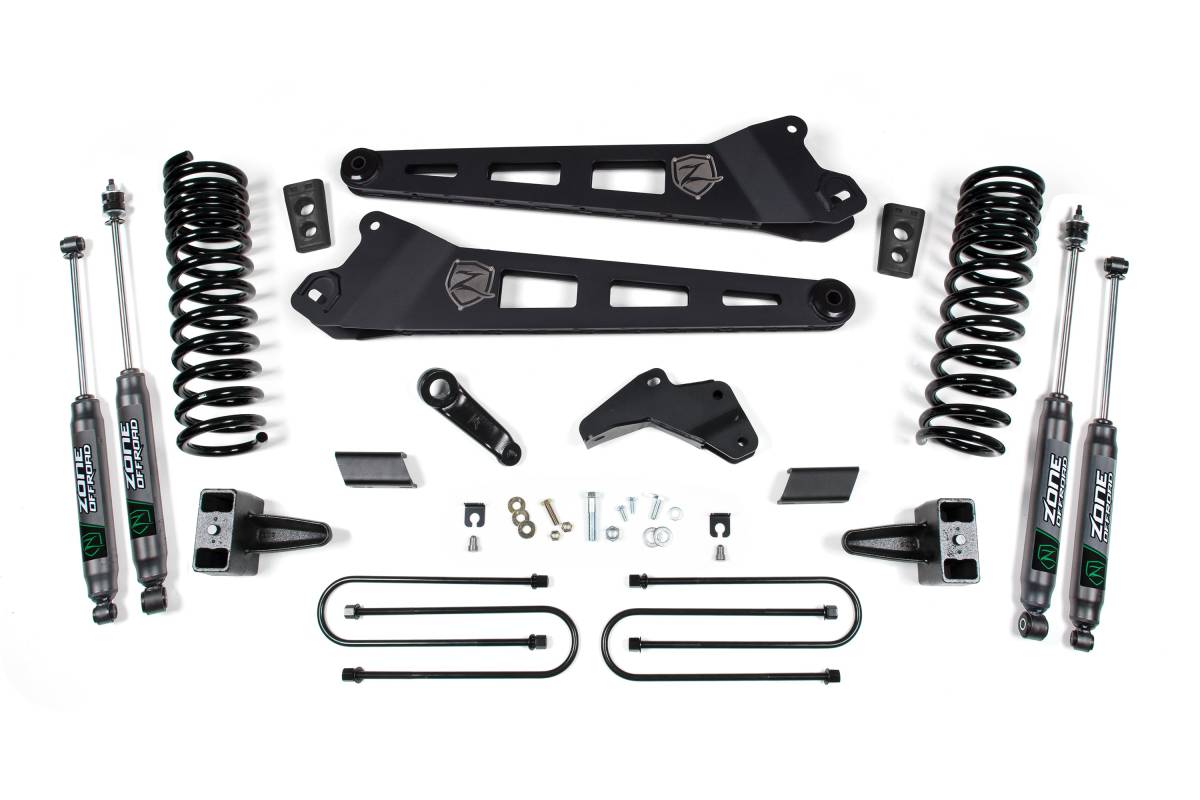

This 5.5-inch lift kit from Zone Offroad is designed for the 2013–2018 Ram 3500 4WD with a 6.4L gas engine. The kit includes full-length coil springs, heavy-duty radius arms, steering correction components, and rear lift hardware to level the stance. It provides clearance for tires up to 37 inches.
Features
- Progressive rate front coil springs to improve ride quality and off-road performance
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Replacement rear lift blocks and u-bolts to lift and level the stance
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 5.5"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 5 hours
- Installation Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engine only.
- Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part # D5623. Models with an 8-bolt transfer case use part # D5813.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
