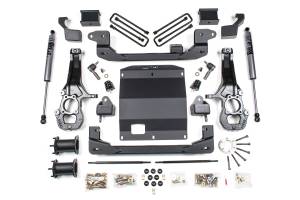

5.5 Inch Lift Kit | Chevy Colorado & GMC Canyon 4WD (2015-2022) | w/ FOX Adventure Series Rear Shocks | Zone Offroad

This configuration includes FOX Adventure Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.

Overview

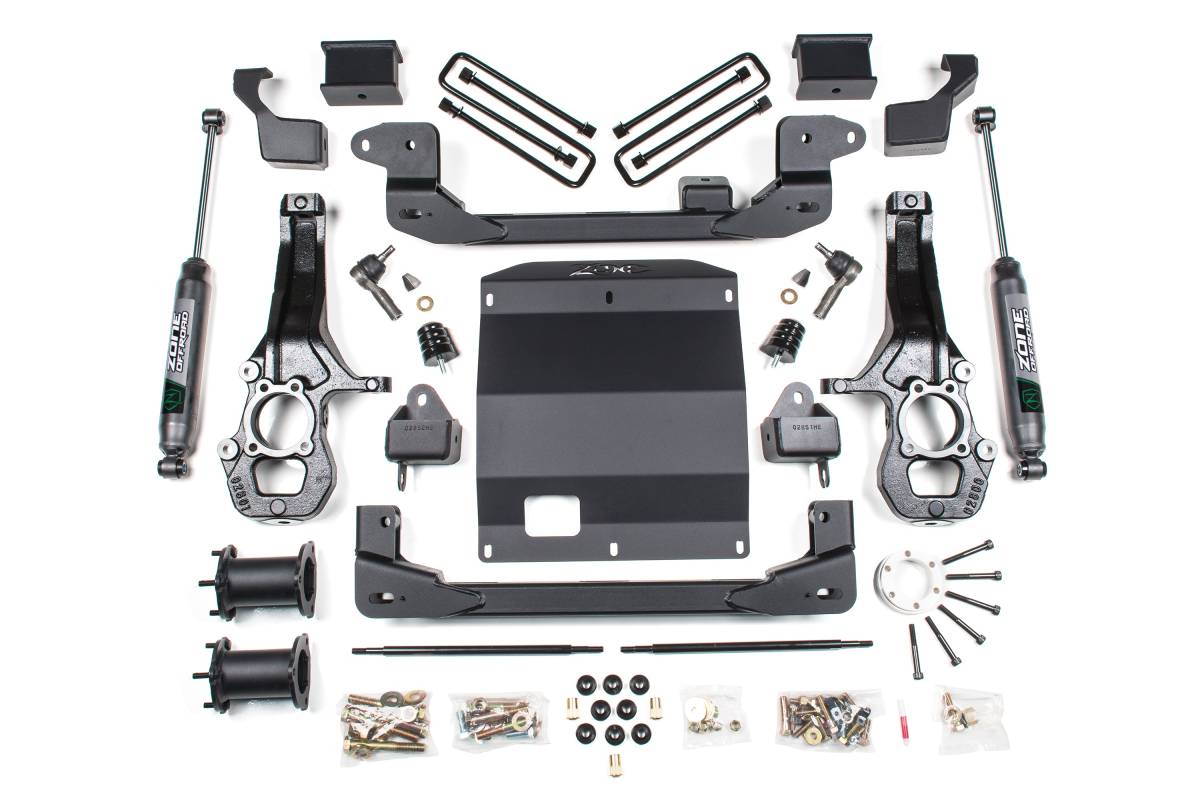

This 5.5-inch lift kit for the 2015–2022 Chevy Colorado and GMC Canyon 4WD uses ductile cast iron steering knuckles to reposition critical steering and control arm mounting locations, working in harmony with heavy-duty fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles while retaining use of the factory front driveshaft, aided by a spacer that helps maintain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential and ties the front and rear crossmembers together. Factory struts are retained and relocated using top spacers to achieve the full 5.5 inches of front lift without strut disassembly, and are positioned to eliminate binding throughout wheel travel. The rear receives a new block and U-bolt kit providing 4 inches of lift to level the stance with the front. Extended sway bar links, bump stop extensions, and brake line relocation hardware are also included.

Features

• Corrects suspension, steering, and drivetrain geometry for improved on-road handling and off-road performance
• Heavy-duty differential skid plate improves off-road protection
• High-strength 1/4-inch steel construction crossmembers correct lower control arm geometry
• High-strength replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance
• Multi-point differential relocation brackets secure the front differential for improved CV operating angles
• Rear lift block and longer U-bolts for easy installation and a level stance

Specifications

• Front Lift Method: Strut Spacer
• Front Lift Height: 5.5"
• Rear Lift Method: Block
• Rear Lift Height: 4"
• Lift Height Range: 4–5.5"
• Shocks Included: Yes

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Tools Required: Torx Bit / Socket Set, Cut-off Tool, Standard Wrenches

Important Notes

• Factory wheels cannot be reinstalled.
• Fits Gas and Diesel models.
• Inner fender trimming may be required.
• The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, or overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel may be experienced.
• Will not fit ZR2 Models.
