5 Inch Lift Kit | 2008 Dodge Ram 2500 Power Wagon 4WD | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

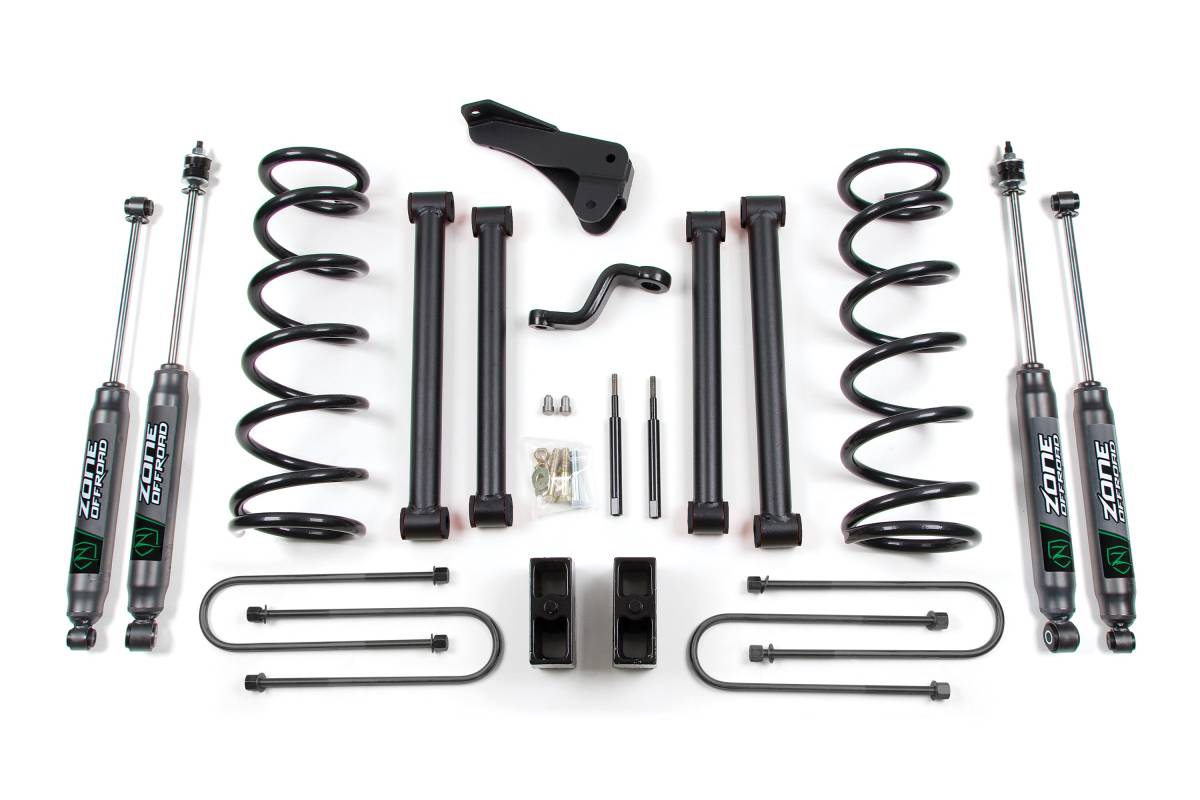

This 5-inch lift kit from Zone Offroad is designed for the 2008 Dodge Ram 2500 Power Wagon 4WD. The kit includes everything needed for a complete lift, from full-length coil springs and stout 4-link control arms to steering correction components and rear lift hardware to level the stance. Clearance is provided for up to 37-inch tires.

Features

• 100% bolt-on design for easy installation
• Bump stop extensions properly limit up-travel, protecting the vehicle
• Heavy-duty upper and lower control arms improve strength and articulation while correcting caster
• Heavy-duty front track bar bracket correctly positions the front axle under the vehicle
• Steering components included to ensure smooth post-installation operation and factory-consistent handling characteristics

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 5 inches
• Rear Lift Method: Block
• Rear Lift Height: 3 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 7 hours
• Installation Difficulty: Moderate

Important Notes

• If the steering gear box has been changed and the sector shaft diameter measures approximately 1-1/2" to 1-5/8", part number ZOND8404 will also be required with this kit.
• This truck was produced using rear axles of differing diameters. Measure the diameter of the rear axle to ensure proper kit selection and configuration.
• This kit is not designed for dually models, but may be easily adapted. Please contact customer support for assistance.
• Gas Engine: Gas models may sit slightly taller than the advertised lift height due to the lighter weight of the engine.
• Two-piece rear drive shaft: Adding a carrier bearing drop kit is recommended to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
