5 Inch Lift Kit | 2008 Dodge Ram 2500/3500 4WD | 3-1/2 Inch Axle | FOX 2.0 Adventure Series | Zone Offroad

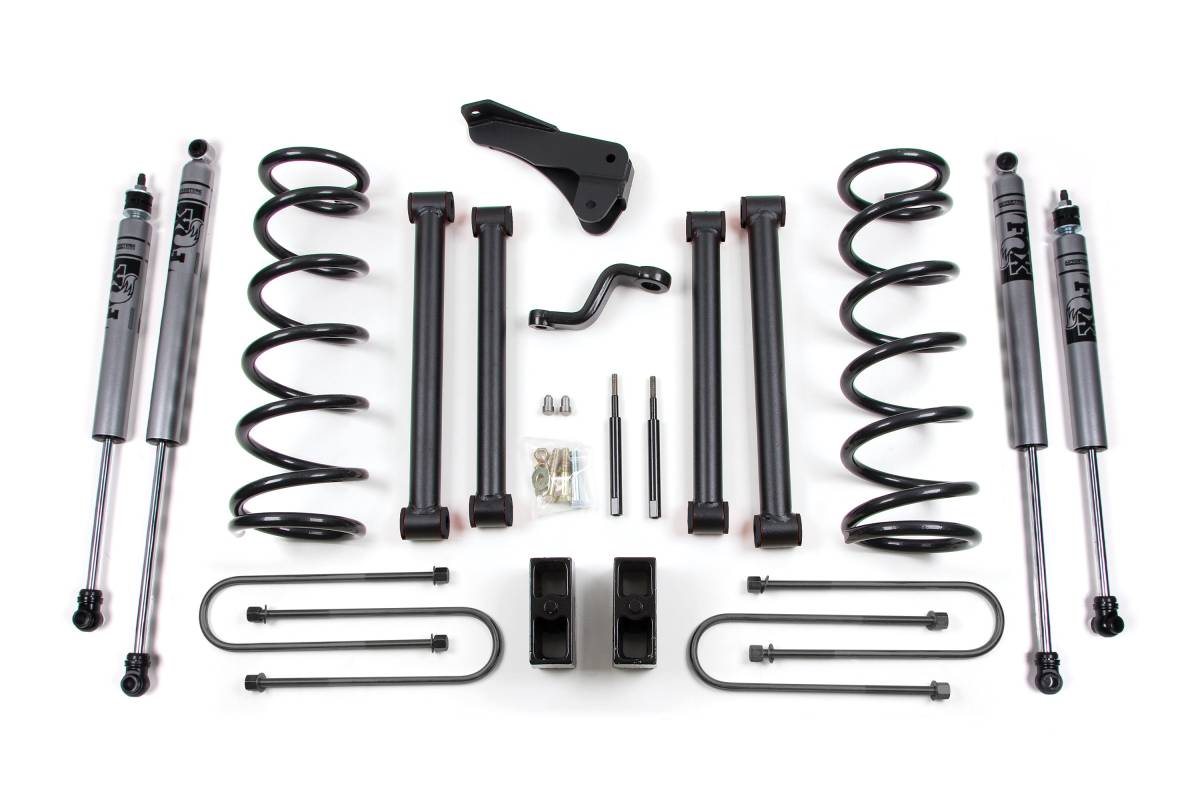

Configured for trucks with a 3-1/2 Inch rear axle diameter and includes FOX 2.0 Adventure Series shocks. FOX 2.0 Adventure Series shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a black powder coat finish with a 2-inch diameter steel body.

Overview

This 5 Inch Lift Kit is designed to raise your 4WD 2008 Dodge/Ram 2500/3500 truck, providing clearance for tires up to 36 inches. The kit includes all necessary components to complete the lift and is available in configurations to match your specific rear axle diameter and preferred shock option.

Features

• 100% bolt-on design for easy installation
• Bump stop extensions properly limit up-travel, protecting your vehicle
• Heavy-duty upper and lower control arms improve strength and articulation while correcting caster
• Heavy-duty front track bar bracket correctly positions the front axle under the vehicle
• Steering components included to ensure smooth post-installation operation and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 5 inches
• Rear Lift Method: Block (3 inch rear block kit included)
• Rear Lift Height: 3 inches
• Shocks Included: Yes

Installation

• Estimated Time: 7 hours
• Difficulty: Moderate

Important Notes

• If your truck has had the steering gear box changed and the sector shaft diameter measures approximately 1-1/2"–1-5/8", you will also need part number ZOND8404 with your kit.
• This truck was produced using rear axles of differing diameters. Measure the diameter of your rear axle to ensure proper kit selection.
• Factory wheels fit when paired with factory/original equipment tire size.
• This kit is not designed for dually models, but may be easily adapted. Please contact customer support for assistance.
• Gas Engine: Gas models may sit slightly taller than the advertised lift height due to the lighter weight of the engine.
• Measure your truck before ordering to determine the stance with the lift installed.
• Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
