Configured with a 5 Inch Block Rear Lift Kit With Overload and Nitro Series nitrogen-charged twin-tube gas shocks. Nitro Series shocks feature a 2-inch diameter steel body, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, an internal floating piston (IFP) design, and a black powder coat finish.
Overview

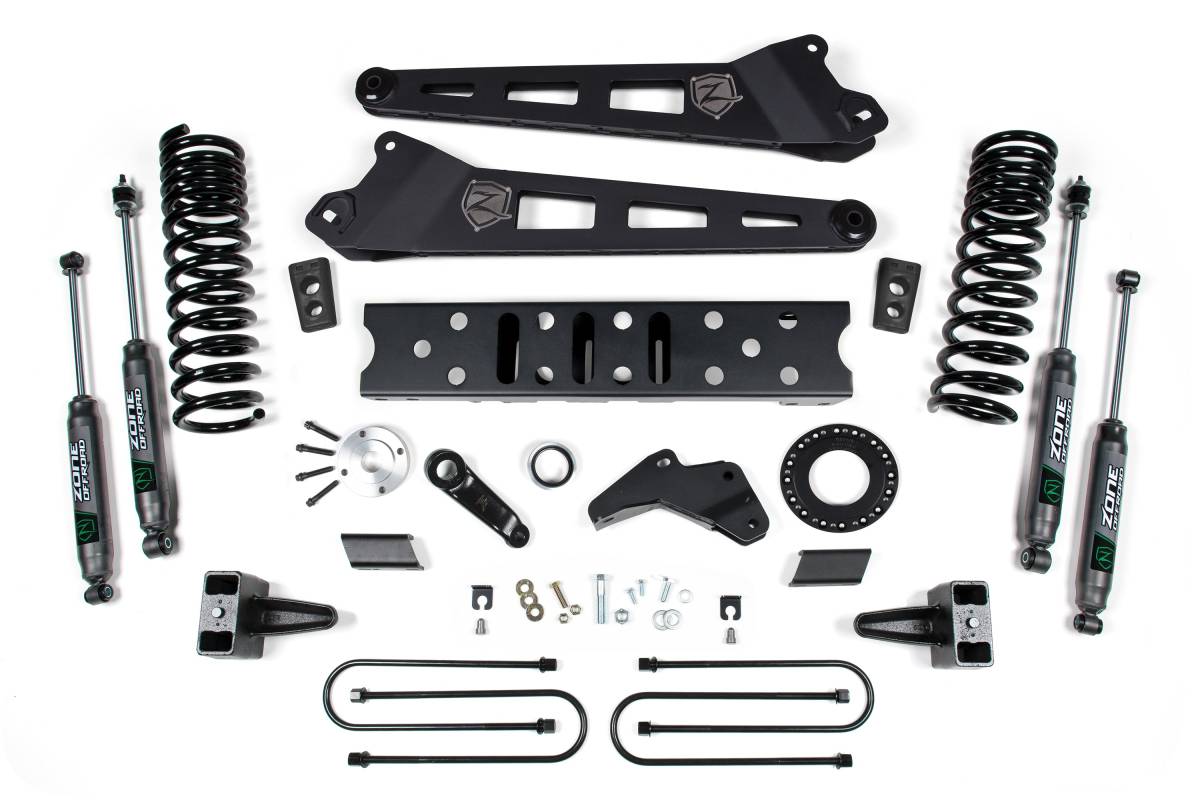

This 5.5-inch radius arm lift kit from Zone Offroad is designed for 2019–2024 Ram 3500 4WD gas models. The kit includes full-length coil springs, heavy duty radius arms, steering correction components, and rear lift to level the truck's stance. It provides clearance for up to 37-inch tires.
Features
- High-strength progressive rate front coil springs for improved ride quality on any terrain
- Heavy duty 1/4-inch steel, laser cut, internally gusseted radius arms for increased strength, greater ground clearance, and corrected caster
- HD track bar relocation bracket to correctly position the front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles
- Shocks included (Nitro Series gas or FOX 2.0 Adventure Series IFP gas — see variant options)
- Provides clearance for up to 37-inch tires
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 5.5 inches
- Rear Lift Method: Block
- Rear Lift Height: 5 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7–9 hours
- Difficulty: Difficult
- Tools Required: Standard wrenches
Important Notes
- Will not fit Cab and Chassis models.
- Will NOT fit rear air-ride equipped models.
- Gas models only.
- Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop.
- Does not fit vehicles with a Manual Shift Transfer Case.
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
