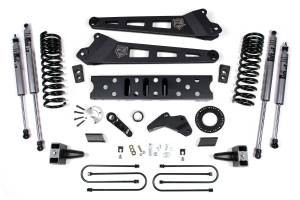

5.5 Inch Radius Arm Lift Kit | Ram 3500 (2019-2024) 4WD Gas | 5 Inch Block Kit Without Overload | FOX 2.0 Adventure Series | Zone Offroad

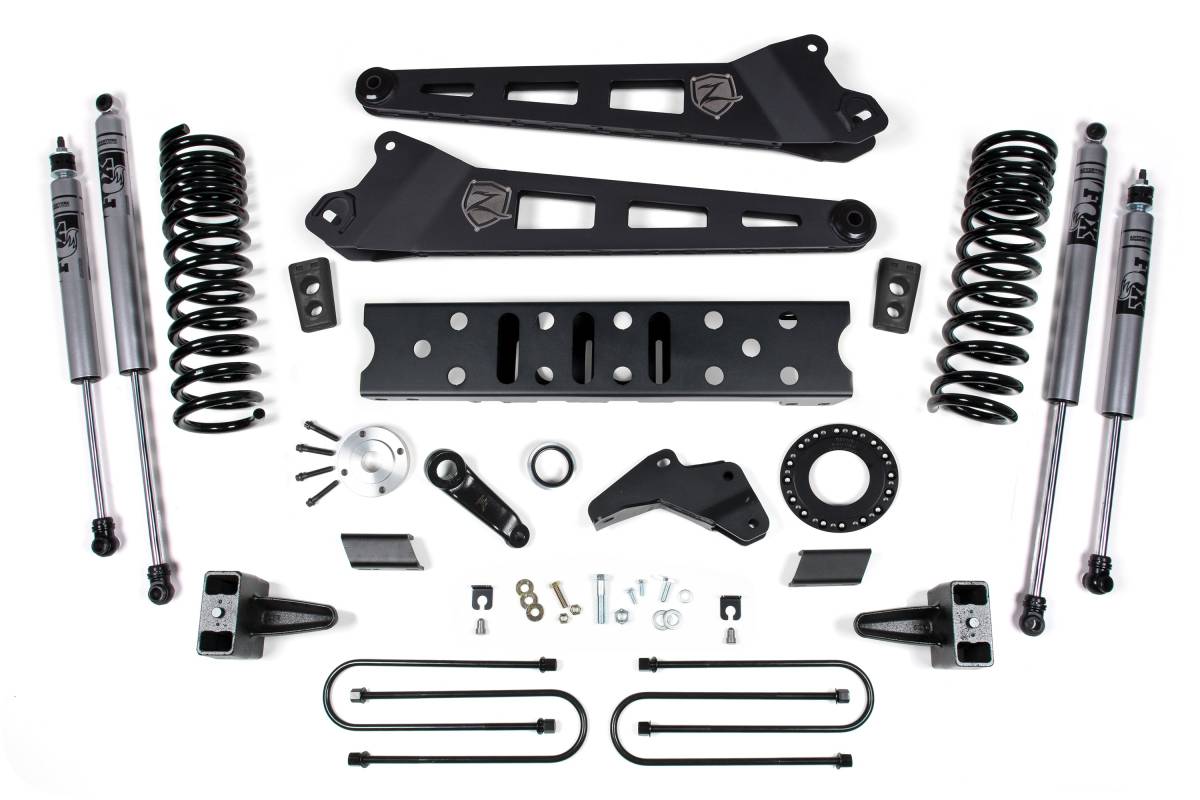

Configured with a 5 Inch Block Rear Lift Kit Without Overload and FOX 2.0 Adventure Series IFP monotube gas shocks. FOX 2.0 Adventure Series shocks feature a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

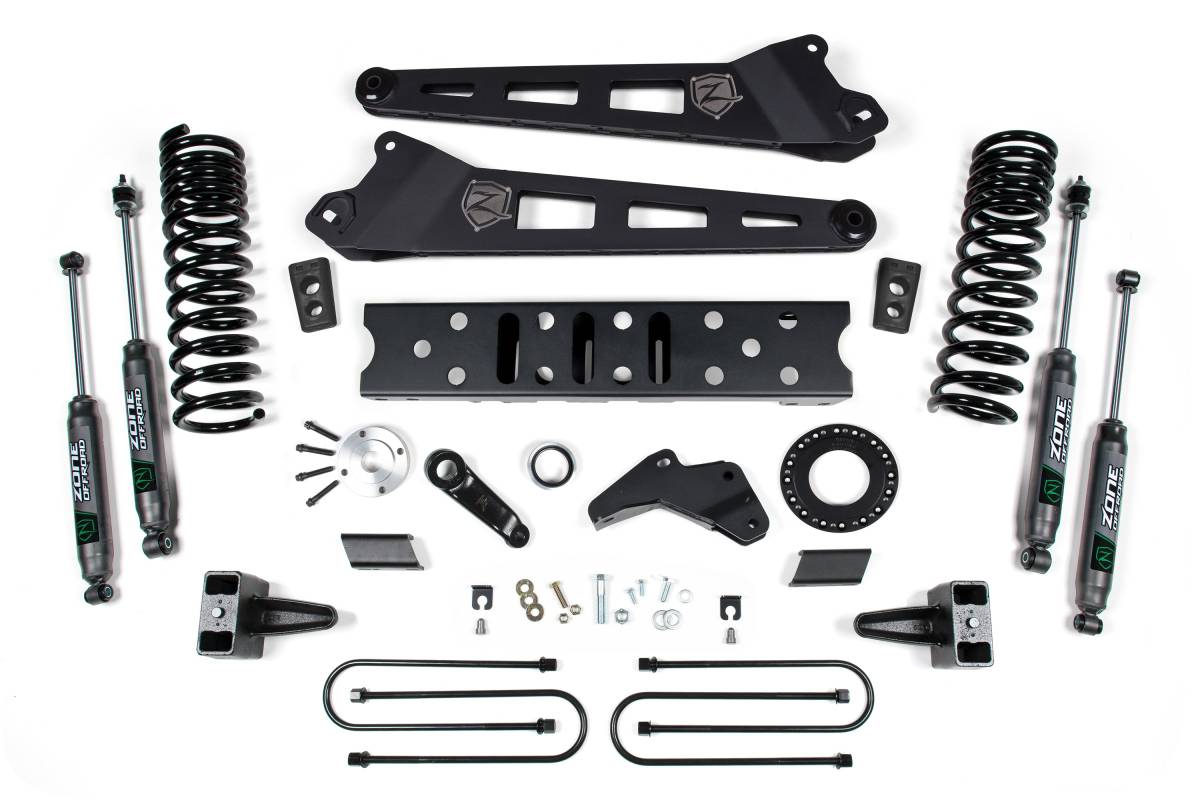

This 5.5-inch radius arm lift kit from Zone Offroad is designed for 2019–2024 Ram 3500 4WD gas models. The kit includes full-length coil springs, heavy duty radius arms, steering correction components, and rear lift to level the truck's stance. It provides clearance for up to 37-inch tires.

Features

• High-strength progressive rate front coil springs for improved ride quality on any terrain
• Heavy duty 1/4-inch steel, laser cut, internally gusseted radius arms for increased strength, greater ground clearance, and corrected caster
• HD track bar relocation bracket to correctly position the front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles
• Shocks included (Nitro Series gas or FOX 2.0 Adventure Series IFP gas — see variant options)
• Provides clearance for up to 37-inch tires

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 5.5 inches
• Rear Lift Method: Block
• Rear Lift Height: 5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 7–9 hours
• Difficulty: Difficult
• Tools Required: Standard wrenches

Important Notes

• Will not fit Cab and Chassis models.
• Will NOT fit rear air-ride equipped models.
• Gas models only.
• Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop.
• Does not fit vehicles with a Manual Shift Transfer Case.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
