3.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (2007-2013) 2WD | w/ FOX Adventure Series Shocks | Zone Offroad

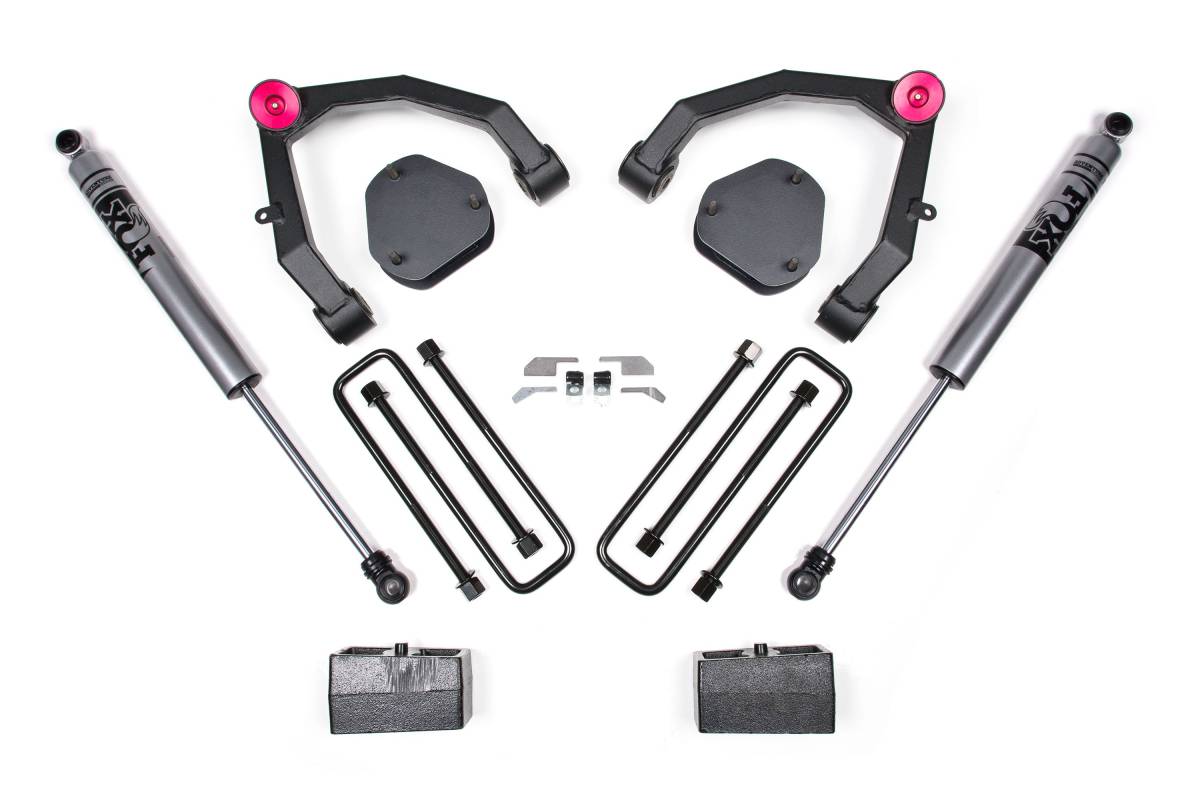

This kit is configured with FOX Adventure Series rear shocks, featuring a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish on a 2-inch diameter steel body.

Overview

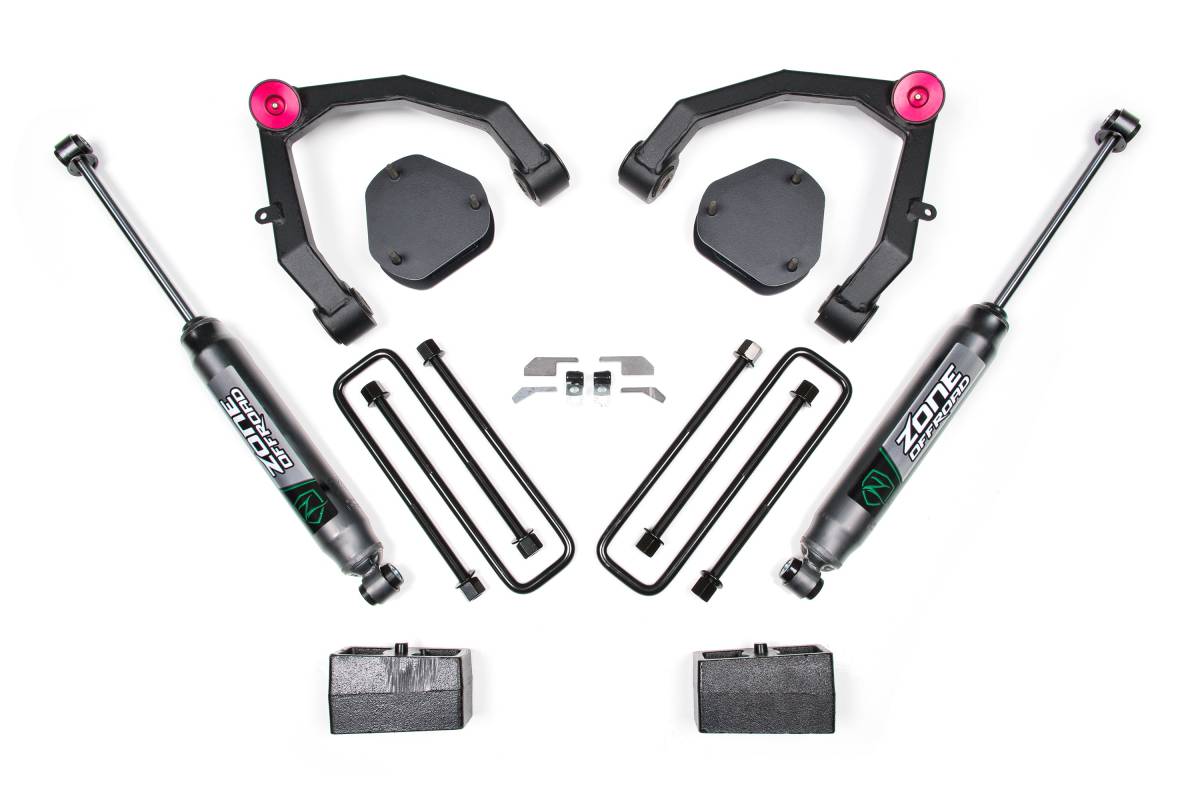

This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCAs are made from fully welded, 1/8" steel plate with CNC-machined ball joint and bushing mounts. High-quality, greasable factory-style ball joints handle heavy-duty use and work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.

Strut spacers provide a full 3.5" of front lift and install on the factory struts without the need of a strut compressor. A rear 3" block and U-bolt system nets 2" of rear lift and provides a level vehicle stance.

Features

• Fully welded, heavy-duty upper control arms with CNC-machined bushing and ball joint cups
• OE rubber bushings and greasable factory-style ball joints for quiet, reliable, and low-maintenance operation
• Improved UCA range of motion compared to stock arms
• UCAs utilize replaceable ball joints
• Integrated front differential drop and differential skid plate system for optimal driveline angles
• Strut spacers install on factory struts — no strut compressor required

Specifications

• Front Lift Method: Strut Spacer & Upper Control Arm
• Front Lift Height: 3.5"
• Rear Lift Method: Block
• Rear Lift Height: 2"
• Shocks Included: Yes
• UCA Material: Fully welded 1/8" steel plate

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderate

Important Notes

• Certain tire/wheel packages can fit with the addition of the provided weld-on steering stops. These are necessary for deeper backspaced wheels to maintain proper tire clearance to the new upper control arms.
• Do Not combine with any other suspension lift.
• Does Not Fit 4WD Models.
• Minor frame trimming required — see installation instructions for details.
• Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999–06 models.
