6 Inch Lift Kit | 1977-1987 Chevy/GMC K1500 Truck & SUV 4WD | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

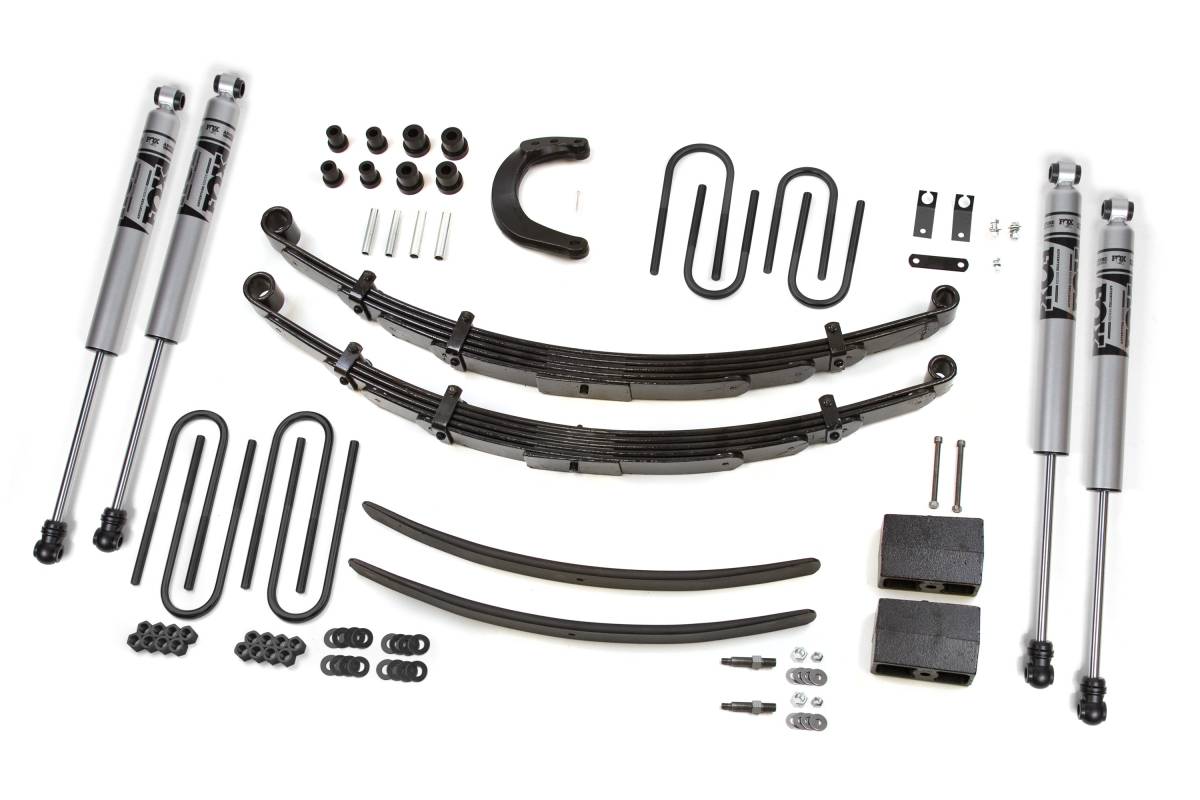

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.

Overview

This 6-inch lift kit is designed for 4WD 1977–1987 Chevy/GMC K1500 trucks and SUVs. It provides the clearance needed for up to 36-inch tires while maintaining daily driving reliability. The kit includes all components necessary for front and rear lift.

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• High-strength, black e-coated U-bolts
• Rear Add-A-Leaf kit provides additional lift and improves weight capacity
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Leaf Spring
• Front Lift Height: 6 inches
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 6 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 4 hours
• Installation Difficulty: Moderate

Important Notes

Auxiliary Shocks: If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit. Add in configuration / checkout.

On some models, the front driveshaft may need to be clearanced at the double cardan joint to prevent binding. Some models may require the transfer case drop kit C5001 listed in the accessories to alleviate driveshaft vibration. The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.
