ICON 2024 Toyota Land Cruiser 250 2.5 Series Remote Reservoir Coilover Kit w/ CDEV | 58791E

APPLICATION NOTE #169: 4WD models require front differential drop part # 55160 APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset TECH NOTE: Also requires installation of IIC kit (Part # 53509) and CDEV rear shocks (Part # 57870EP) TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

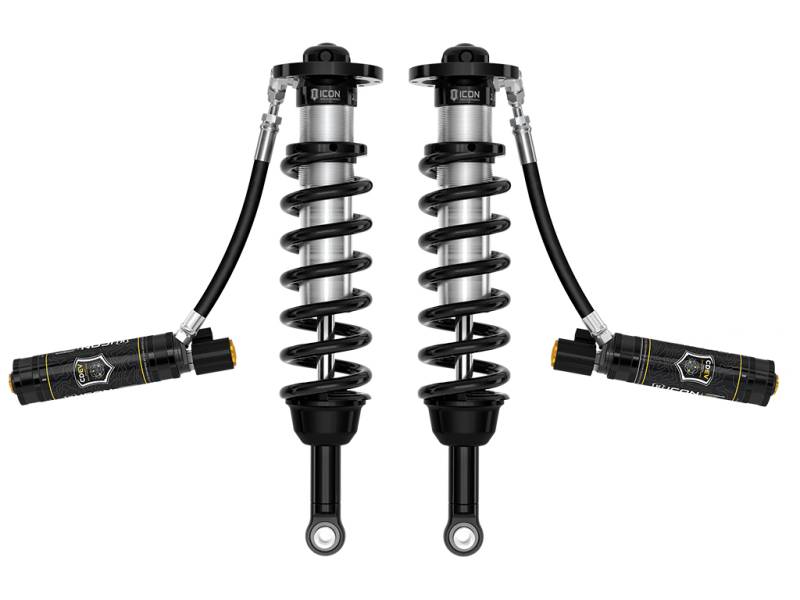

COILOVER KIT ICON 2024 Toyota Land Cruiser 250 2.5 Series Remote Reservoir Coilover Kit w/ CDEV

• FK rod end bearings for extended longevity and minimal deflection
• 2.5" diameter shock bodies with remote reservoirs
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock

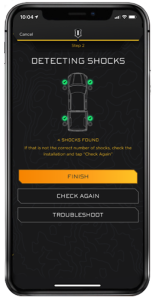

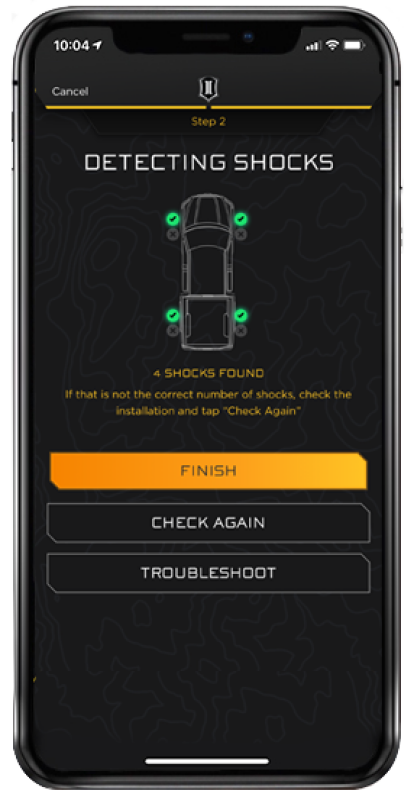

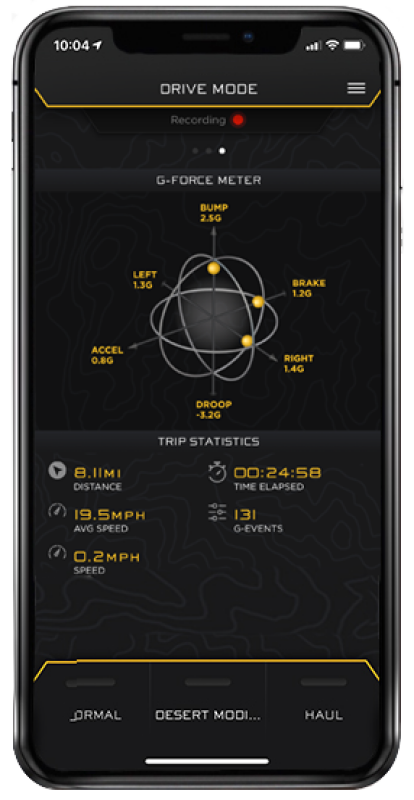

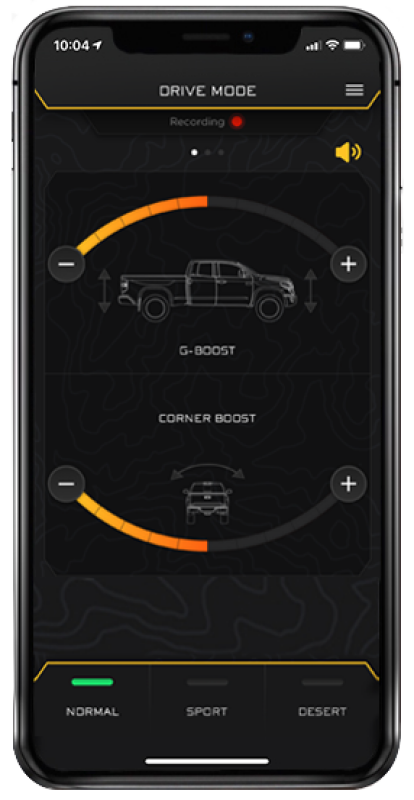

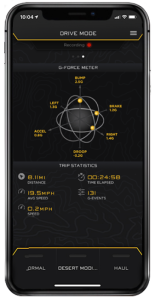

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Fully rebuildable and re-tunable
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Toyota Land Cruiser 250 Series. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser.
