ICON 2024+ Toyota Land Cruiser 250 Series Front 2.5 VS IR Coilover Kit | 58691

APPLICATION NOTE #169: 4WD models require front differential drop part # 55160 APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

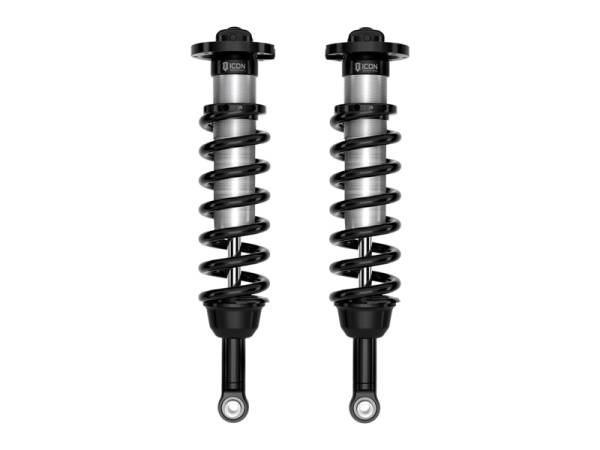

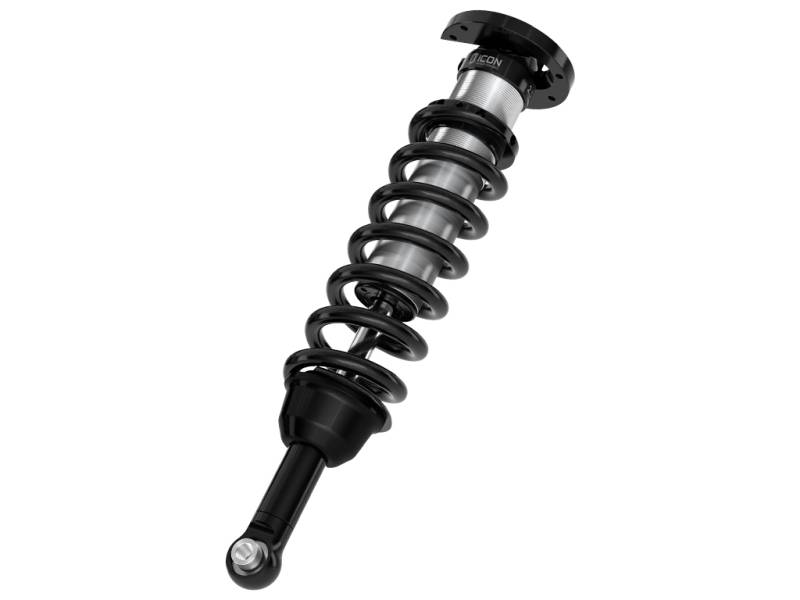

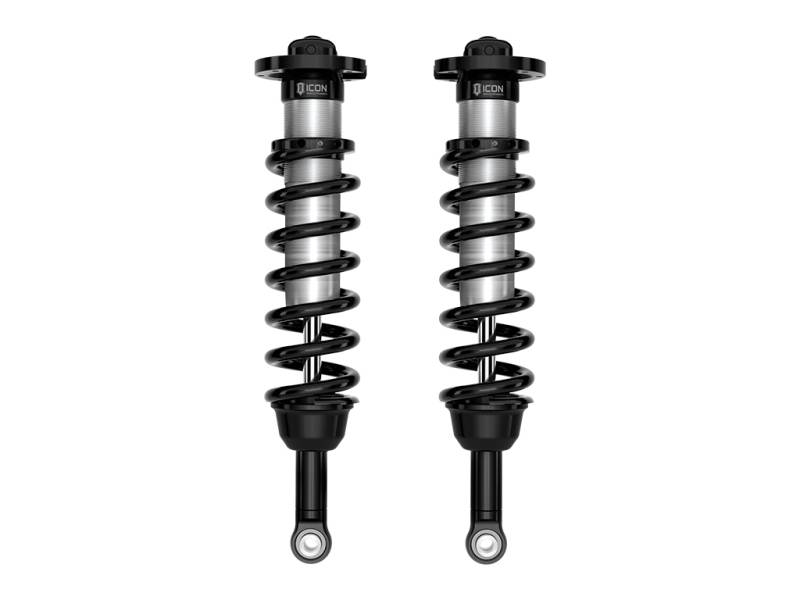

COILOVER KIT ICON 2024+ Toyota Land Cruiser 250 Series Front 2.5 VS IR Coilover Kit

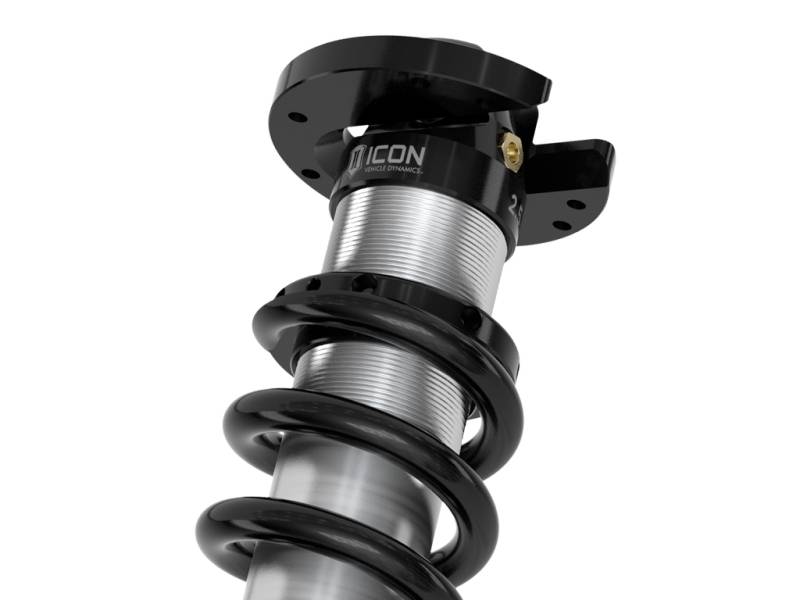

• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• ICON engineered coil springs
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Fully rebuildable and re-tunable

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Toyota Land Cruiser 250 Series. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 250 Series.
