ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS RR Coilover Kit | 58730

APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75” APPLICATION NOTE #110: Trimming Required For Recommended Tire Size APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models

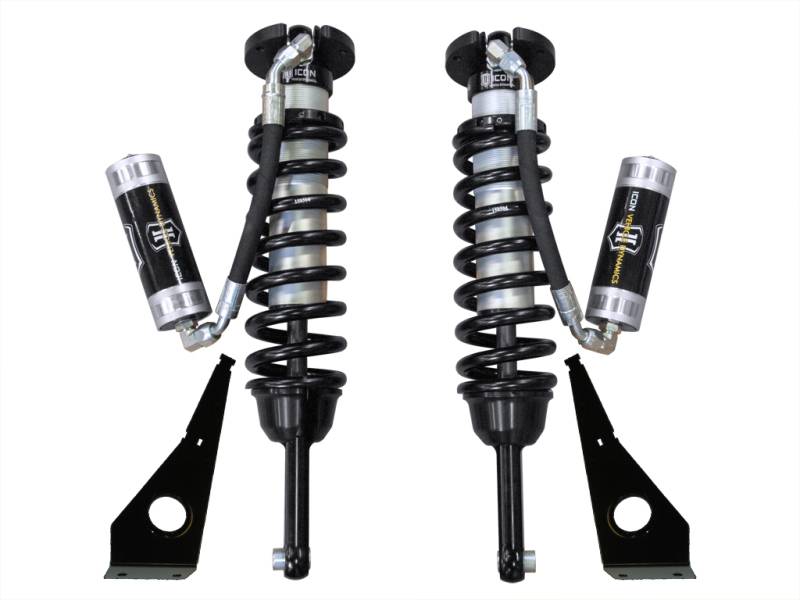

ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS RR Coilover Kit TACOMA COILOVERS

• 250 PSI nitrogen-charged internal reservoir
• Completely re-buildable
• Billet aluminum upper mount
• ICON engineered coil springs
• 5/8" PTFE-lined spherical bearing
• Kit Includes Sway bar relocation brackets
• External Reservoirs Ensures Maximum Cooling
• Hose Length Optimized for Increased Fluid Transfer
• Vehicle specific tuned for superior shock damping and control
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• CAD-plated threaded body

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
