ICON 21-UP Ford Bronco 2-3in Rear 2.5 VS IR COILOVER KIT | 48610

APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiter's Part #611074 For The Rear APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #66: 2 door models will sit taller than 4 door models OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock. TECH NOTE: Not compatible with Bronco Raptor TECH NOTE: Not compatible with Bronco Raptor trim TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number 48613.

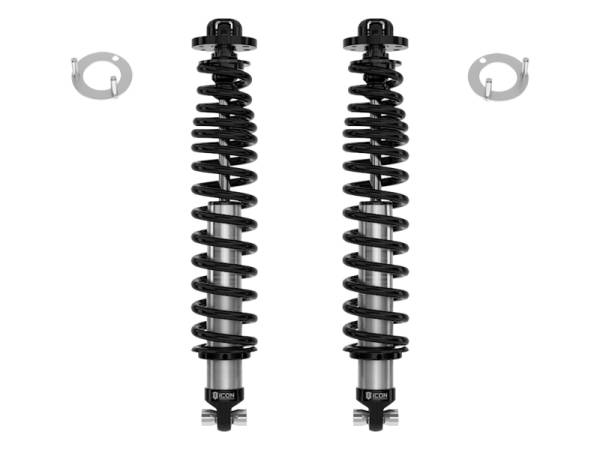

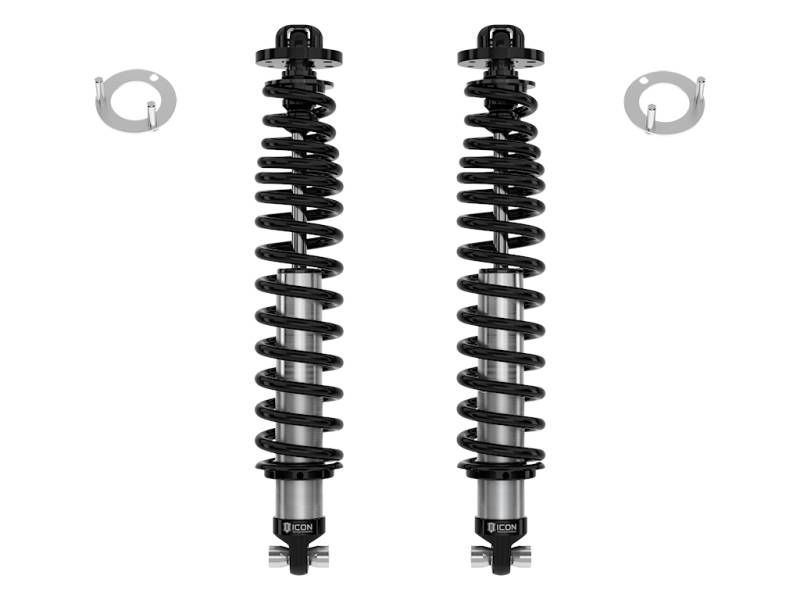

COILOVER KIT ICON 21-UP Ford Bronco 2-3in Rear 2.5 VS IR COILOVER KIT

• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• Unique ICON engineered triple rate coil springs
• Fully rebuildable and re-tunable
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
• Increased wheel travel (up to 14”) and ride quality over stock

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco. ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
