This configuration includes Nitro Series rear shocks paired with a front strut spacer. Nitro Series shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving to maximize performance, and a long-lasting clear anodized finish.
Overview

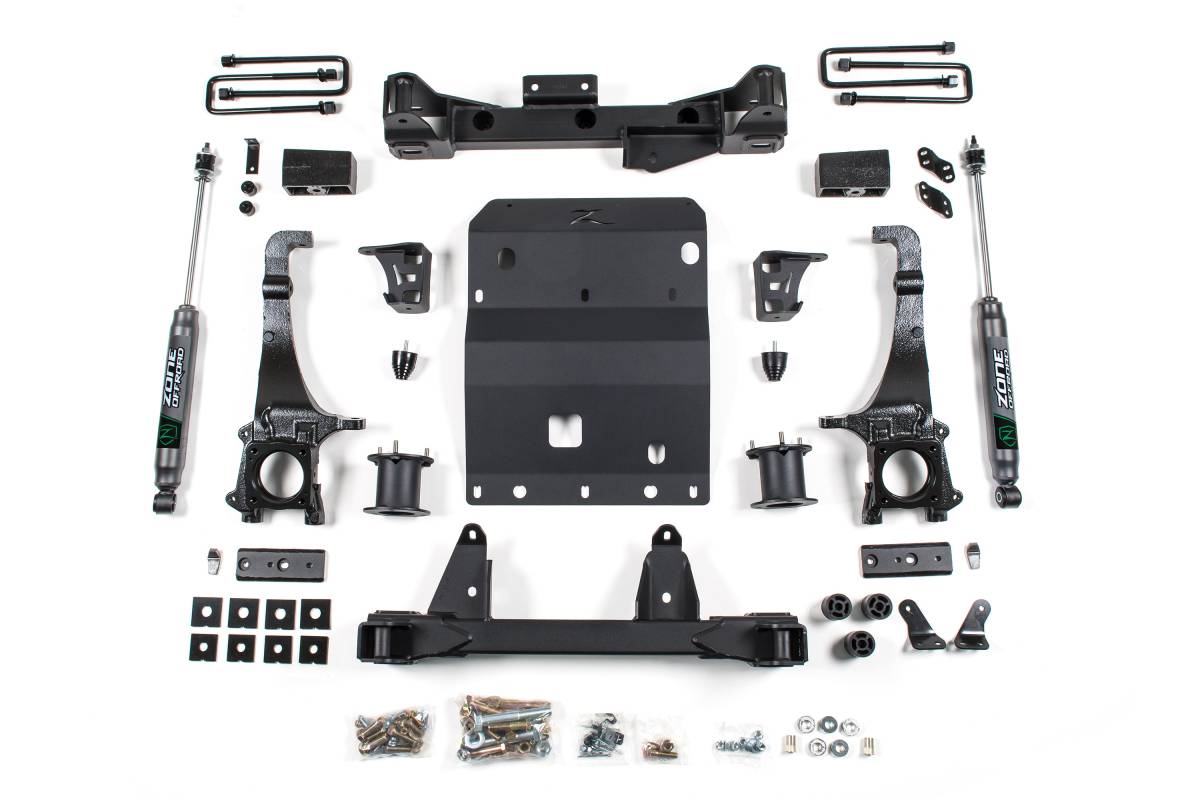

This 4-inch lift kit from Zone Offroad is designed for 2016–2023 Toyota Tacoma 4WD trucks. The kit includes high-strength crossmembers, ductile iron steering knuckles, top-mounted strut spacers, a full-width belly skid plate, rear lift blocks, and all necessary hardware to achieve 4 inches of front lift and 3 inches of rear lift. The kit provides clearance for up to 33-inch tires and is compatible with RWD PreRunner models.
Features
- High-strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers to provide lift and install easily
- Full-width belly skid plate for improved off-road protection
- Rear lift blocks and u-bolts to lift and level the stance
- Bump stop, sway bar, and brake line relocation brackets to correct operating angles
Specifications
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7 hours
- Installation Difficulty: Difficult
Important Notes
- System will work on RWD PreRunner models.
- Will not work on TRD Pro models.
- Requires frame bracket modification.
- 33x12.50 tires require trimming.
- Stock wheels cannot be reinstalled.
- 18-inch or larger wheels must be used.
