6 Inch Lift Kit | Toyota Tacoma (2016-2023) 4WD | Nitro Series Rear / Strut Spacer Front | Zone Offroad

This configuration includes Nitro Series rear shocks paired with a top-mounted strut spacer up front. Nitro Series shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

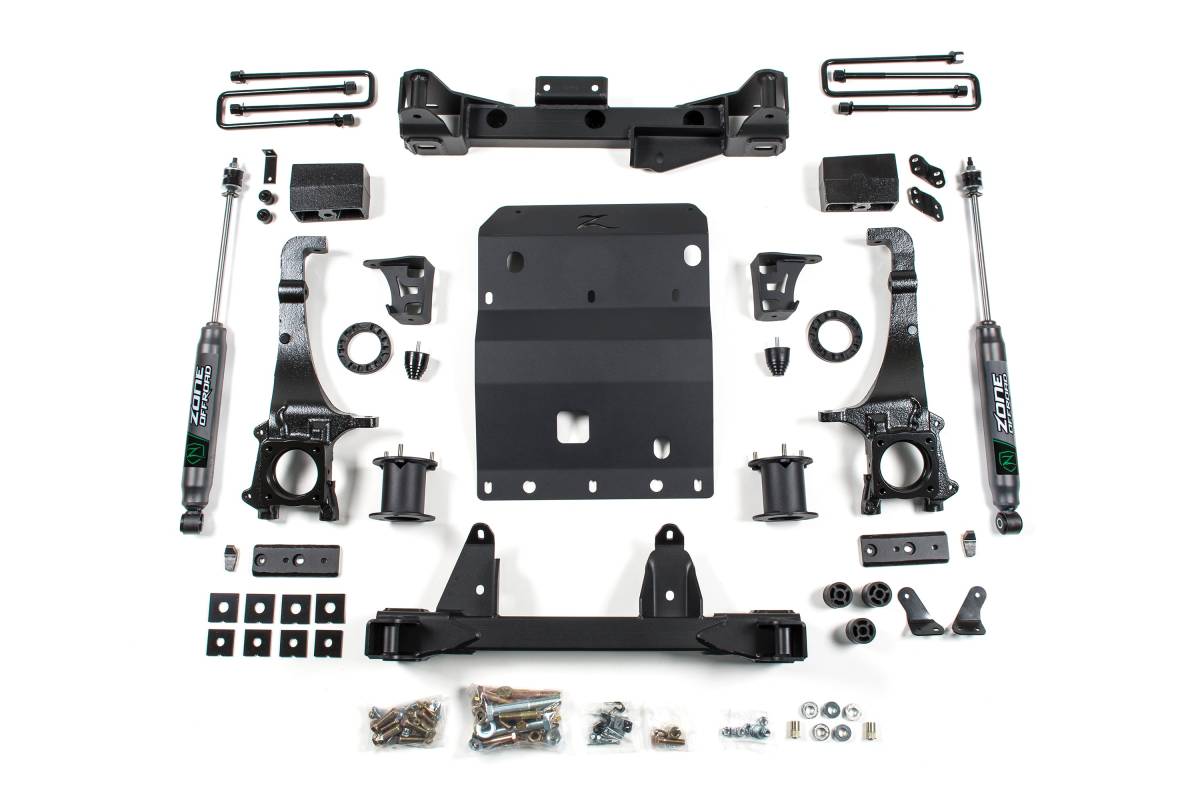

This 6-inch lift kit from Zone Offroad is designed for 2016–2023 Toyota Tacoma 4WD trucks. The kit includes everything needed to achieve the lift, from high-strength crossmembers and ductile iron steering knuckles to strut spacers and a rear block kit to level the stance. The kit provides clearance for up to 35-inch tires.

Features

• High-strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers to provide lift and install easily
• Full-width belly skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Bump stop, sway bar, and brake line relocation brackets to correct operating angles

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 6"
• Rear Lift Method: Block
• Rear Lift Height: 4"
• Shocks Included: Yes
• Tire Clearance: Up to 35"

Installation

• Estimated Time: 7 hours
• Difficulty: Difficult
• Special Tools Required: Strut Compressor

Important Notes

• System will work on RWD PreRunner models.
• Will not work on TRD Pro models.
• Requires frame bracket modification.
• 37x12.50 tires may require minor trimming.
• Stock wheels cannot be reinstalled.
• 18-inch or larger wheels must be used.
