Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

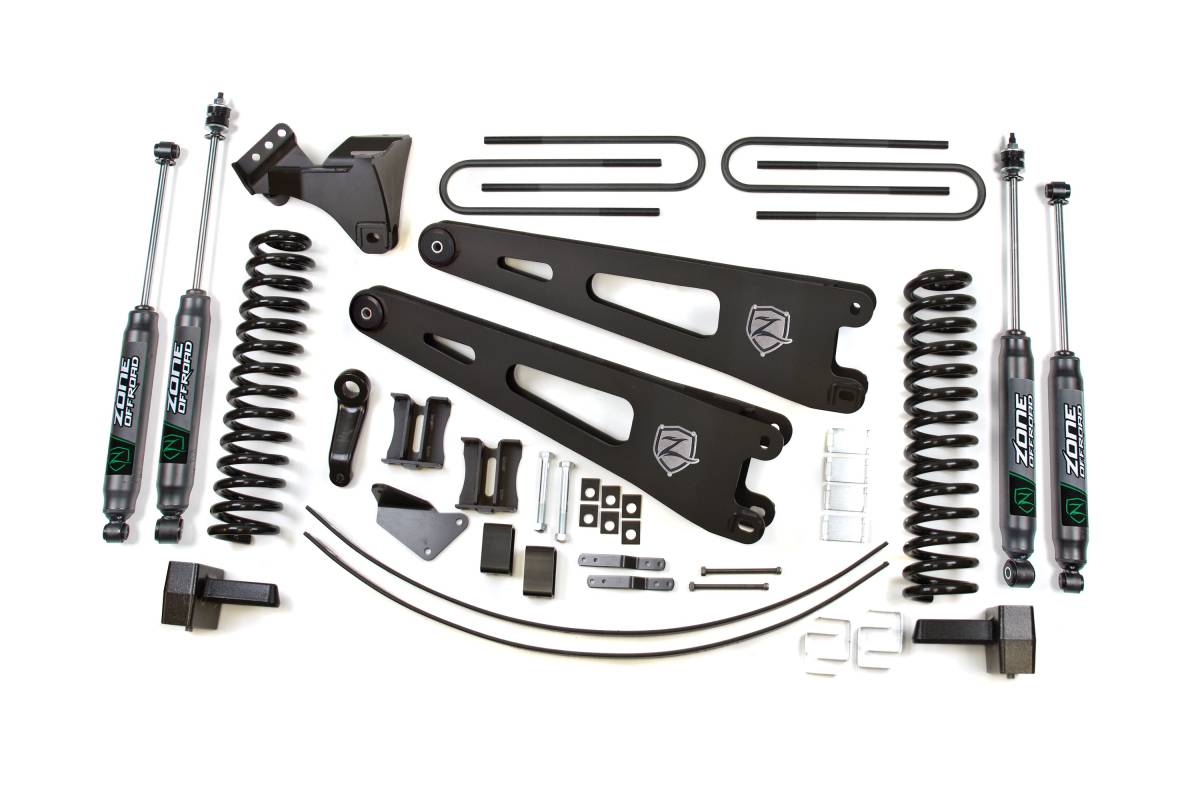

This 6-inch Radius Arm Lift Kit is built for the 2005–2007 Ford F-250 and F-350 Super Duty 4WD (Gas) and provides the clearance needed to run up to 37-inch tires. Designed for everyday driving while remaining capable of handling off-road use, the kit delivers both the stance and the performance upgrades your truck needs.
Features
- Brake line relocation brackets allow re-use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty radius arms improve strength, allow additional tire clearance, and increase ground clearance over radius arm drop kits.
- High-strength, 1/4-inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
- Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation and factory-consistent vehicle handling characteristics.
- Sway bar relocation brackets maintain operating angle for reduced body roll.
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 6 inches
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- If your vehicle is equipped with a 4-inch rear block and top mounted overload or helper spring, longer U-bolts may be required. See kit configurator to add longer U-bolts if needed.
- Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft once lifted. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
