This configuration includes Nitro Series rear shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

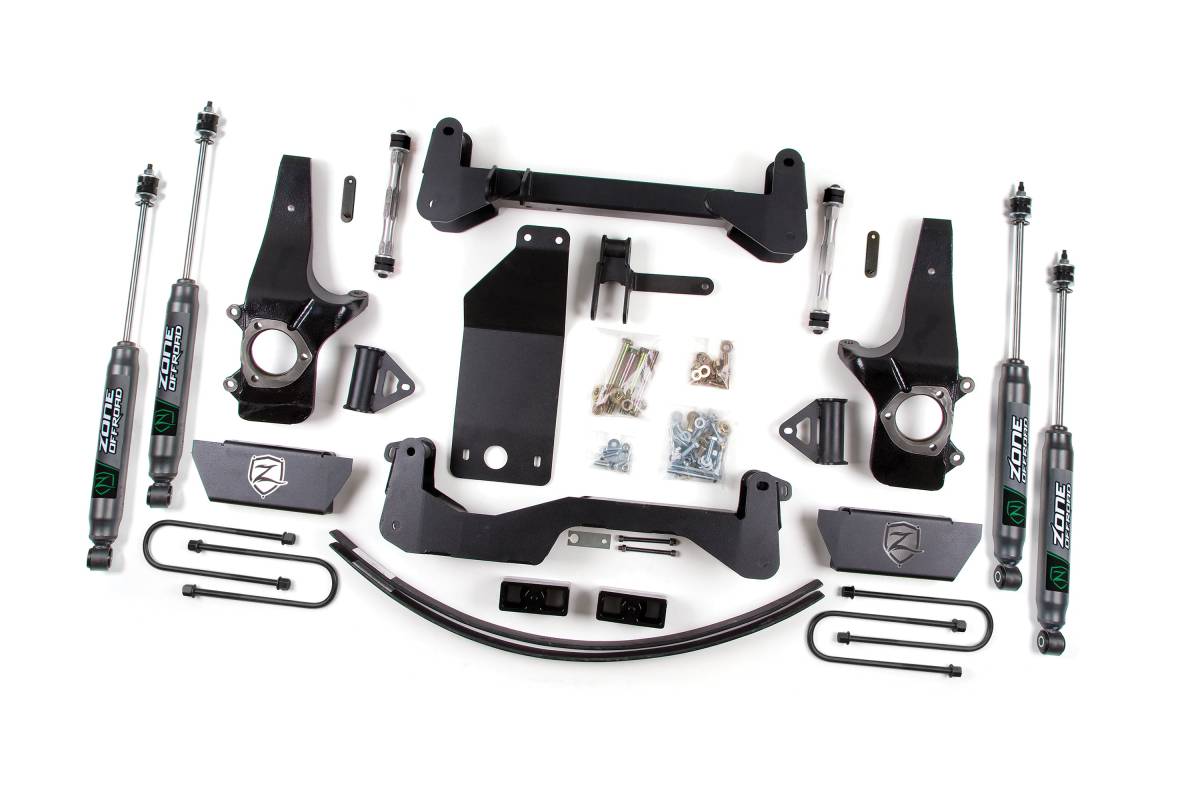

This 6-inch lift kit is designed for 1997–2003 Ford F150 4WD trucks, providing the clearance needed to run 35-inch tires. Built by enthusiasts for enthusiasts, it delivers improved stance and off-road capability while maintaining factory ride quality and handling characteristics.
Features
- 100% bolt-on design for easy installation
- High-strength, 1/4-inch steel construction crossmembers correct lower control arm geometry
- High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
- Maintains factory ride quality and handling characteristics
- Clears 35-inch tires
Specifications
- Front Lift Method: Cross Member & Torsion Drop
- Front Lift Height: 6 inches
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 5 inches
- Shocks Included: Yes
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Torsion Bar Unloading Tool
Important Notes
- Check Alignment Cams: 1997–2003 F150s frequently did not include alignment cams, which are necessary to properly align the vehicle. Make sure to add them if lifting your vehicle.
- Axle side shock mounts may need to be cut and welded farther from the axle tube for clearance to the shock when using the BDS NX2 shocks or FOX shocks mounted body down.
