6 Inch Lift Kit | Dodge Ram 2500/3500 2003-2007 4WD Gas | 3-1/2 Inch Axle w/ Nitro Series Shocks | Zone Offroad

Configured for trucks with a 3-1/2 inch rear axle and includes Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

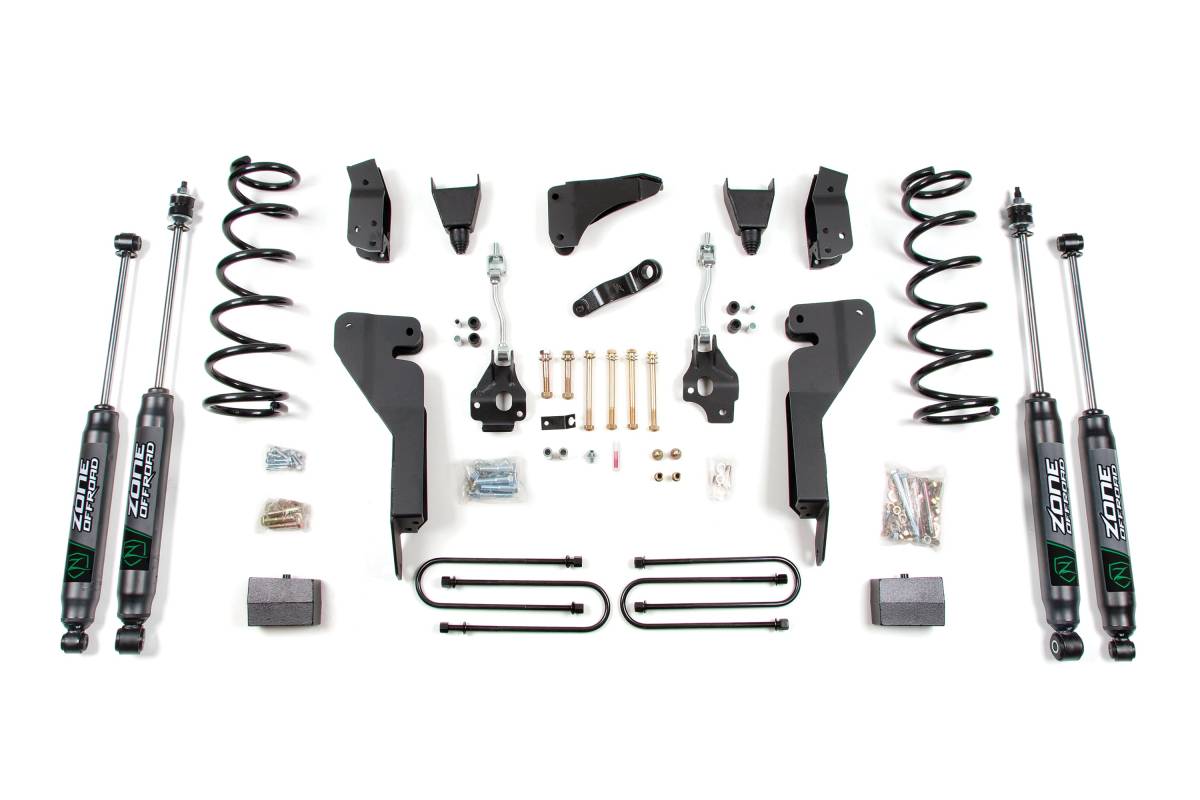

This 6-inch lift kit is designed for 2003–2007 Dodge/Ram 2500/3500 4WD gas-engine trucks. The kit provides 6 inches of front lift and 4 inches of rear lift, with clearance for 37-inch tires. Built by off-road enthusiasts, every component is engineered to deliver both lifted stance and improved suspension performance.

Features

• 100% bolt-on design for easy installation
• High-strength control arm relocation brackets correct suspension geometry and add rigidity
• Shocks included with every configuration

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 6 inches
• Rear Lift Method: Block
• Rear Lift Height: 4 inches
• Shocks Included: Yes

Installation

• Estimated Time: 7 hours
• Difficulty: Moderate

Important Notes

• If the steering gear box has been changed and the sector shaft diameter measures approximately 1-1/2"–1-5/8", part number ZOND8404 is also required.
• This truck was produced with rear axles of differing diameters. Measure the diameter of your rear axle before selecting a kit configuration.
• Although rare, if front driveline vibration occurs after installation, install the optional transfer case indexing ring.
• This kit is not designed for dually models, but may be adapted. Contact customer support for assistance.
• Gas models may require modification to the front exhaust crossover pipe on the driver side when using the transfer case indexing ring.
• Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
• Adding larger-than-stock wheels: Add front bumper spacers for additional clearance, as some wheel and tire combinations may not fully clear the bumper's stock location.
