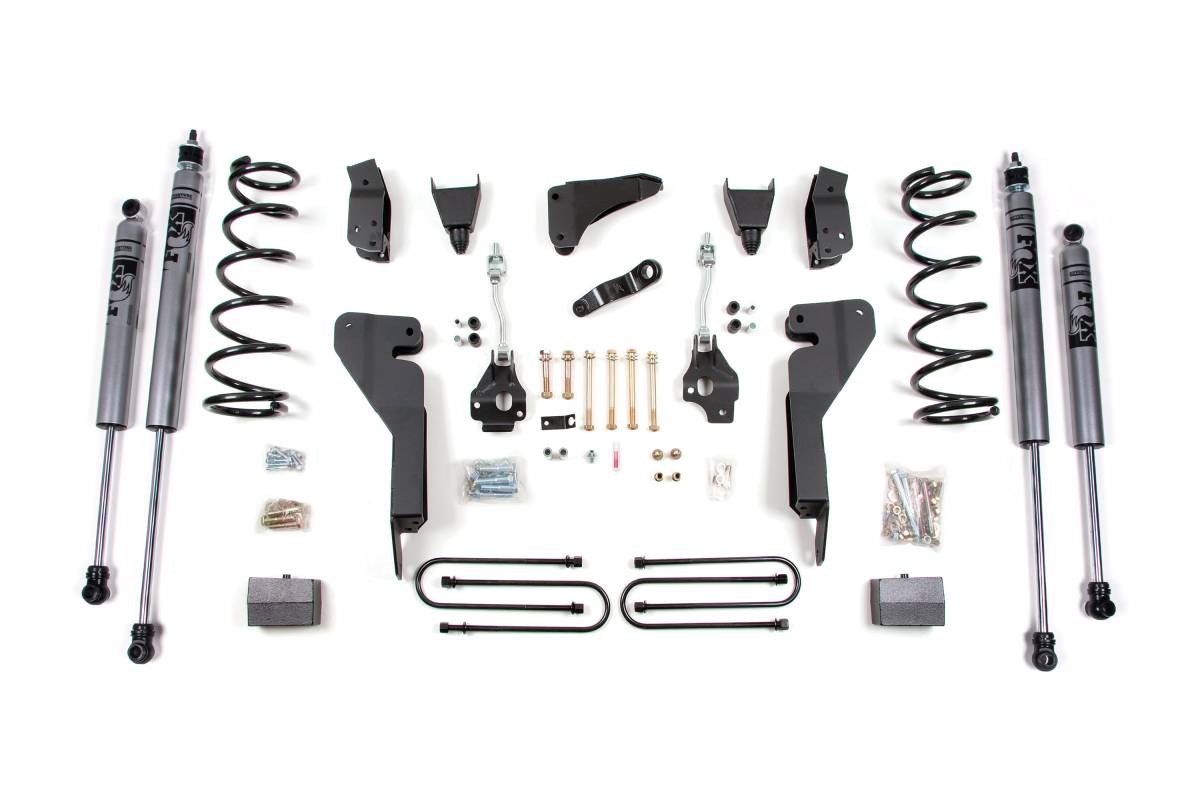

Configured for trucks with a 4 inch rear axle and includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish.
Overview

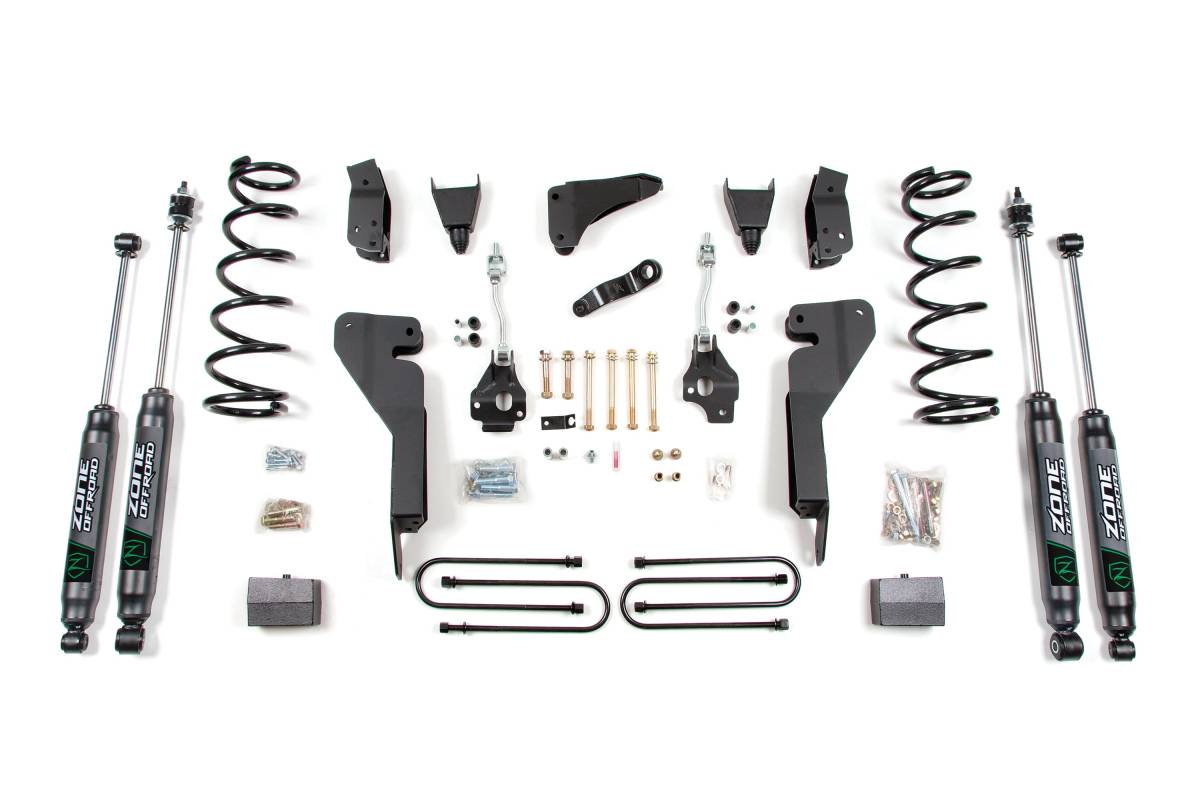

This 6-inch lift kit is designed for 2003–2007 Dodge/Ram 2500/3500 4WD gas-engine trucks. The kit provides 6 inches of front lift and 4 inches of rear lift, with clearance for 37-inch tires. Built by off-road enthusiasts, every component is engineered to deliver both lifted stance and improved suspension performance.
Features
- 100% bolt-on design for easy installation
- High-strength control arm relocation brackets correct suspension geometry and add rigidity
- Shocks included with every configuration
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 6 inches
- Rear Lift Method: Block
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Time: 7 hours
- Difficulty: Moderate
Important Notes
- If the steering gear box has been changed and the sector shaft diameter measures approximately 1-1/2"–1-5/8", part number ZOND8404 is also required.
- This truck was produced with rear axles of differing diameters. Measure the diameter of your rear axle before selecting a kit configuration.
- Although rare, if front driveline vibration occurs after installation, install the optional transfer case indexing ring.
- This kit is not designed for dually models, but may be adapted. Contact customer support for assistance.
- Gas models may require modification to the front exhaust crossover pipe on the driver side when using the transfer case indexing ring.
- Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
- Adding larger-than-stock wheels: Add front bumper spacers for additional clearance, as some wheel and tire combinations may not fully clear the bumper's stock location.
