Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

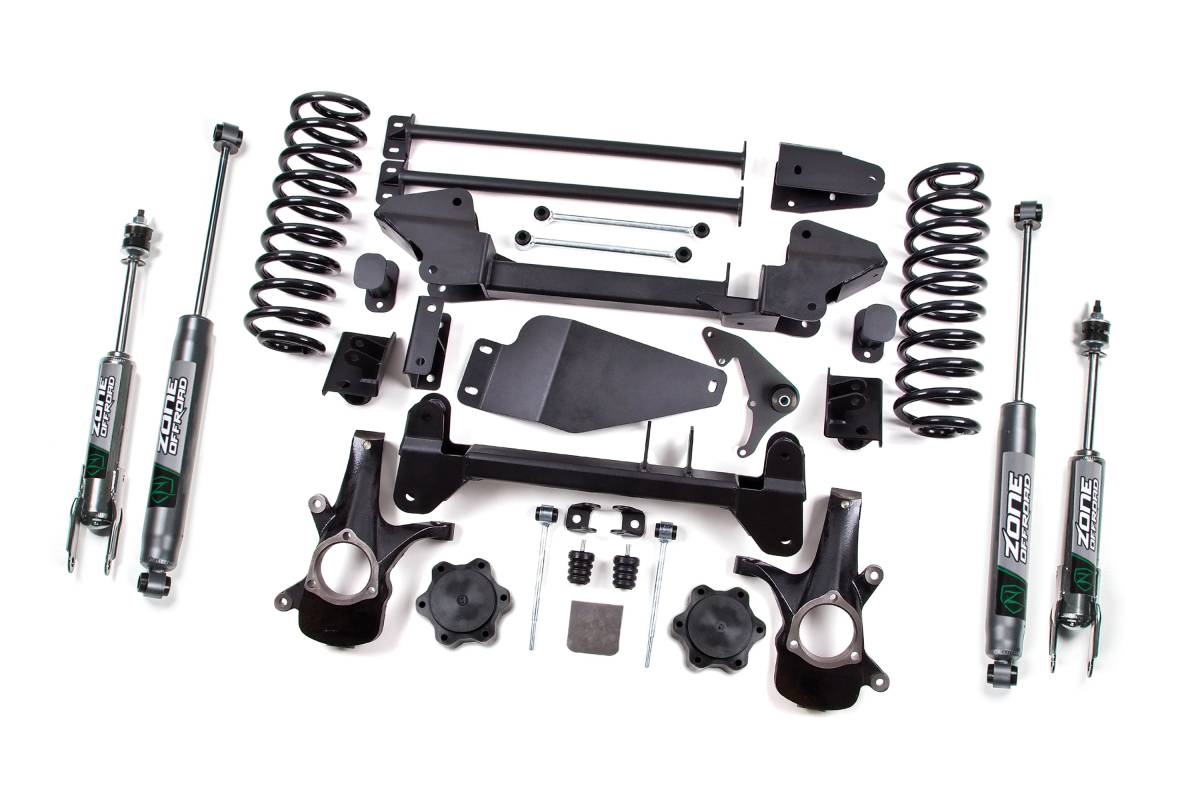

This 6-inch Lift Kit is built for 2000–2006 Chevy/GMC Avalanche, Suburban, Tahoe, and Yukon 1500 4WD models. Designed for everyday driving and capable of handling off-road abuse, this kit provides the clearance needed for 35-inch tires while delivering improved geometry and structural protection.
Features
- Heavy-duty differential skid plate improves off-road protection
- High-strength 1/4-inch steel construction crossmembers correct lower control arm geometry
- High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
- Multi-point differential relocation brackets secure the front differential for improved CV operating angles
Specifications
- Front Lift Method: Cross Member & Torsion Drop
- Front Lift Height: 6 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 5.25 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Moderate
- Special Tools Required: Torsion Bar Unloading Tool
Important Notes
- Does NOT work with all wheel drive (AWD) models.
- Will not fit vehicles equipped with Auto-Ride.
- Use a 1/4-inch wheel spacer to accommodate factory 20-inch wheels; refer to the provided "Max Tire Size" for 20-inch wheels for tire sizing.
- Stock tires and wheels can be installed back on the vehicle, but larger tires cannot be installed on factory wheels.
- Always check for wheel and tire clearance before driving the vehicle.
