Includes Nitro Series rear shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Configured for trucks equipped with Cast Steel factory control arms. Cast steel factory control arms will be replaced with cast steel units.
Overview

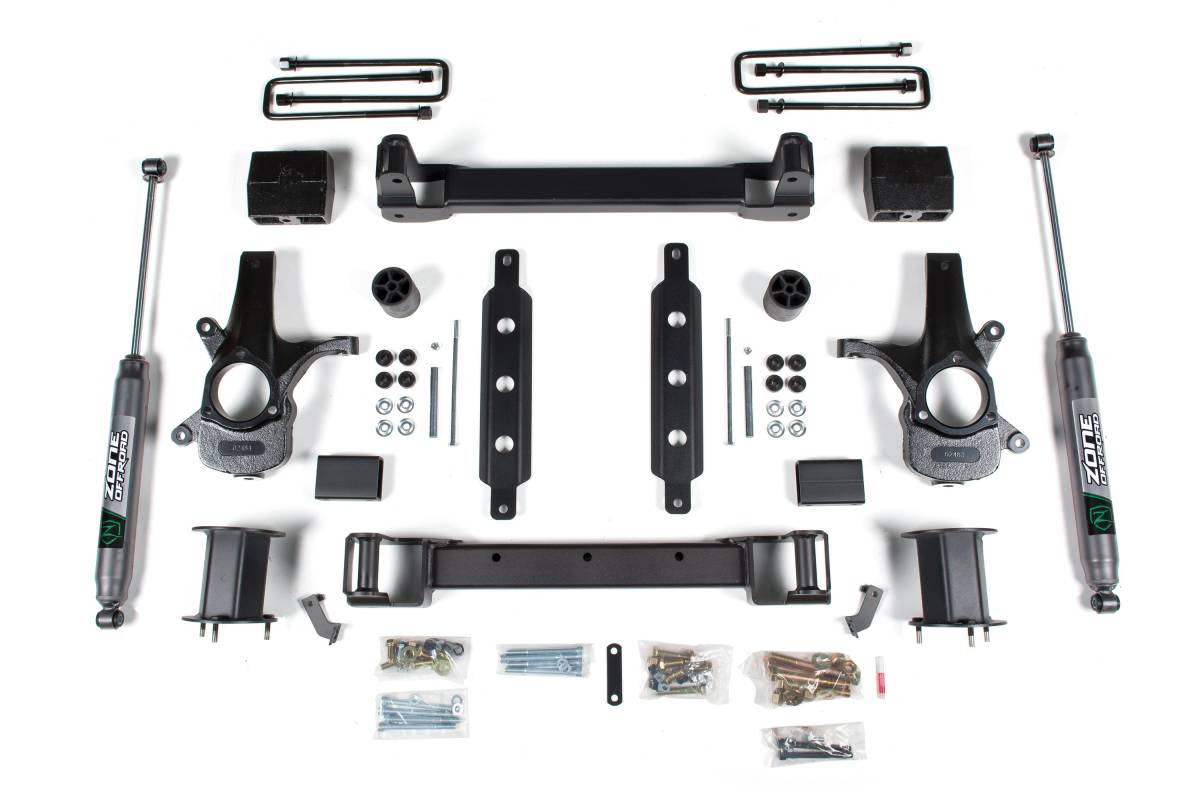

This 4.5-inch lift kit from Zone Offroad is designed for 2014–2018 Chevy Silverado and GMC Sierra 1500 2WD trucks. The kit includes everything needed to achieve the lift, from high-strength crossmembers and steering knuckles to strut spacers and a rear block kit to level out the stance. Clearance is provided for up to 35-inch tires.
Features
- Includes high-strength crossmembers and steering knuckles
- Strut spacers and rear block kit for a leveled stance
- Supports up to 35-inch tires
- Shocks included with every configuration
- Available with FOX Adventure Series or Nitro Series rear shocks
- Available for Cast Steel or Aluminum/Stamped Steel factory control arm configurations
Specifications
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 4.5 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Difficult
Important Notes
- Check Control Arms: GM produced cast steel, stamped steel, and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
- Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod end interference.
- Maximum rear shock length is 29-3/4 inches due to driveshaft to cross member interference.
- Requires 1/4-inch wheel spacer to accommodate stock 20-inch rims.
- To reduce trimming required for tire fitment, a 20-inch wheel with 5.75-inch backspacing is recommended.
