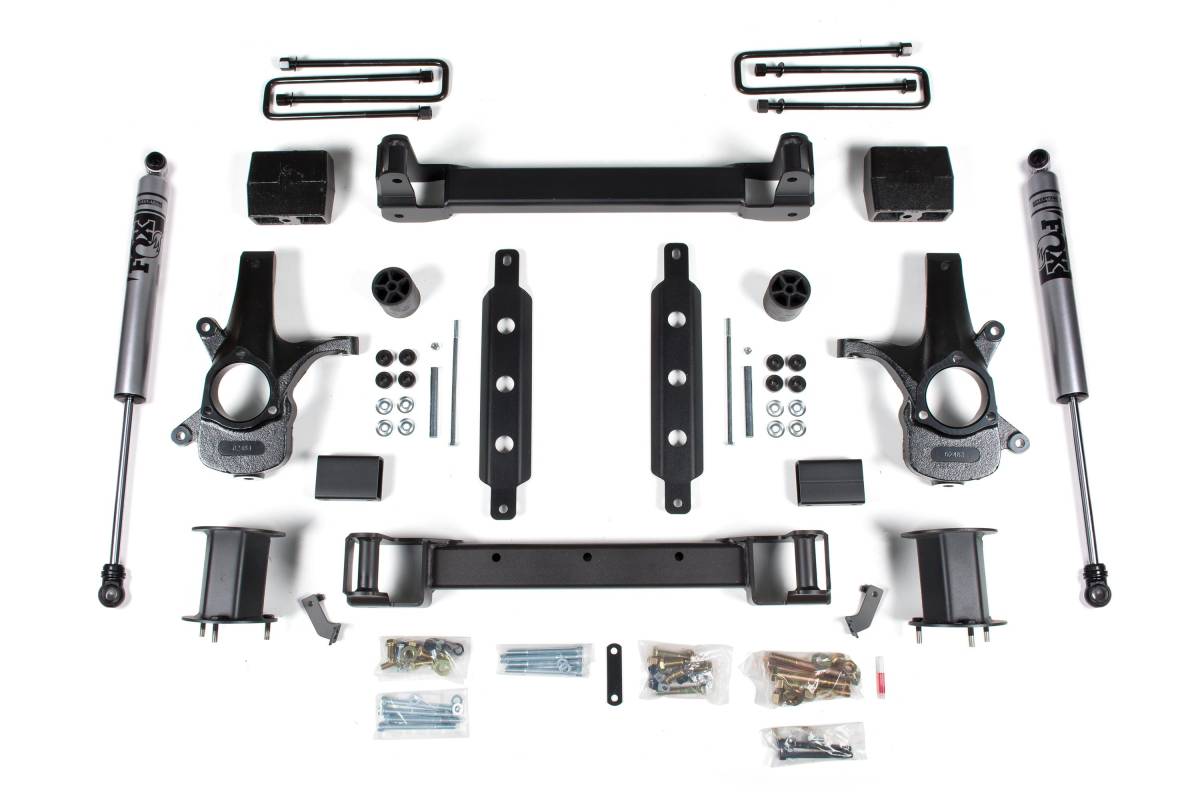

Includes FOX Adventure Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.
Configured for trucks equipped with Cast Steel factory control arms. Cast steel factory control arms will be replaced with cast steel units.
Overview
This 4.5-inch lift kit from Zone Offroad is designed for 2014–2018 Chevy Silverado and GMC Sierra 1500 2WD trucks. The kit includes everything needed to achieve the lift, from high-strength crossmembers and steering knuckles to strut spacers and a rear block kit to level out the stance. Clearance is provided for up to 35-inch tires.
Features
- Includes high-strength crossmembers and steering knuckles
- Strut spacers and rear block kit for a leveled stance
- Supports up to 35-inch tires
- Shocks included with every configuration

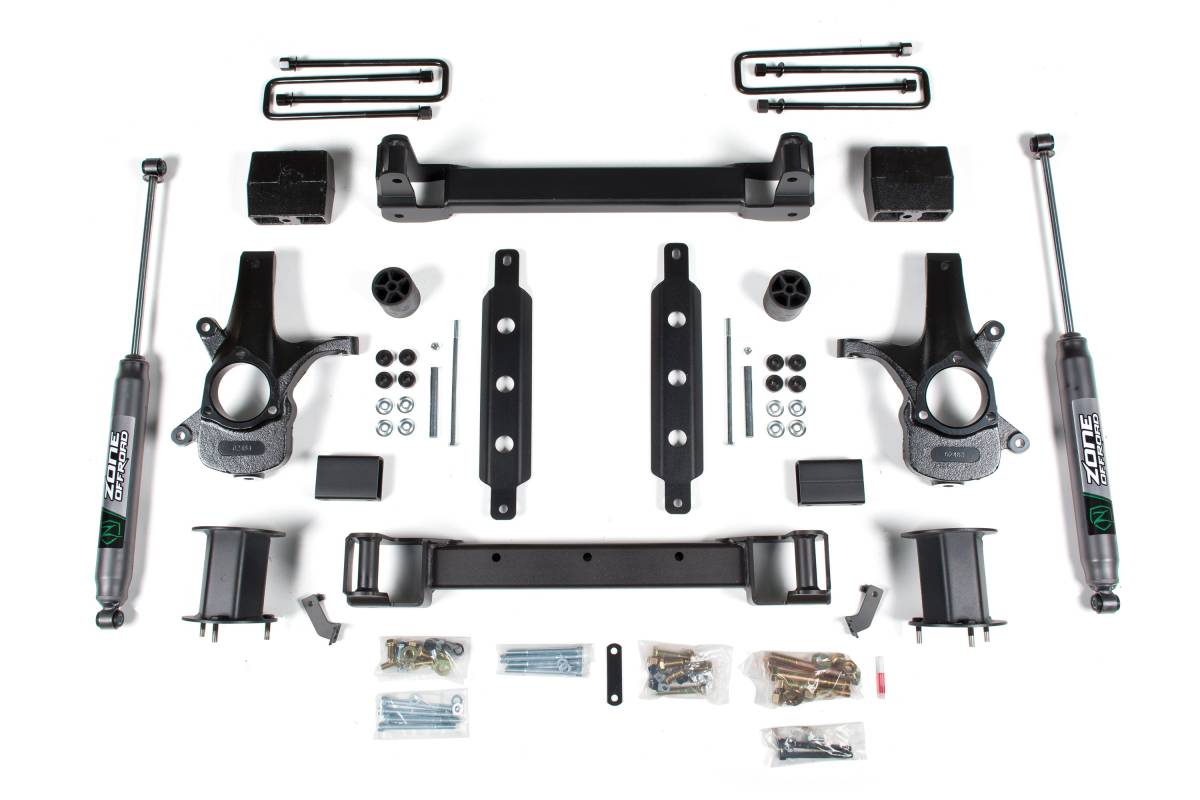

- Available with FOX Adventure Series or Nitro Series rear shocks
- Available for Cast Steel or Aluminum/Stamped Steel factory control arm configurations
Specifications
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 4.5 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Difficult
Important Notes
- Check Control Arms: GM produced cast steel, stamped steel, and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
- Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod end interference.
- Maximum rear shock length is 29-3/4 inches due to driveshaft to cross member interference.
- Requires 1/4-inch wheel spacer to accommodate stock 20-inch rims.
- To reduce trimming required for tire fitment, a 20-inch wheel with 5.75-inch backspacing is recommended.
