6.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (2014-2018) 2WD | Cast Steel Arms | Strut Spacer & FOX Adventure Rear | Zone Offroad

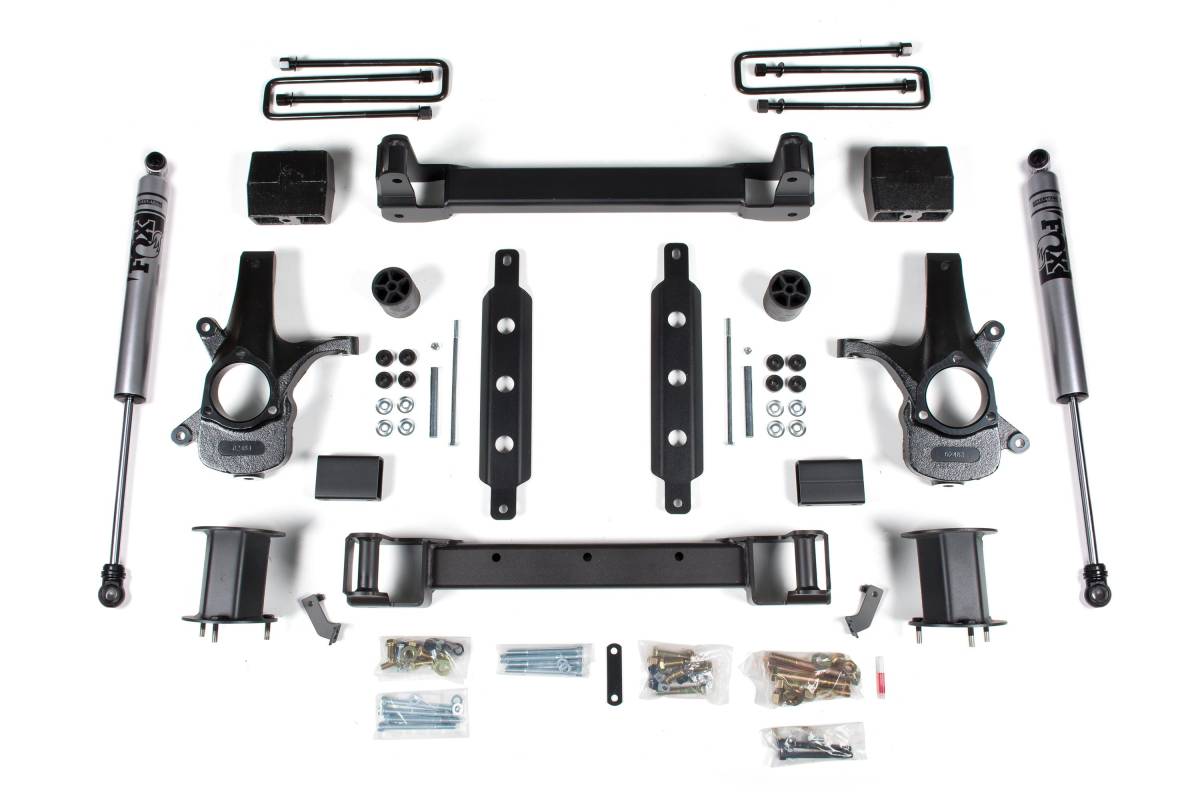

Configured for trucks with Cast Steel control arms. Includes top-mounted strut spacers (front) and FOX Adventure Series rear shocks. The FOX Adventure Series features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a gray powder coat finish. Uses the OE strut to maintain factory front ride quality.

Overview

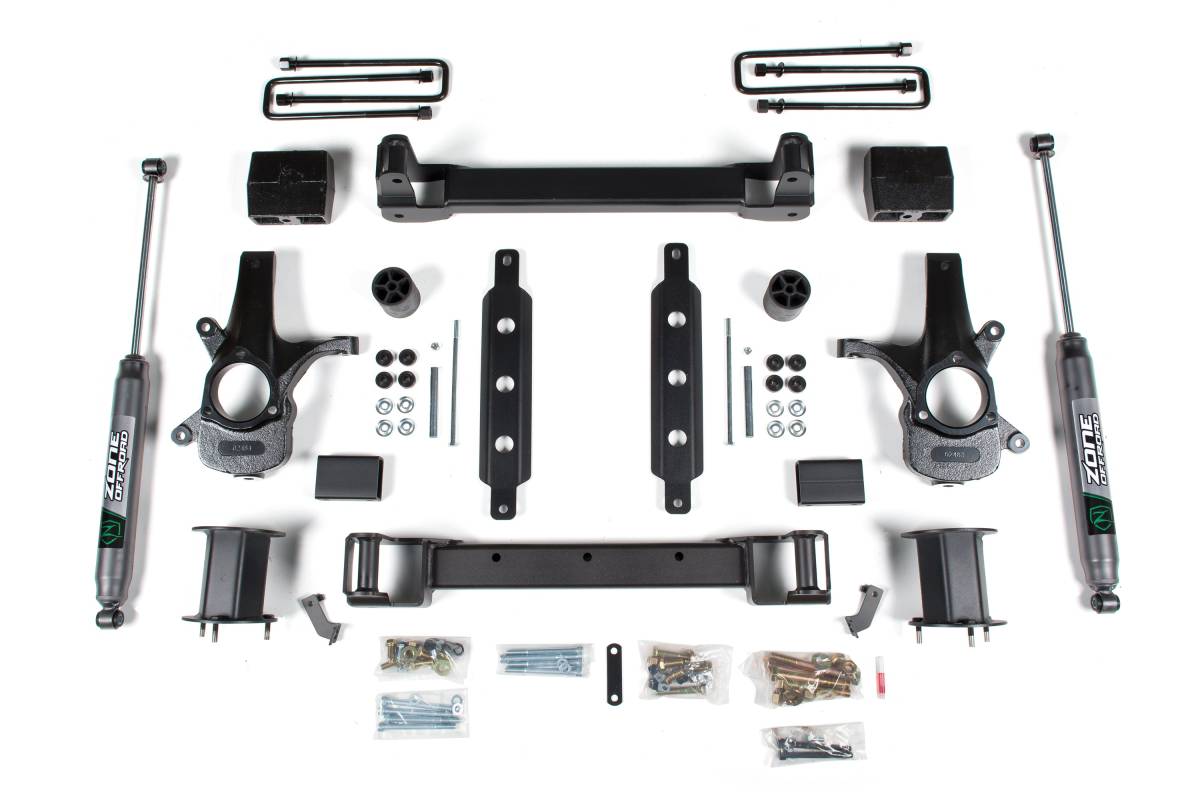

This 6.5-inch lift kit from Zone Offroad is designed for 2014–2018 Chevy Silverado and GMC Sierra 1500 2WD trucks. The kit includes everything needed to lift and level the stance, from high-strength crossmembers and ductile iron steering knuckles to strut spacers and a rear block kit. The result is increased ground clearance with fitment for up to 35-inch tires.

Features

• High-strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain FMVSS No. 126 (ESC System) compatibility
• Top-mounted strut spacers to provide front lift and install easily
• Rear 5-inch lift block and U-bolt kit to lift and level the stance
• Sway bar, bracket line, and bump stop relocation brackets to correct operating angles
• Allows clearance for up to 35-inch tires

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 6.5 inches
• Rear Lift Method: Block
• Rear Lift Height: 5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 8 hours
• Installation Difficulty: Difficult

Important Notes

Check Control Arms: GM produced cast steel, stamped steel, and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference. Maximum rear shock length is 29-3/4" due to driveshaft to cross member interference. Requires 1/4" wheel spacer to accommodate stock 20" rims. To reduce trimming required for tire fitment, a 20" wheel with 5.75" backspacing is recommended.
