6 Inch Lift Kit | 1973-1976 Chevy/GMC K1500 Truck & SUV 4WD | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks. The Nitro Series shocks feature a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a 2-inch diameter black powder-coated steel body, and a race-developed high-flow piston with application-specific valving and a long-lasting silver coated finish.

• Front Lift Method: Leaf Spring | Front Lift Height: 6"
• Rear Lift Method: Block & Add-A-Leaf | Rear Lift Height: 6"
• Shocks Included: Yes

Overview

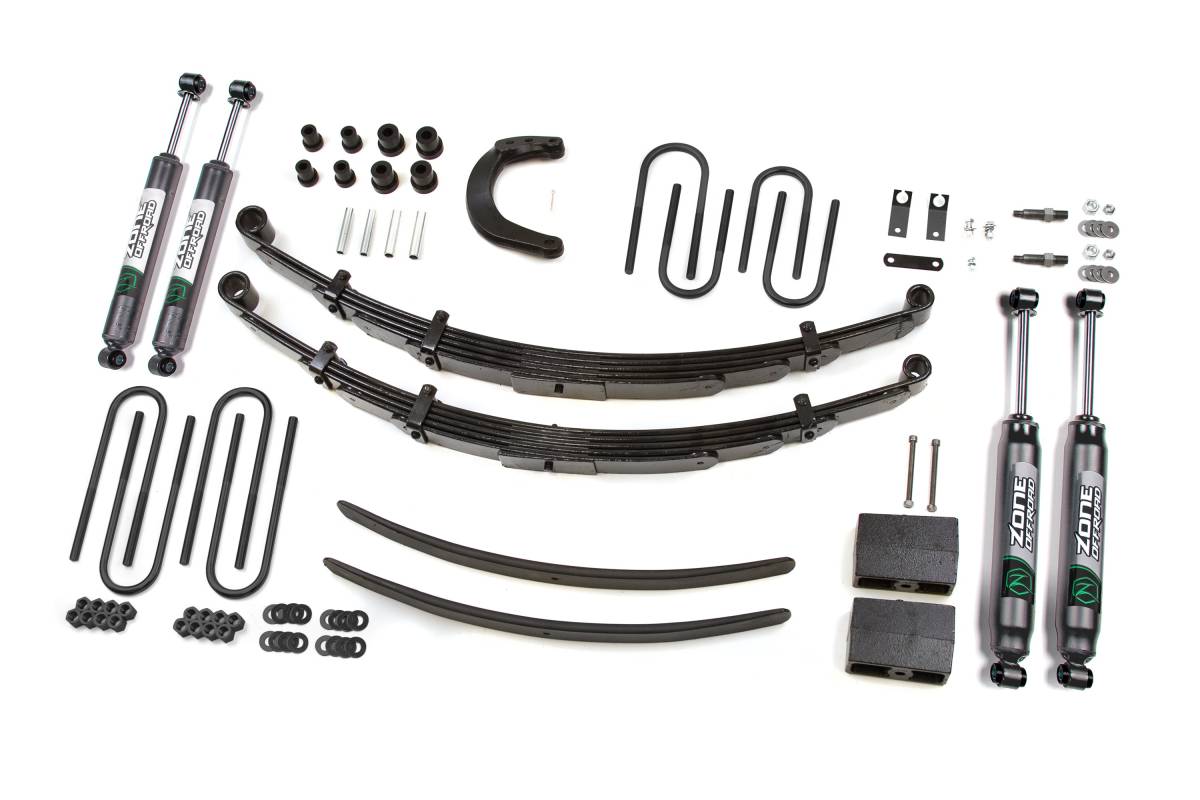

This 6-inch lift kit is designed for 1973–1976 Chevy/GMC K1500 trucks and SUVs (4WD). The kit provides the lift needed to clear up to 37-inch tires and includes all components required for a complete installation, delivering improved ground clearance alongside daily driving reliability.

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• High-strength, black e-coated U-bolts
• Rear Add-A-Leaf Kit provides additional lift and improves weight capacity
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation of the steering system and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Leaf Spring
• Front Lift Height: 6"
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 6"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 4 hours
• Installation Difficulty: Moderate

Important Notes

Auxiliary Shocks: If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit. Add in configuration / checkout. On some models, the front driveshaft may need to be clearanced at the double cardan joint to prevent binding. Some models may require the transfer case drop kit C5001 listed in the accessories to alleviate driveshaft vibration. The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.
