Nitro Series Shock Absorber | Vehicle Specific | 22.95 x 14.65 x 2 in | Zone Offroad

Overview

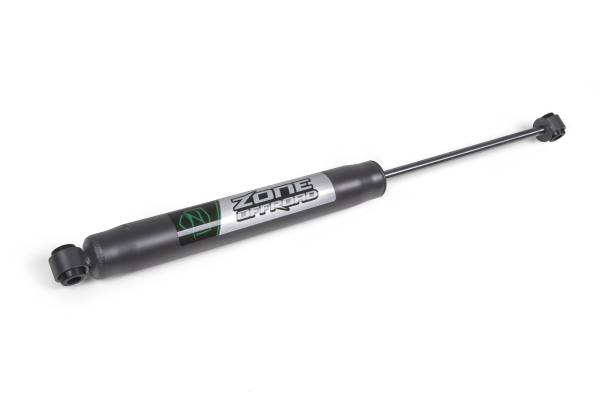

The Zone Nitro Series shock absorber delivers stock-like control and performance through fully displaced valving for improved compression and extension travel. Vehicle-specific valving is pressurized with 50 psi nitrogen gas, ensuring split-second response and reduced aeration. A special Fluon-banded piston rounds out the design for consistent, reliable performance. Shock absorbers are sold individually and include bushings and sleeves.

Features

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for on- and off-road performance
• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
• Fluon-banded piston for consistent performance
• Pressurized with 50 psi nitrogen gas for split-second response and reduced aeration
• Bushings and sleeves included for direct replacement installation
• Sold individually

Specifications

• Extended Length: 22.95 in
• Collapsed Length: 14.65 in
• Body Diameter: 2 in
• Shaft Diameter: 14mm heavy chromed steel
• Body Material: Steel alloy with dual welded ends
• Nitrogen Charge: 50 psi

Installation

• Estimated Installation Time: 30 minutes
• Difficulty: Easy
• Tools Required: Standard wrenches
