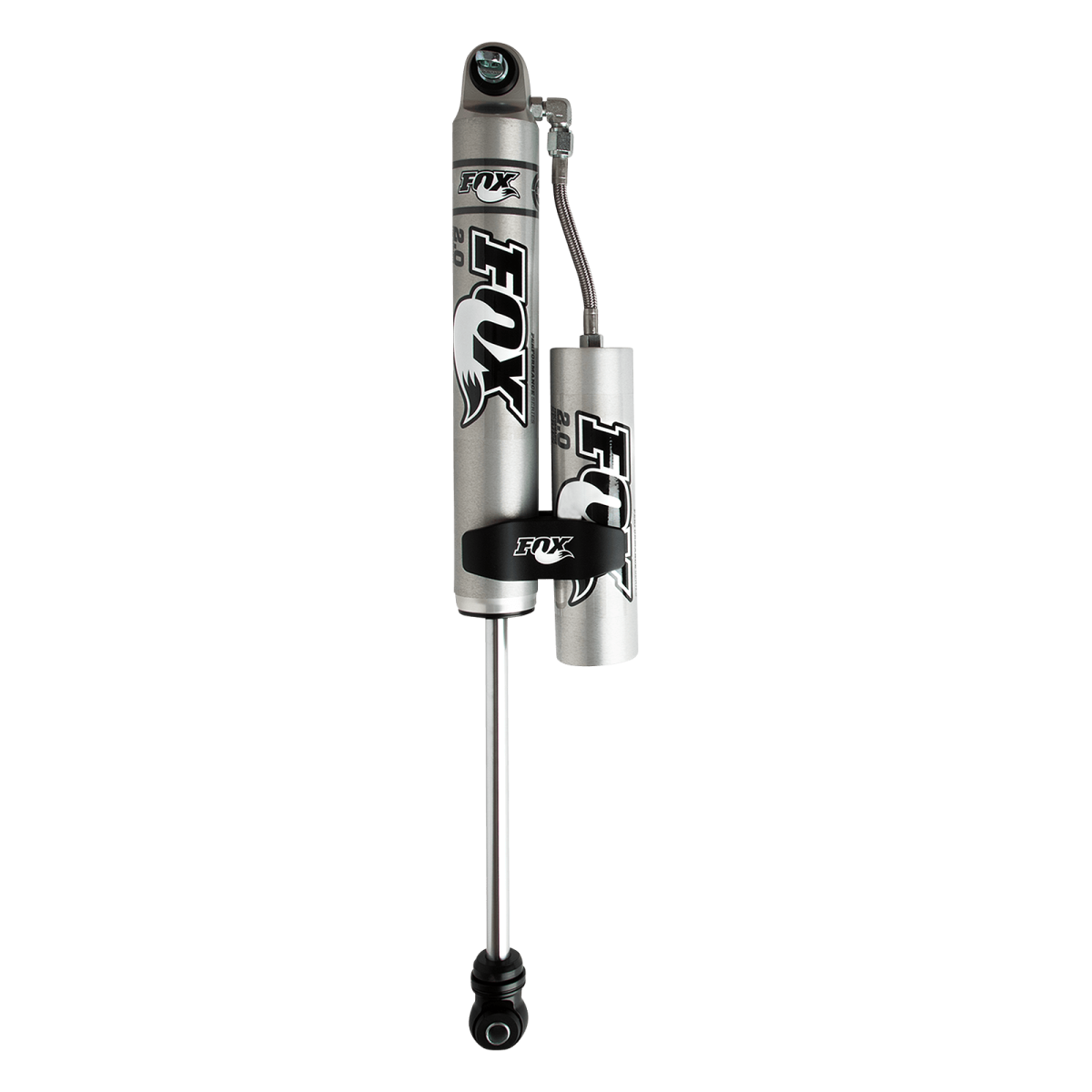

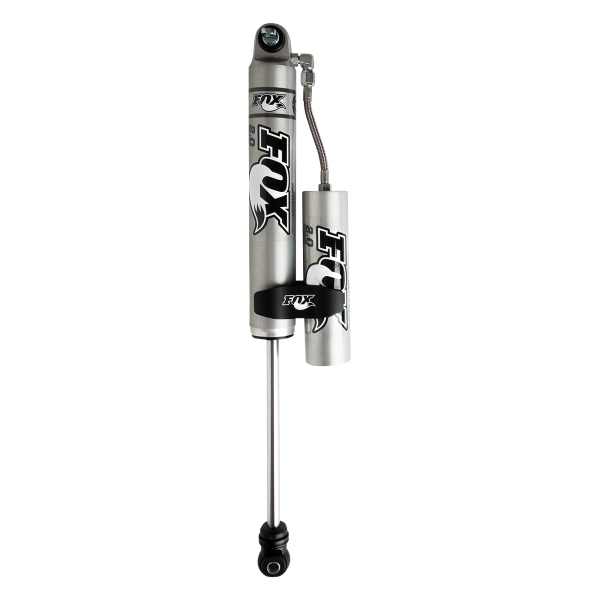

BDS FOX 2.0 Performance Series Rear Shock w/ Remote Reservoir | 1.5–3.5 Inch Lift | 2007–2018 Jeep Wrangler JK

Overview

Upgrade the on-road comfort and off-road control of your 2007–2018 Jeep Wrangler JK with FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit 1.5- to 3.5-inch lift suspension kits, the aluminum-bodied Performance Series 2.0 Reservoir smooth-body shock delivers FOX's race-developed performance in an affordable, bolt-on package. The external reservoir increases oil and nitrogen capacity while providing a race-inspired appearance. The Internal Floating Piston (IFP) eliminates oil aeration, allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston, paired with application-specific valving, delivers predictable ride quality capable of handling the roughest road conditions.

Features

• 2-inch impact-extruded and CNC-machined 6061-T6 clear-anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome-plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• External remote reservoir design with billet mounting clamp

Specifications

• Position: Rear
• Type: Smooth Body IFP
• Lift Height: 0–3.5 inches
• Compressed Length: 14.9 inches
• Extended Length: 24.52 inches
• Travel Length: 9.62 inches
• Shaft Diameter: 5/8 inch
• Upper Mount Type: Bar Pin (BP4)
• Lower Mount Type: Eyelet
• Finish: Clear-anodized
• Gas Charged: Yes
• Adjustable Damping: No

Installation

• Estimated Time: 1 hour
• Difficulty: Easy
