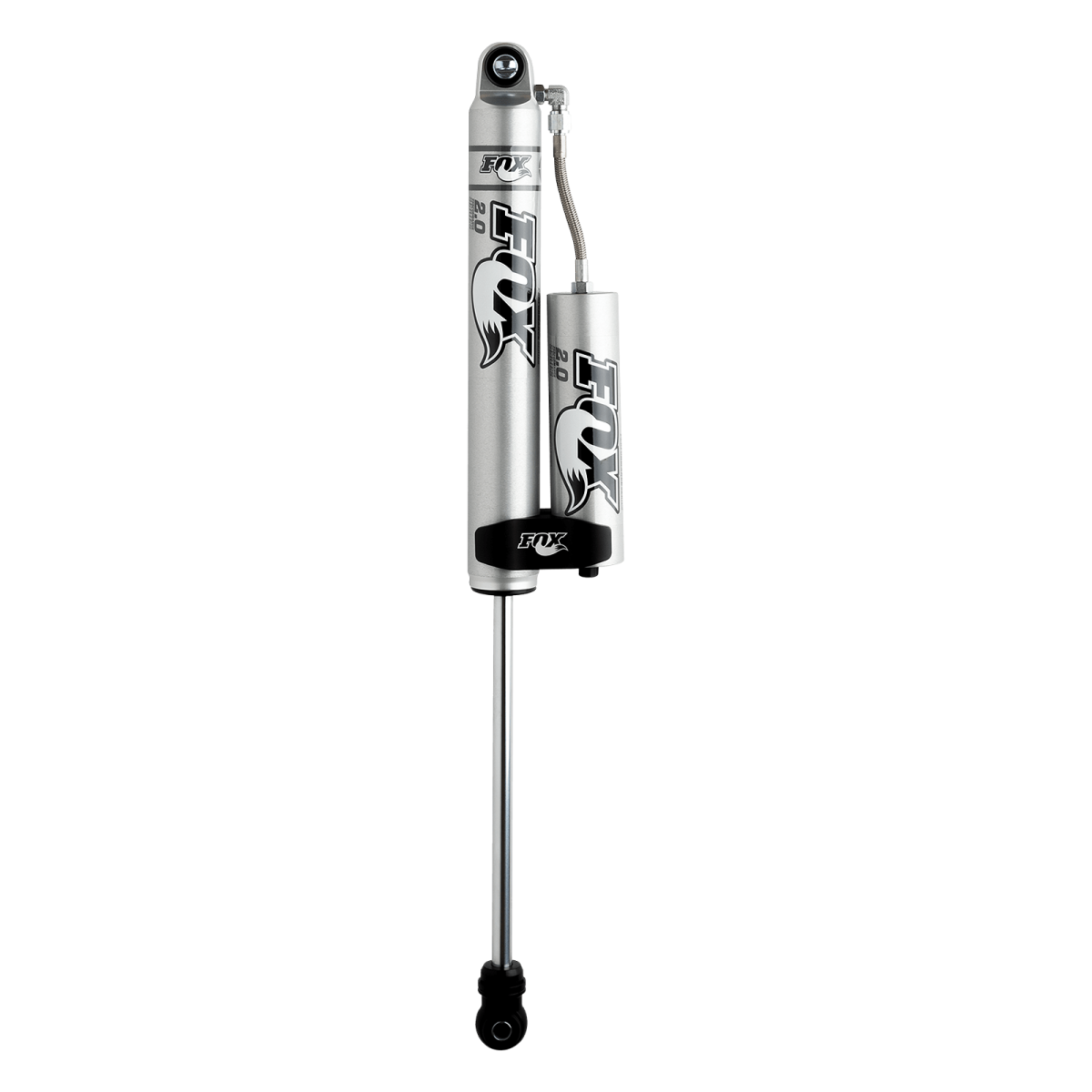

BDS FOX 2.0 Performance Series Rear Shock w/ Remote Reservoir | 4-6 Inch Lift | 2007-2018 Jeep Wrangler JK

Overview

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK with FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit 4- to 6-inch lift suspension kits, the aluminum-bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry-leading, race-developed performance in an affordable, hassle-free bolt-on package. The external reservoir increases oil and nitrogen capacity while delivering a striking race-inspired look. The Internal Floating Piston (IFP) eliminates oil aeration, allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston, matched with application-specific valving, provides predictable ride quality capable of handling the roughest road conditions.

Features

• 2-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• External remote reservoir design with billet mounting clamp

Specifications

• Position: Rear
• Lift Height: 4–6 inches
• Type: Smooth Body IFP
• Compressed Length: 16.9 inches
• Extended Length: 28.52 inches
• Travel Length: 11.62 inches
• Shaft Diameter: 5/8 inch
• Upper Mount Type: Bar Pin (Code: BP4)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Clear-anodized
• Adjustable Damping: No
• Gas Charged: No

Installation

• Estimated Time: 1 hour
• Difficulty: Easy
