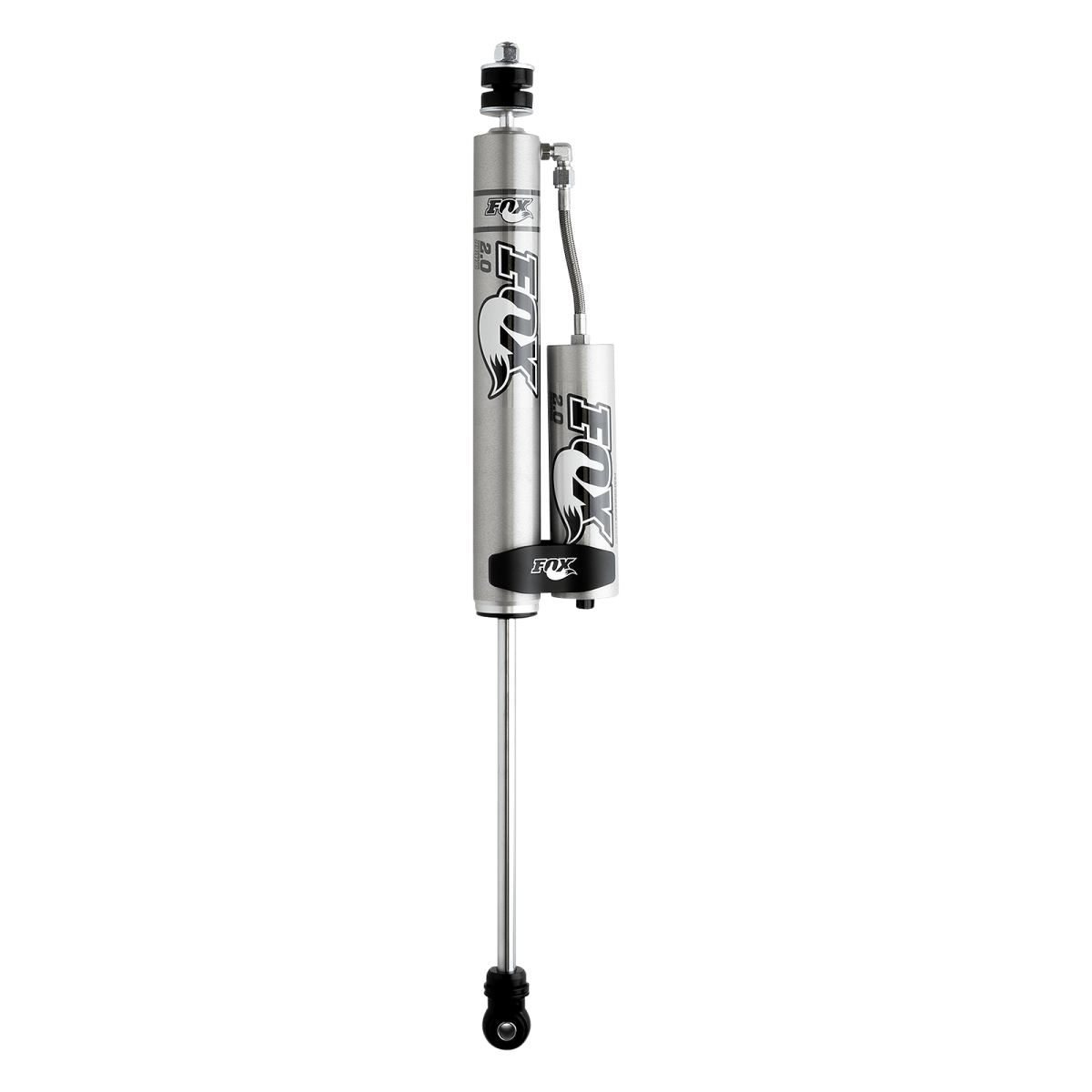

BDS FOX 2.0 Performance Series Front Shock w/ Remote Reservoir | 4-6 Inch Lift | 2007-2018 Jeep Wrangler JK

Overview

Upgrade the on-road comfort and off-road control of your 2007–2018 Jeep Wrangler JK with FOX Performance Series 2.0 Remote Reservoir front shocks. Designed to fit 4- to 6-inch lift suspension kits, the aluminum-bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's race-developed performance in an affordable, bolt-on package. The external reservoir increases oil and nitrogen capacity while providing a distinctive race-inspired appearance. The Internal Floating Piston (IFP) eliminates oil aeration, allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston paired with application-specific valving delivers a predictable ride quality capable of handling the roughest road conditions.

Features

• 2-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• External remote reservoir design with billet mounting clamp

Specifications

• Position: Front
• Lift Height: 4–6 inches
• Type: Smooth Body IFP
• Compressed Length: 16.75 inches
• Extended Length: 28.37 inches
• Travel Length: 11.62 inches
• Shaft Diameter: 5/8 inch
• Upper Mount Type: Stem (Code: Stem)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Clear-Anodized
• Adjustable Damping: No
• Gas Charged: No

Installation

• Estimated Installation Time: 1 hour
• Installation Difficulty: Easy
