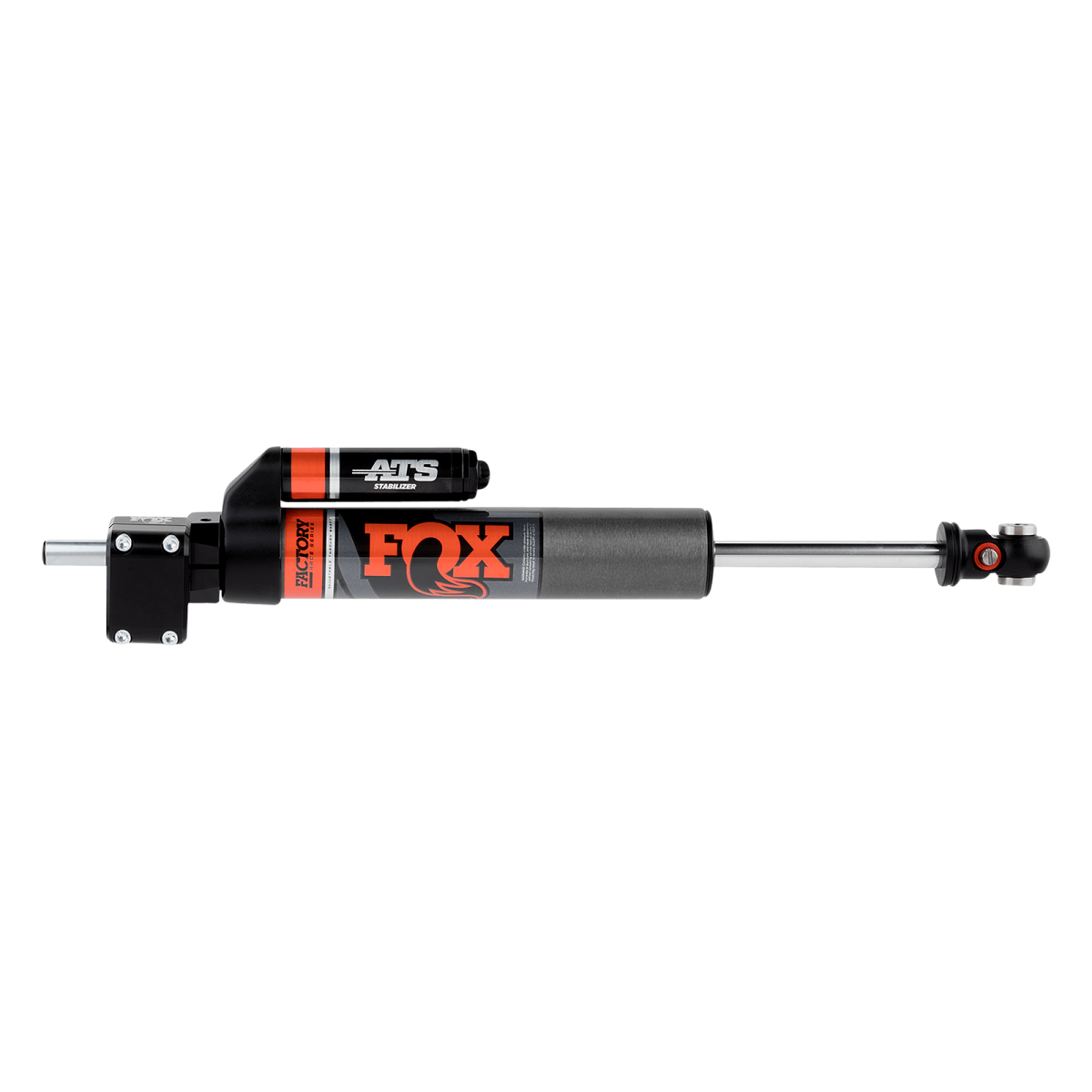

BDS FOX 2.0 ATS Steering Stabilizer | Factory Race Series | 0–2.5 Inch Lift | Ford F250/F350 Super Duty (2017–2024)

Overview

The Factory Race Series 2.0 Steering Stabilizer ATS is designed specifically for 2017 and newer Ford Super Duty trucks equipped with a BDS 0" to 2.5" lift kit. This high-performance stabilizer features a revolutionary Adjustable Through Shaft (ATS) design that ensures smooth fluid flow throughout the stabilizer's entire range of motion, regardless of steering direction, eliminating the push and pull forces typical of conventional single-direction stabilizers. An external piggyback reservoir provides additional fluid capacity, while the Internal Floating Piston (IFP) separates fluid from the nitrogen gas charge to prevent cavitation and maintain consistent performance. A convenient external adjuster offers 24 clicks of fine-tune damping adjustment to suit your specific driving style and setup. This single, bolt-on stabilizer reduces unwanted steering feedback for a smoother, more controlled driving experience on rough terrain and highway alike.

Features

• Adjustable Through Shaft (ATS) design for neutral and consistent damping in both steering directions
• Performance tuned for vehicle-specific applications
• Aluminum body dissipates heat faster than steel
• External piggyback reservoir with compression adjuster for additional fluid capacity
• Internal Floating Piston (IFP) separates fluid from nitrogen gas charge to prevent cavitation
• 24 clicks of external fine-tune damping adjustment
• Single, bolt-on installation

Specifications

• Compressed Length: 14.09"
• Extended Length: 22.19"
• Cylinder Diameter: 2.000"
• Cylinder Material: Aluminum
• Lower Mount Type: Eyelet
• Upper Mount Type: Special

Installation

• Estimated Installation Time: 1 hour
• Installation Difficulty: Moderately Easy

Important Notes

Fits a BDS 0–2.5" lift only.
