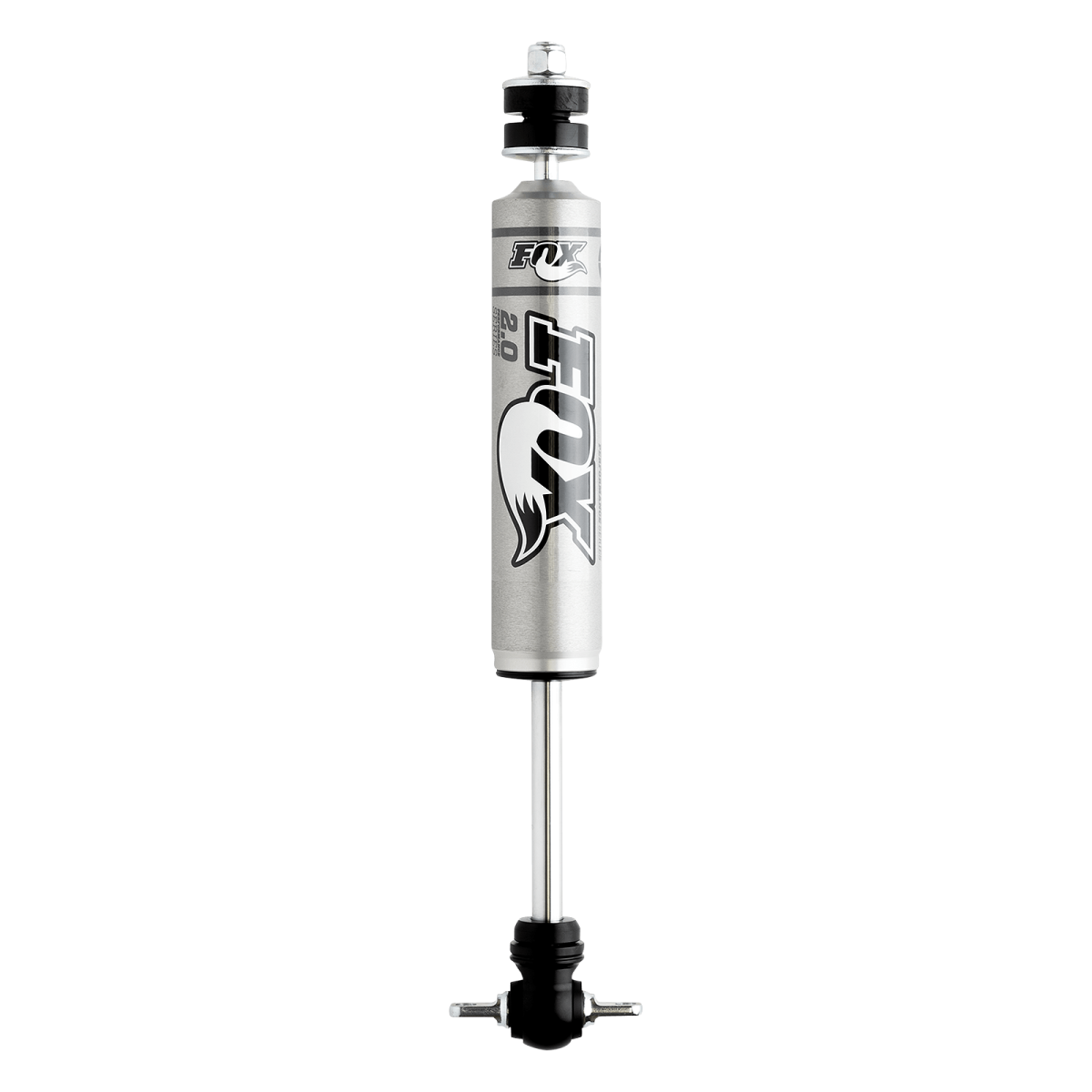

BDS FOX 2.0 IFP Front Shock | 0-2 Inch Lift | Performance Series | Jeep Wrangler TJ (1997-2006) & Cherokee XJ (1984-2001)

Overview

Upgrade the on-road comfort and off-road control of your Jeep Wrangler TJ or Cherokee XJ with FOX Performance Series 2.0 IFP front shocks. Designed to fit 0 to 2-inch lift applications, these shocks feature a mono-tube design with an internal floating piston (IFP) that separates the shock oil from a high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing the factory-tuned precision valving to deliver maximum, consistent performance. The precision-machined aluminum body increases cooling capacity and will not rust.

Features

• 2-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design eliminates oil aeration

Specifications

• Lift Height: 0–2"
• Type: Smooth Body IFP
• Position: Front
• Compressed Length: 13.55"
• Extended Length: 21.17"
• Travel Length: 7.62"
• Shaft Diameter: 5/8"
• Upper Mount Type: Stem
• Upper Mount Code: Stem
• Lower Mount Type: Bar Pin
• Lower Mount Code: BP1
• Finish: Clear-Anodized
• Adjustable Damping: No
• Gas Charged: No

Installation

• Estimated Installation Time: 1 hour
• Installation Difficulty: Easy
