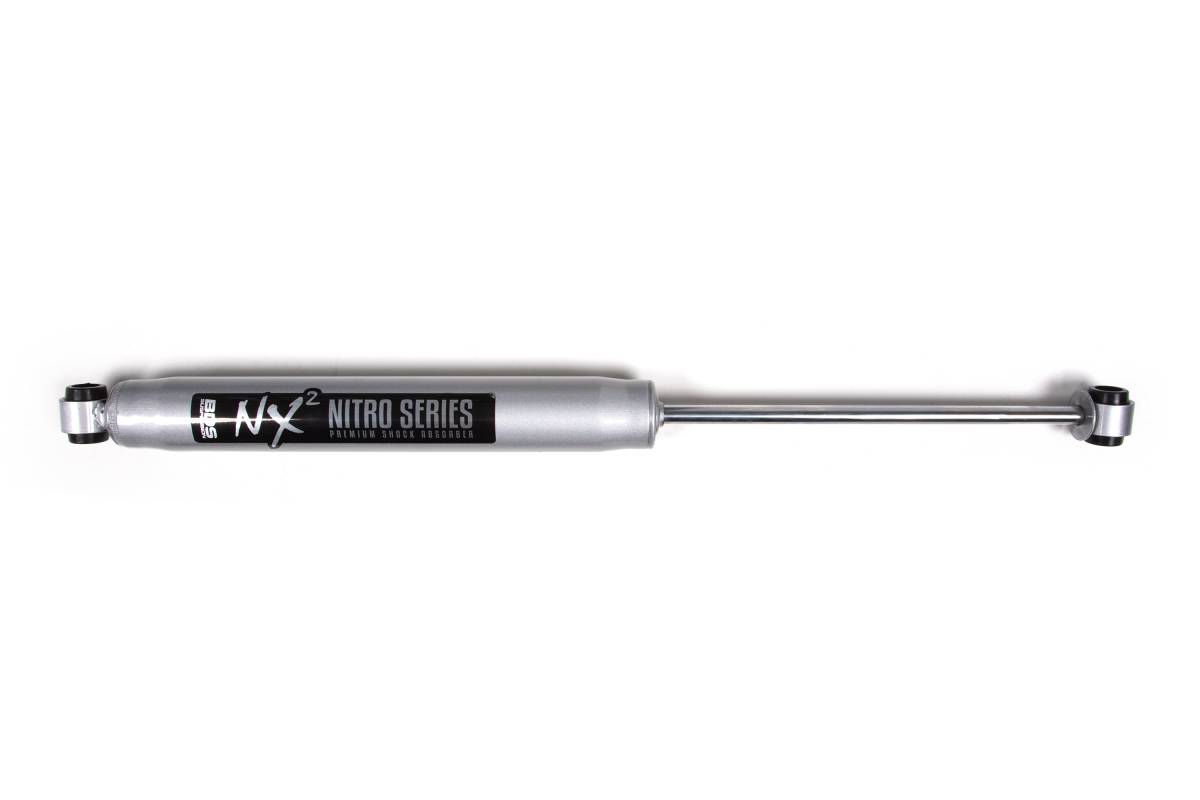

BDS NX2 Nitro Rear Shock | 4-6 Inch Lift | 2004-2020 Ford F150 & 1999-2016 F250/F350 Super Duty 4WD

Overview

Upgrade your 2004–2020 Ford F150 or 1999–2016 Ford F250/F350 Super Duty 4WD with BDS NX2 Nitro Series rear shocks, delivering high-end performance at an affordable price. Built around a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, these shocks provide lightning-fast damping response across all terrain types, on- or off-road. The 2-inch body houses a large 1-3/8-inch fluon-banded piston with self-lubricating seals and a 14mm hardened chrome shaft engineered to resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included for straightforward installation. Compatible with all current BDS lift kits and designed to work with 4- to 6-inch lift applications.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• 14mm hardened chrome shaft resists rock chips and corrosion
• Polyurethane bushings and metal sleeves included
• Compatible with all current BDS lift kits
• Finished in durable metallic silver paint with NX2 decals

Specifications

• Type: Twin Tube
• Gas Charged: Yes
• Adjustable Damping: No
• Shaft Diameter: 14mm
• Compressed Length: 19.27 inches
• Extended Length: 33 inches
• Travel Length: 13.73 inches
• Upper Mount Type: Eyelet (Code: EB1)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Metallic Silver
