BDS 3 Inch Lift Kit | FOX 2.5 Factory Coil-Over | Toyota Tacoma (2005-2023) 4WD | w/ FOX 2.0 Performance Series Rear Shocks

This configuration includes FOX 2.0 Performance Series rear shocks, providing a balanced combination of improved ride quality and off-road capability alongside the FOX 2.5 Factory Series front coil-overs.

Overview

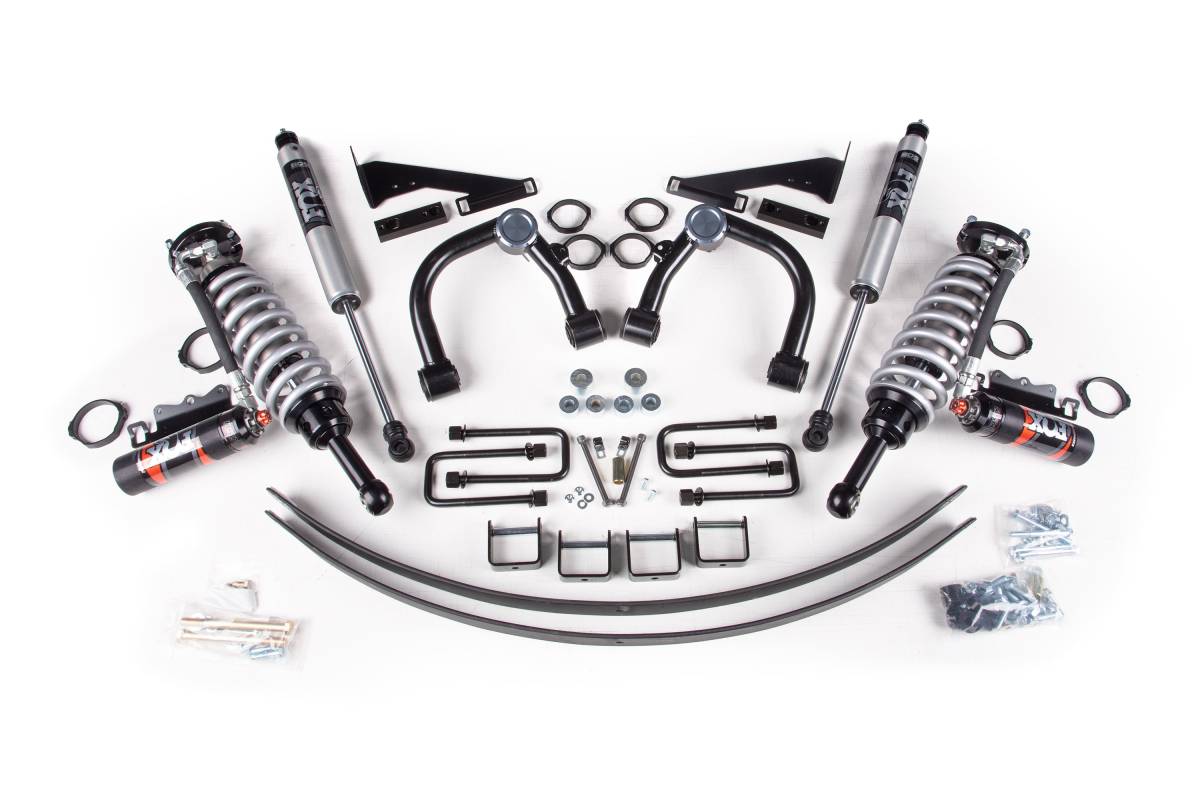

This 3-inch lift kit from BDS Suspension is designed for 2005–2023 Toyota Tacoma 4WD trucks and includes FOX Factory Series 2.5 coil-over shocks up front, paired with heavy-duty tubular upper control arms. The kit provides improved stance, performance, and capability with clearance for up to 33-inch tires. Up front, FOX 2.5 Factory Series remote reservoir coil-over shocks and HD tubular upper control arms are included along with 1-inch front differential spacers and longer hardware to reposition the front differential and maintain correct CV axle operating angles. In the rear, add-a-leaf springs provide 1 inch of lift to level the truck. A choice of rear shock options is available depending on desired off-road performance level.

Features

• FOX 2.5 Factory Series coil-overs offer improved damper performance over stock
• Performance upper control arms (UCAs) increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included (standard configuration)
• Optional FOX 2.5 Reservoir DSC rear shocks available for maximum off-road capability
• Factory Protection Plus drivetrain warranty included
• 100% bolt-on installation

Specifications

• Lift Height: 3 inches front / 1 inch rear (leveling add-a-leaf)
• Front Shocks: FOX 2.5 Factory Series remote reservoir coil-overs
• Upper Control Arms: 1.5-inch OD x .120-wall tubular construction with indexed ball joint cup
• UCA frame-end bushings: Durometer-specific rubber, maintenance-free
• UCA wheel-end: Greaseable ball joints
• UCA finish: Black powder coat with billet aluminum dust cap
• Front differential spacers: 1-inch with longer hardware included
• Rear lift: Add-a-leaf springs (1 inch of lift)
• Maximum tire size: Up to 33 inches

Installation

• Estimated Time: 4 hours
• Difficulty: Moderately Easy
• Tools Required: 35mm Axle Nut Socket, Cut-off Tool
